- Stock: In Stock
- Model: SCJ004065
- SKU: SCJ004065
Ask a Question About This Product
- Description
1. Input voltage: AC110V / 60Hz, Single Phase
2. Welding fume extractor r ated power: 300W
3. Welding fume extractor a ir flow: 220CFM
4. Noise: ＜60dB
5. Filtration effect: 0.5μm/99.99%
6. Mobile welding fume extractor – disposable filter

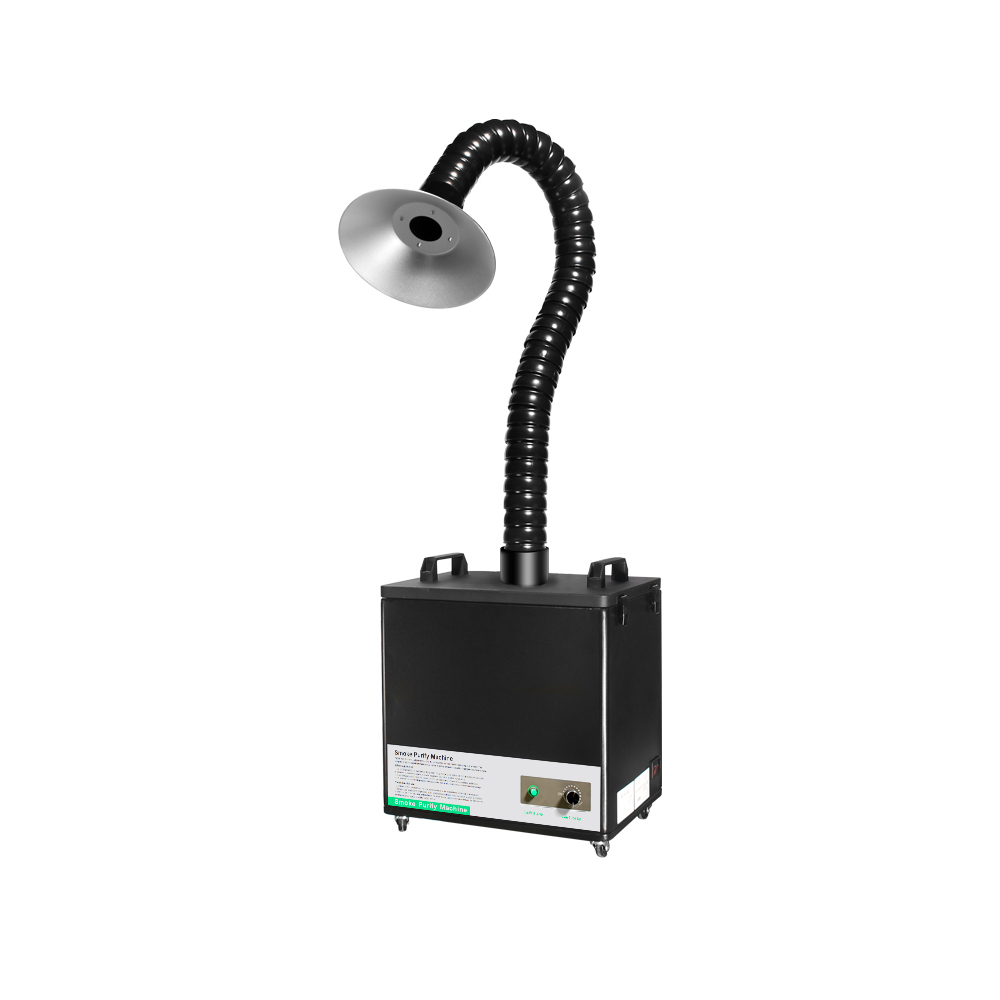

7. Portable mini fume extractor for soldering or laser marking & cutting
External power cord | 1 piece | L 70'', 5A/110V |
Bamboo-joint Type fume extraction pipe | 1 piece | Caliber: ￠ 2.95'' x L 55''
( Can be changed according to actual needs) |
Fume-collecting hood | 1 | ￠2.95'' connector |
Pre-filter cotton | 5 pieces | CF300A
(1 piece in the machine, the other 4 pieces in a PE bag) |
F8 pre-filter element | 1 | 14.88'' x 10.94'' x 2.16'' |
PP micro-dust filter element | 1 | 14.88'' x 10.94'' x 2.16'' |
Odor filter element | 1 | 14.88'' x 10.94'' x 2.16'' |
Product features

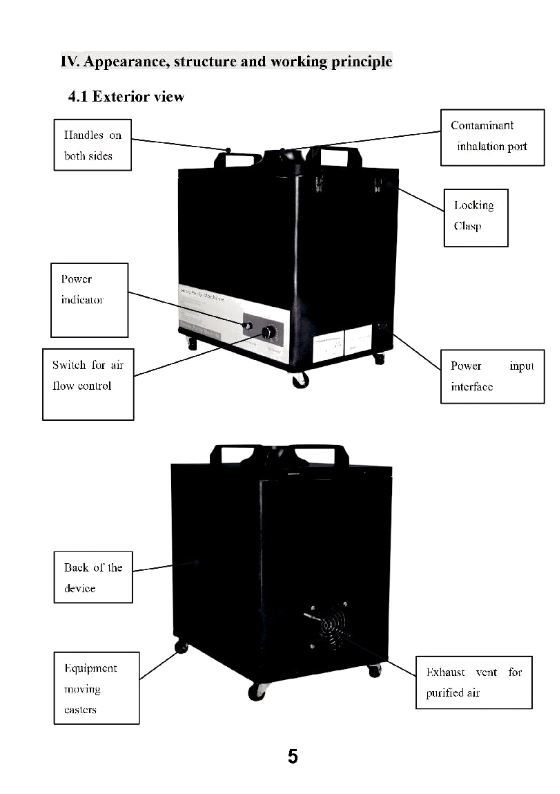

1. Appearance and structure
The appearance is simple and generous, stable and elegant. Integrated body design, metal frame structure, high-quality cold-rolled steel sheets with electrostatic spraying process, durable in use. With a brushed stainless steel panel,it is more classic, delicate and refreshing!
◆The top is equipped with a high-quality plastic handle, which is delicate, stable and reliable, and easy to carry.
◆With a unique curve design, the air inlet flange is more in line with the principle of fluid dynamics.
◆Thanks to the user-friendly stepless speed regulator, the air flow and suction size can be adjusted at will.
◆The compact size and easy mobility of the product eliminates the need for installation and contributes to a neat and attractive workspace.
2. Draught fan
◆It adopts DC brushless motor with built-in controller, which ensures better performance and quality.
◆Stable operation, low noise, high efficiency, low energy consumption and long working hours. No need for regular maintenance and lower costs.
◆The wind rotor adopts vortex type backward design and special alloy material, which effectively prevents the wind rotor from corrosion. The unique dynamic balance correction technology makes the wind rotor run more smoothly and reliably. Large air flow, big suction power, higher filtration rate.

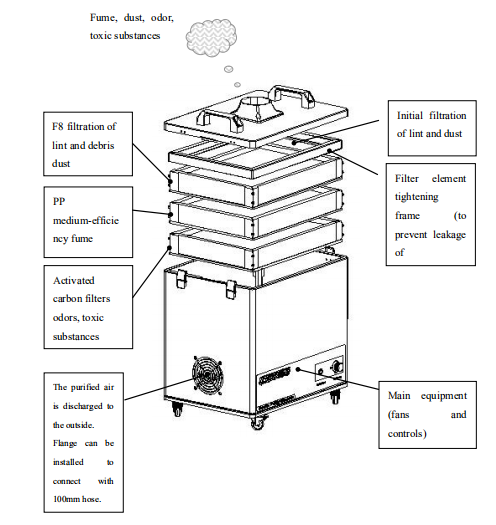

3. Filtration system
◆ Adopt quadruple filter design. Layer-by-layer filtration ensures that harmful fumes and dusts are filtered out more thoroughly. The purification rate is up to 99.99%.

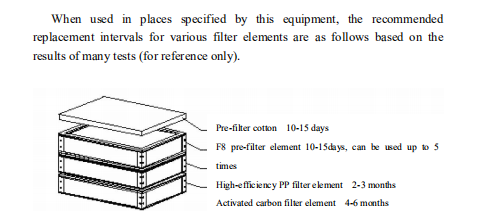

◆ Modular design with layers of protection. The pre-filter element, medium-efficiency filter element and high-efficiency filter element can be replaced separately, resulting in a longer service life and lower replacement cost
◆ The unique internal sealing structure, together with special sealing materials, allows all harmful substances to pass through the filtration system, thus resulting in higher filtration efficiency.
◆ The built-in circulating active filtration system avoids discharging cold/heating air from the room to the outside without disturbing the temperature and humidity environment of the operating area.
4. Fume-collecting device
The machine is equipped with a universal fume extraction arm, which can be freely redirected and positioned (length can be customized). The ends are fitted with new fume-collecting hoods that are uniquely shaped for greater smoking efficiency.
◆Simple installation, easy operation, no additional piping requirement.
