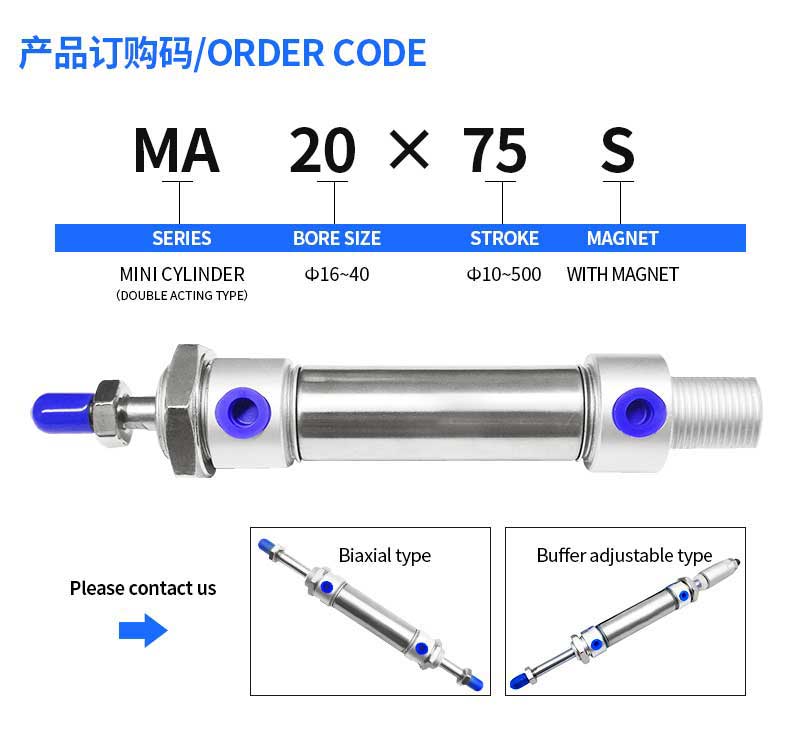

MA20X25 MA20X50 MA20X75 MA20X100 MA20X125 MA20X150 MA20X200 MA20X250 MA20X300 miniature Stainless steel cylinder
from
$8.40
Ex Tax: $8.40
- Stock: In Stock
- Model: SCJ007110
- SKU: SCJ007110
Products Sold: 0
Product Views: 173
Ask a Question About This Product
- Description
Product Description
Bore size (mm) | 20 | 25 | 32 | 40 | 50 | 63 | |
Acting type | MSAL,MTAL | Single acting | - | ||||
MAL,MALD,MALJ | Double acting | ||||||
MALC,MALCD,MALCJ | Double acting with cushion | ||||||
Fluid | Air(to be filtered by 40 μm filter element) | ||||||
operating presure | Double acting | 0.1~1.0Mpa(15~145psi)(1.0~10.0bar) | |||||
Single acting | 0.2~1.0Mpa(28~145psi)(2.0~10.0bar) | - | |||||
Proof pressure | 1.5Mpa(215psi)(15bar) | ||||||
Temperture | (-20~70) | ||||||
Speed range mm/s | Double acting:30~800 Single acting:50~800 | ||||||
Stroke tolerance | 0~150(0~+1.0)>150(0~+1.5) | ||||||
Cushion type | MALC,MXLCD,MALCJ:Adjustable cushion;others:Bumper | ||||||
Port size | 1/8" | 1/4" | |||||
