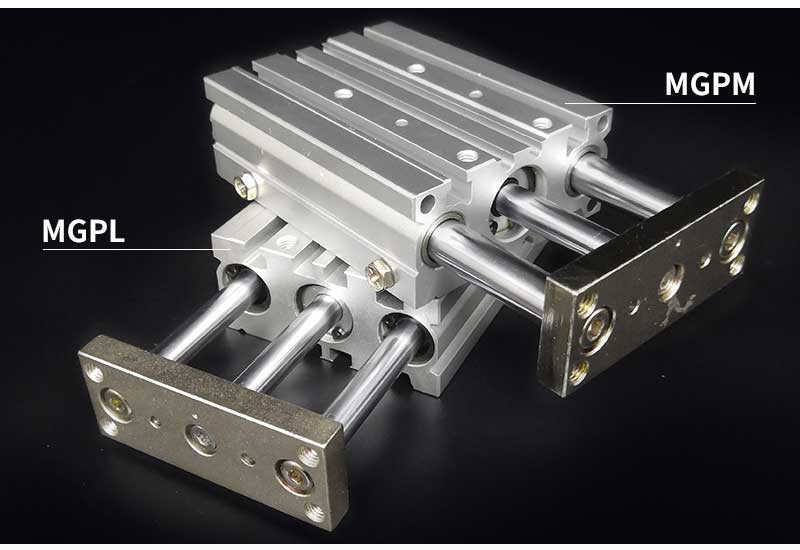

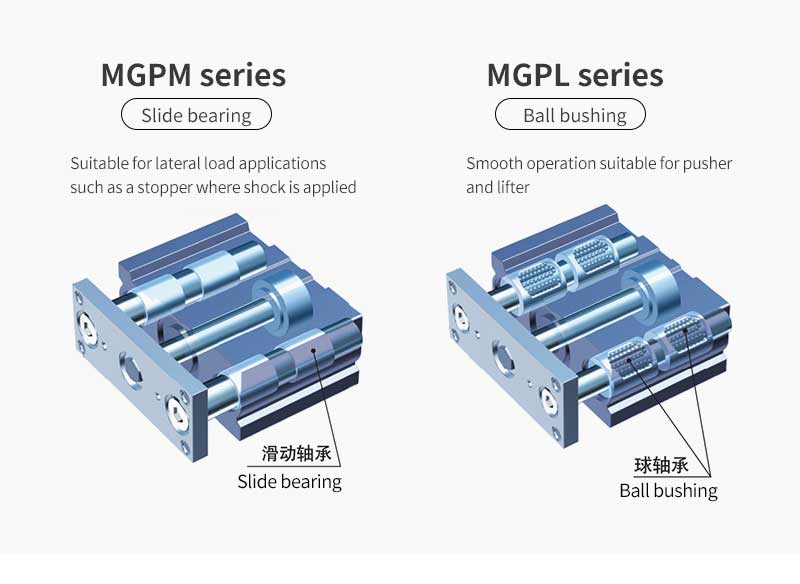

MGPM12X10 MGPM12X20 MGPM12X25 MGPM12X50 MGPM12X75 MGPM12X100 MGPM12X125 Tri-rod MGPL TCM TCL pneumatic cylinder
from
$57.79
Ex Tax: $57.79
- Stock: In Stock
- Model: SCJ007145
- SKU: SCJ007145
Products Sold: 0
Product Views: 92
Available Options
Ask a Question About This Product
- Specifications
Other attributes | |
Condition | New |
Place of Origin | Shanghai, China |
warranty: | 3 months |
Showroom Location | None |
Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction worksxa0, Energy & Mining, Advertising Company |
Marketing Type | New Product 2020 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |

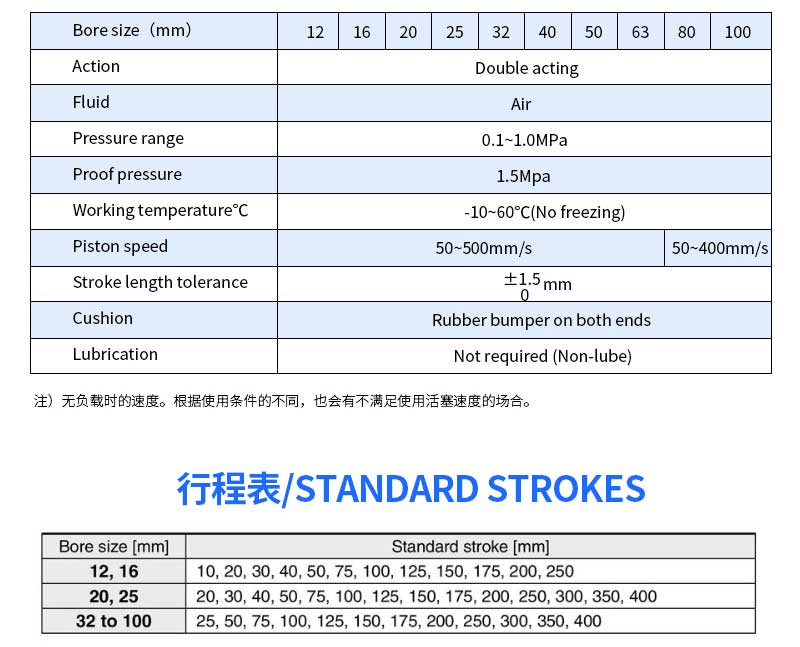

Operation Fluid | Air |
Anti-pressure testing pressure | 1.5Mpa(15.3kgf/c㎡) |
Operation Pressure | 1.5Mpa(15.3kgf/c㎡) |
Min Operation Pressure | 1.5Mpa(15.3kgf/c㎡) |
Ambient and fluid temperature | 5~+60℃ |
Bore size | 12--100 Mm |
Piston Speed | 50~500mm/s |
Buffer | Rubber Buffer |

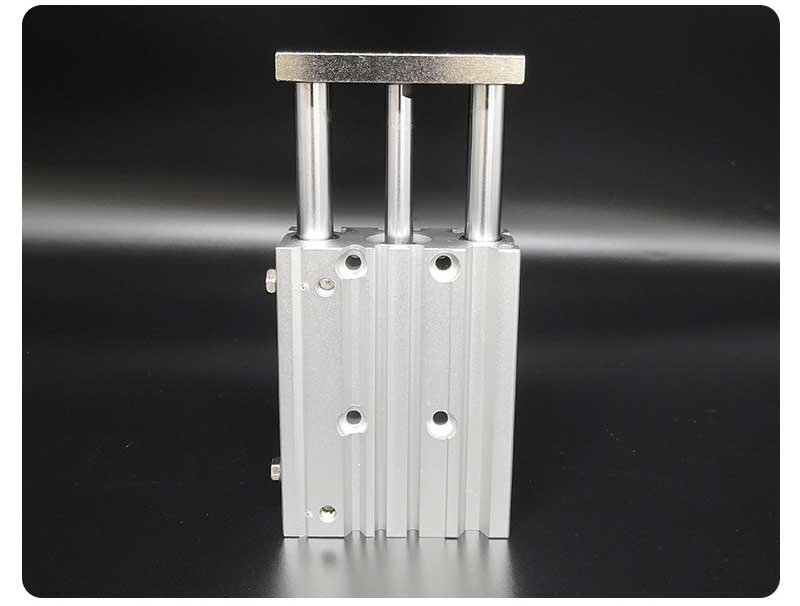

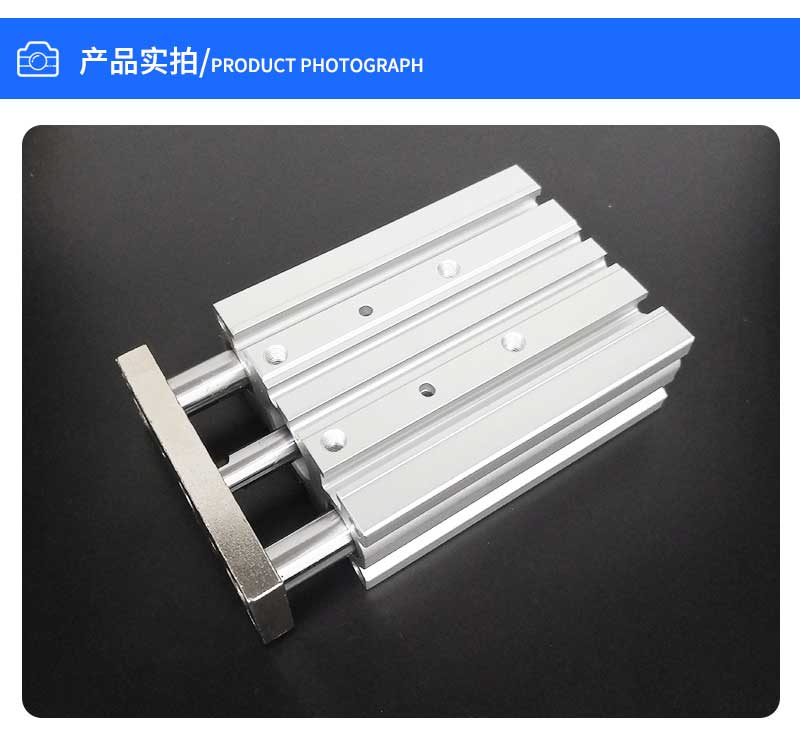

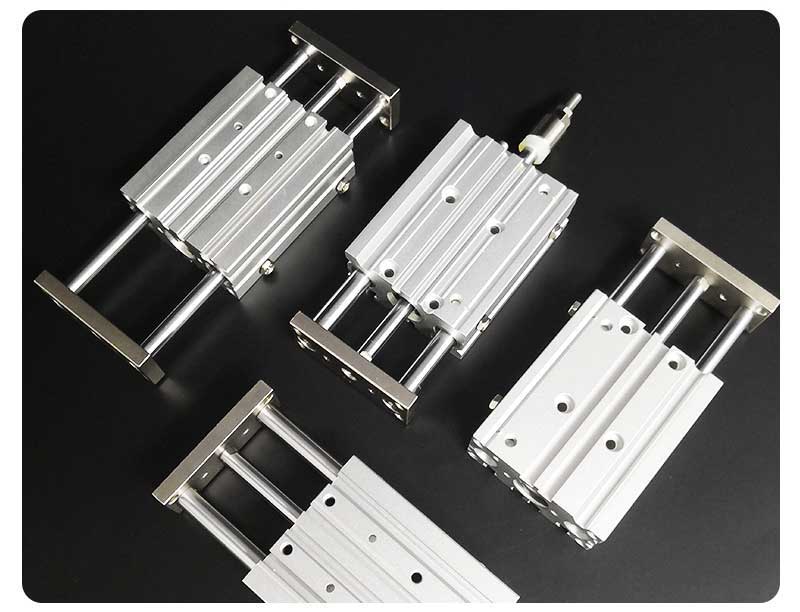

Product name: | MGPM Bore 12mm Tri-rod cylinder |
Type | Cylinder |
Operation | Double Acting |
Material | carton |
Packaging and delivery | |
Selling Units: | Single item |
Single package size: | 9.5X5.3X1.2 cm |
Single gross weight: | 1.300 kg |
Packaging Details | 20PCS/CARTON for MGPM Bore 12mm Tri-rod cylinder for MGPM Bore 12mm Tri-rod cylinder |
