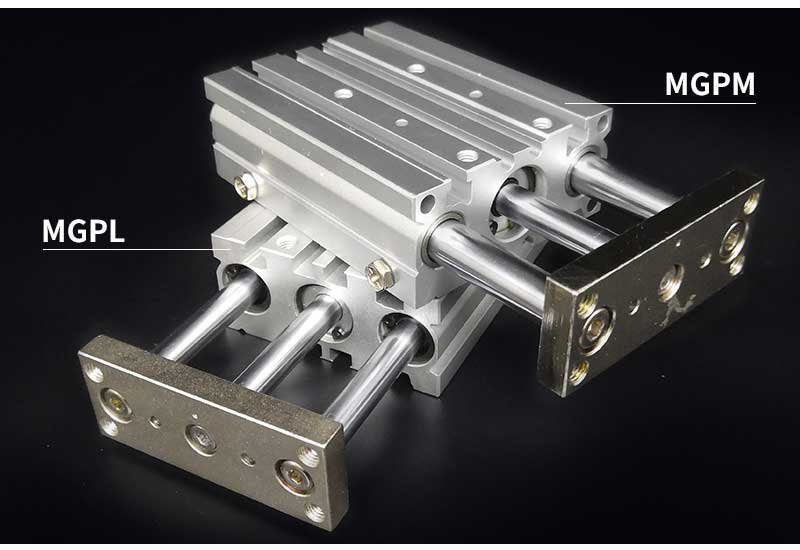

MGPM40X25 MGPM40X50 MGPM40X75 MGPM40X100 MGPM40X125 MGPM40X150 MGPM40X200 Tri-rod MGPL TCM TCL pneumatic cylinder

from

$232.67

Ex Tax: $232.67

Products Sold: 0

Product Views: 103

Maximum Stroke

500mm

Shaft Diameter

40mm

Model Number

Qty

Other attributes
Condition	New
Place of Origin	Shanghai, China
warranty:	3 months
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction worksxa0, Energy & Mining, Food & Beverage Shops
Standard or Nonstandard	Standard
Marketing Type	New Product 2020
Machinery Test Report	Not Available
Body Material:	Aluminum
Video outgoing-inspection	Provided
Operation Fluid	Air
Warranty of core components	Not Available
Core Components	cylinder
Anti-pressure testing pressure	1.5Mpa(15.3kgf/c㎡)
Power	Pneumatic
Operation Pressure	1.5Mpa(15.3kgf/c㎡)
Min Operation Pressure	1.5Mpa(15.3kgf/c㎡)
Ambient and fluid temperature	5~+60℃
Bore size	12--100 Mm
Piston Speed	50~500mm/s
Buffer	Rubber Buffer

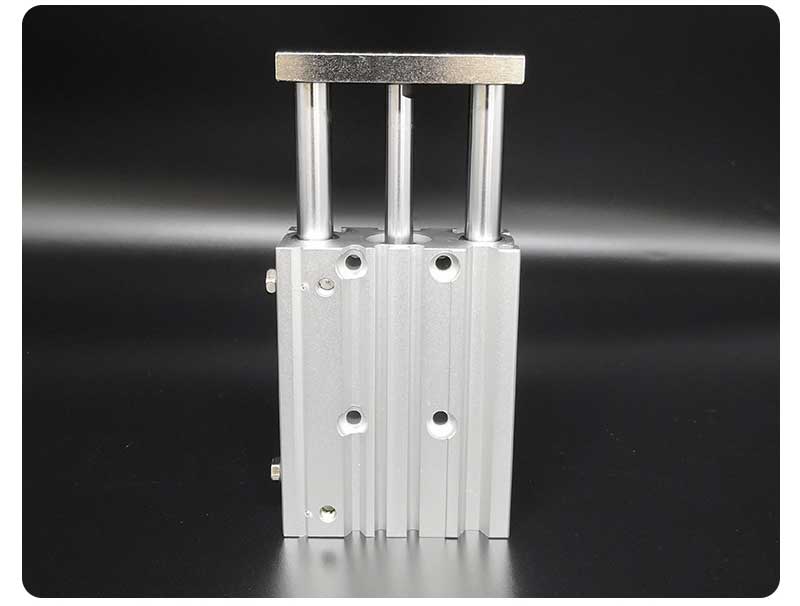

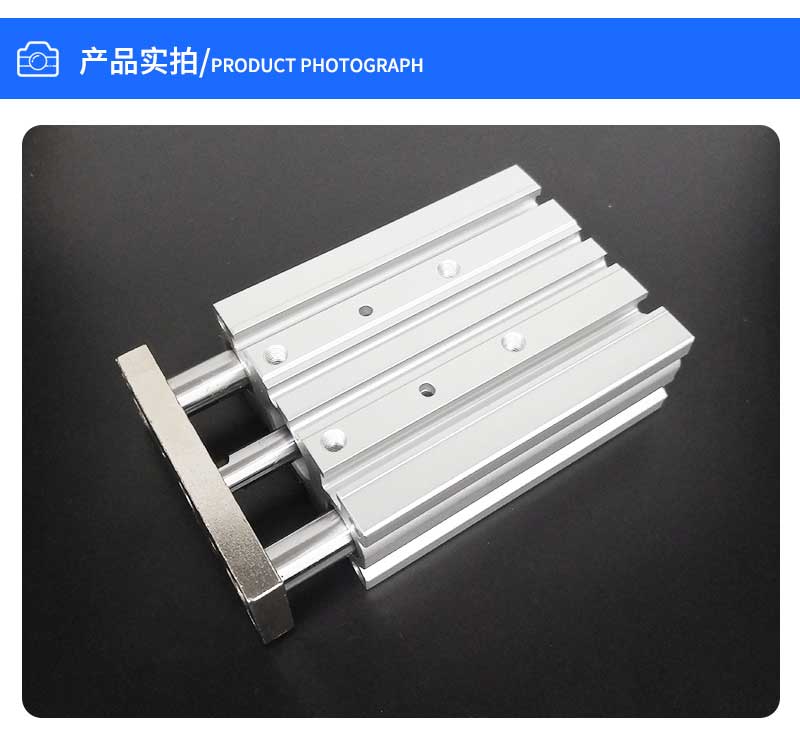

Product name:	MGPM Bore 40mm Tri-rod cylinder
Structure:	General Cylinder
Operation	Double Acting
Packaging and delivery
Selling Units:	Single item
Single package size:	9.5X5.3X1.2 cm
Single gross weight:	8.000 kg
Packaging Details	20PCS/CARTON for MGPM Bore 40mm Tri-rod cylinder
