- Description

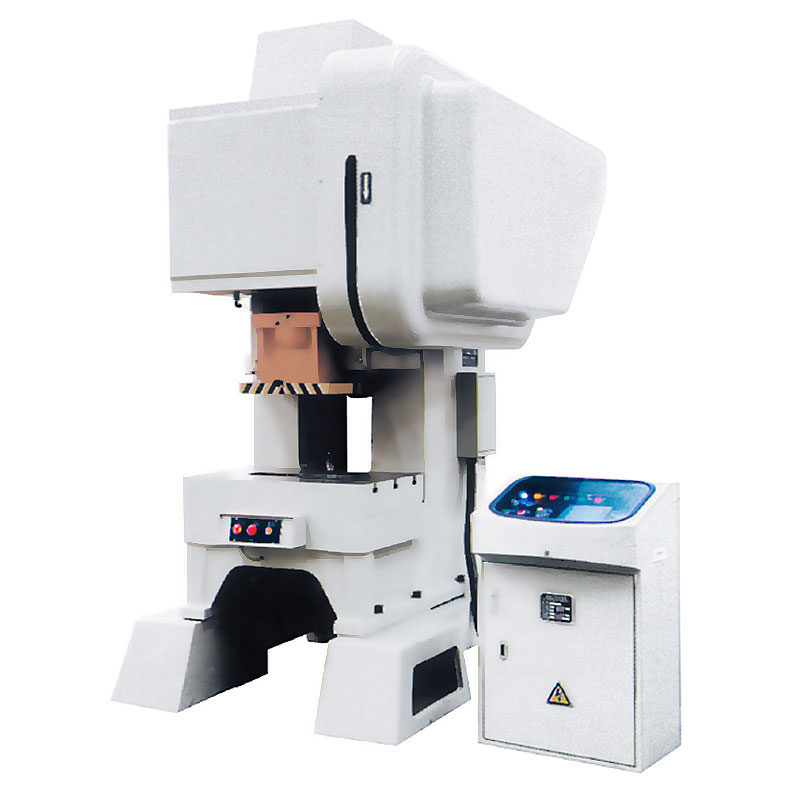

Performances and characteristics:
•Body adopts integrated special cast iron alloy,with relieving of internal stress through technology for heating processing,to ensure high precision,high rigidity,and anti-vibration.
•Sliders are designed in length,so as to guarantee operation precision and stability.
•Machine operation drive disk assembly adopts centralized detection and automatic forced lubrication systematic design,so as to realize real-time control and self-protection function.
•Adopt highly sensitive and reliable clutch/brake and internationally top duplex magnetic valve,to guarantee precision and safety for operation and stop of press rams.
•Through electric loop design meets European standard.
•Machine's structural design shall be reasonable,for the convenience of realizing automatic production,reducing cost,and improving efficiency.
Specification
Name | unit | APB-25 | APB-45 |
Capacity | Ton | 25 | 45 |
Stroke | mm | 30 | 30 |
Die height | mm | 200 | 240 |
Stroke per minute | s.p.m | 200-400 | 200-400 |
Slide adjustment | mm | 50 | 75 |
Slide area | mm | 300×245×50 | 460×340×70 |
Bolster area | mm | 530×310×70 | 720×460×80 |
Bed opening | mm | 300×160 | 360×200 |
Main motor | kw×p | VS2.2×4 | VS5.5×4 |
Max.weight of upper die | kg | 30 | 150 |
Presses dimension | mm | 1100×760×1800 | 1700×1000×2400 |
Presses Weight | kg | 1.8 | 3.7 |
Presses precision |
| GB(JIS)class | GB(JIS)class |
