- Stock: In Stock
- Model: SCJ004399
- SKU: SCJ004399
Ask a Question About This Product
- Description
1. Table Size: 6" x 18"
2. Motor: 2 HP, single-phase, 110V/220V (Prewired 110V), 18.88 A/9.44 A
3. Grinding Wheel: 7-3/32" D × 1-1/4" B × 15/32" W
4. Spindle Speed: 3360 RPM
5. Permanent magnetic chuck: 5-29/32" × 15-3/4"
6. Flood coolant system
7. Cast iron construction
A surface grinder is used to produce a smooth accurate finish on either metallic or nonmetallic materials. It uses a round rotating abrasive grinding wheel that remains stationary (but rotating) while the feed table (with work attached) is run in a reciprocating motion (left and right) under the grinding wheel. The specific amount of material to remove is determined by lightly touching off on the work with the grinding wheel rotating and feeding the grinding head down a certain distance. You will most likely need a surface grinder if you need to provide precision ground surfaces, either for a high surface finish or attaining critical dimensions.

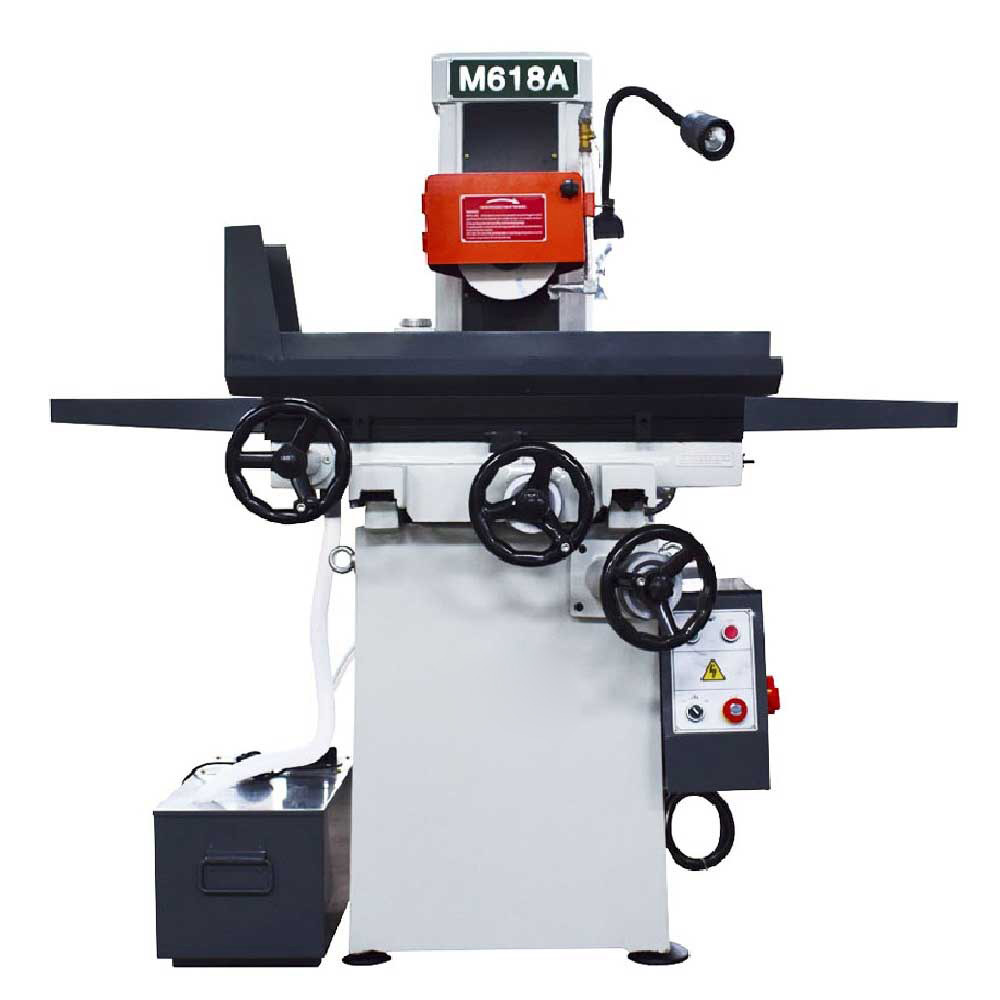

The M618 surface grinder is good for grinding precision parts in hardened or annealed ferrous metals. The surface grinder features heavy cast iron construction, precision spindle, ball bearing longitudinal slide, coolant system and more. Balance the grinding wheel with the supplied kit.
Features:
Flood Coolant System
Column Dial
Cross Feed Dial
Cast-Iron Cabinet
One Shot Lubrication
Power Indicator Lights
Ball Bearing Longitudinal Slide
Work Light
Splash Guard

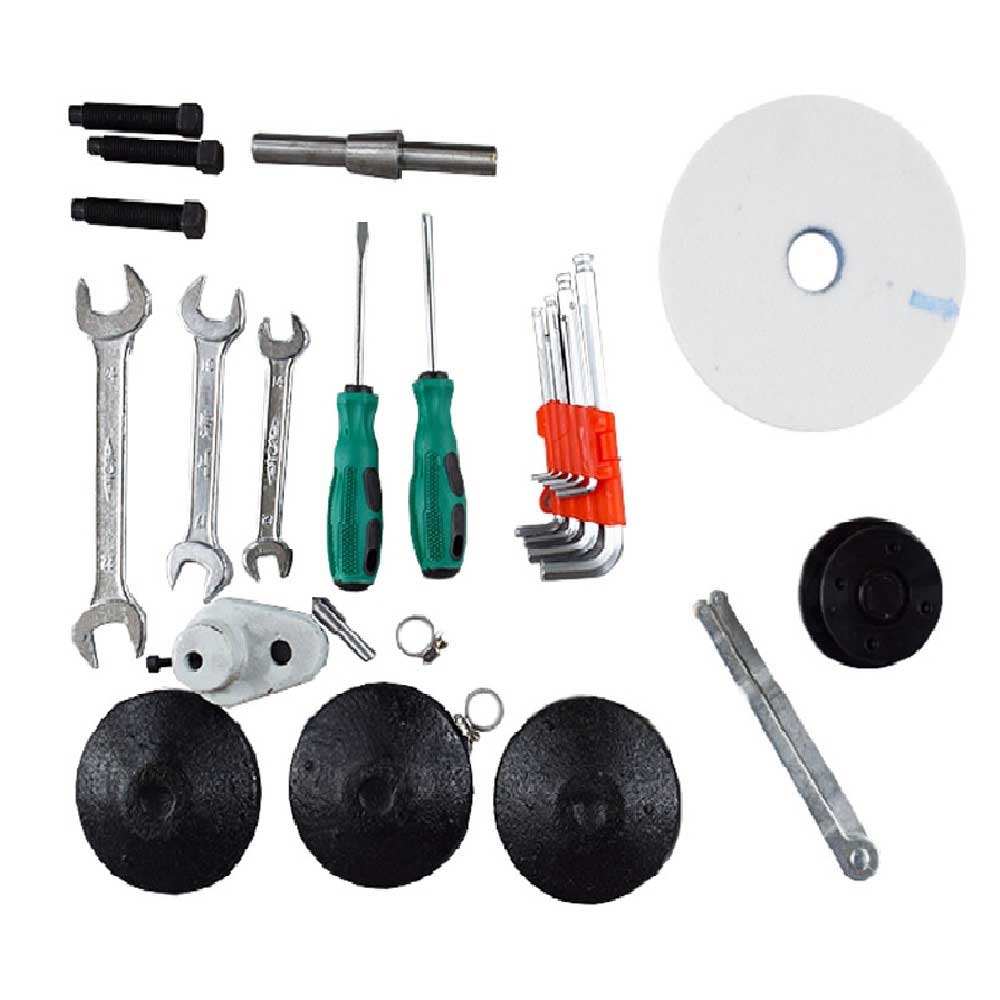

Accessories Included:
Permanent Magnetic Chuck
Grinding Wheel
Dressing Diamond with Mount
Grinding Stone Balance Kit
Leveling Pads
Toolbox with Wrenches
W A R N I N G - If a grinding wheel is permitted to exceed the maximum safe speed, it may disintegrate and cause injury to the operator and damage to the grinding machine!
