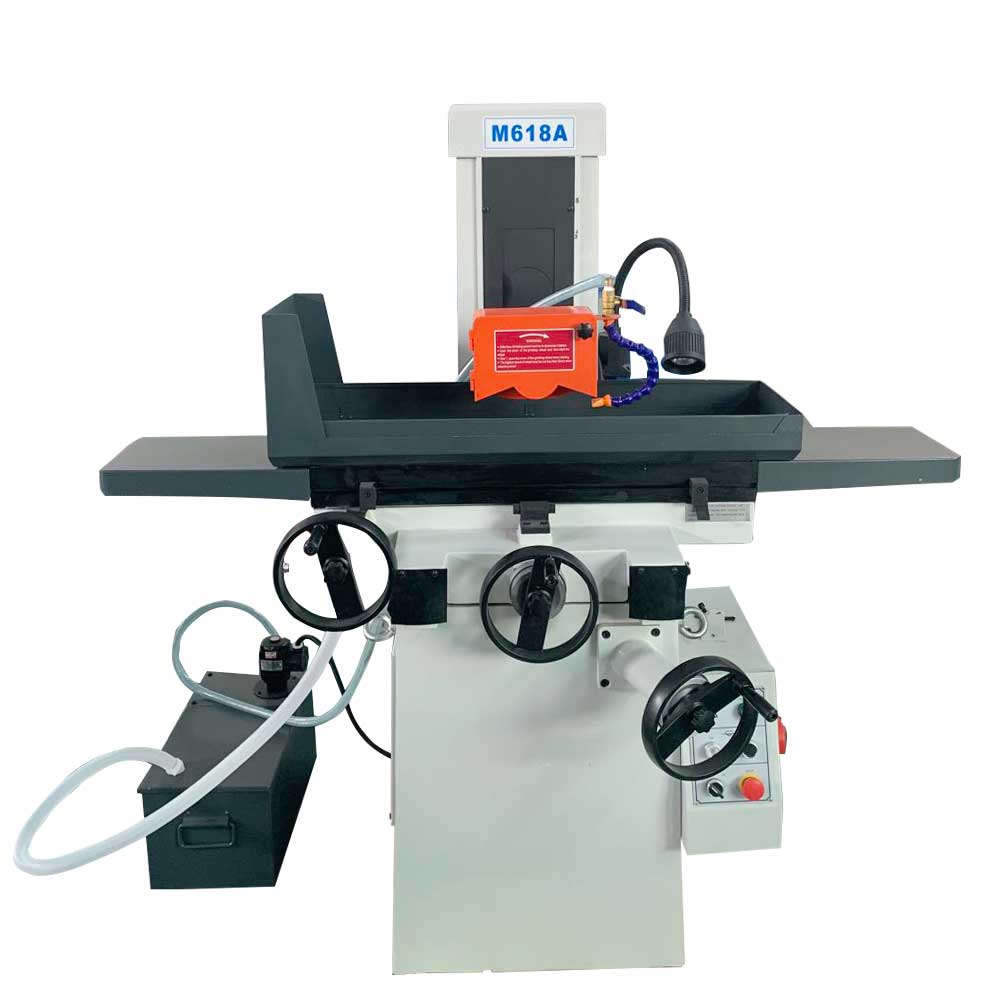

Manual Surface Grinder 7" x 18" 1 Phase 110V/220V 1.5HP/2HP

Buy Now

Specifications

attribute-list
Model	M618A
Table Surface	7" x 18"
Prewired	110V
Longitudinal travel	7.5"
Cross travel	19.6"
Maximum distance table to wheel	13.1"
T-slot and size	1 x 0.055"
Grinding wheel	7.09" x 0.51" x 1.25"
Overall dimensions	61" x 45.2" x 62.6"
Wheel speed	3400
Approximate shipping weight	1543 lbs.
MOTOR	1.5HP/2HP,110/220V, single-phase,18.88A/9.44A

Description

About this product

1. Manual Surface Grinder Table surface: 7" x 18".

2. Manual Surface Grinder Longitudinal travel: 7.5".

3. Manual Surface Grinder Maximum distance table to wheel: 13.1".

4. Manual Surface Grinder Approximate shipping weight: 1543 lbs.

5. Manual Surface Grinder Motor: 1.5HP/2HP,110/220V, single-phase,18.9A/9.4A.

Instruction

The machine has reasonable structure, adopting cross saddle structure, good rigidity, beautiful appearance, convenient operation.

The working table adopts ballscrew and synchronous belt which can achieve stable running, high productivity.

Adopts antifriction bearing.

Every model can be equipped with digital readout system according to the customer’s demands.

Motor: 1.5 HP/2 HP,110/220V, single-phase,18.9A/9.4A

Table surface: 7" x 18"

Longitudinal travel: 7.5"

Cross travel: 19.6"

Maximum distance table to wheel: 13.1"

T-slot and size: 1 x 0.055"

Grinding wheel: 7.09" x 0.51" x 1.25"

Overall dimensions: 61" x 45.2" x 62.6"

Wheel speed: 3400

Approximate shipping weight: 1543 lbs.
