Manual Surface Grinder 8 In. X 20 In. 110V / 220V

Buy Now

Specifications

attribute-list
Voltage	1Phase 110V / 3Phase 220 V
Operation Type	Manual
Table size:	8" × 20"
Amps	4.4 A
Longitudinal travel	20-55/64"
Phase	1 or 3
Cross travel	8-21/32"
Hz	60
HP	1.5
Spindle RPM	3440
T-slot and size	15/32" stud
Overall dimensions	53-5/32" L × 45-43/64" W × 77-11/64" H
Maximum Distance Table To Spindle Center	19-19/64"
Approximate shipping weight	1765 lbs
Spindle Diameter	1-1/4"
Vertical Handwheel Graduation	0.0002"
Vertical Handwheel Revolution	0.05"
Crossfeed Handwheel Graduation	0.0005"
Crossfeed Handwheel Revolution	0.1"
Permanent Magnetic Chuck	7-7/8" × 15-3/4"
Grinding Wheel Size	7-7/8" D × 1-1/4" B × 5/8" W

Description

About this product

1. Table Size: 8" × 20"

2. Motor: 1.5 HP, 1 Phase 110V(Could change to 3 Phase, 220 V, 4.4 A）

3. Grinding Wheel: 7-7/8" D × 1-1/4" B × 5/8" W

4. Spindle Speed: 3440 RPM

5. Permanent magnetic chuck: 7-7/8" × 15-3/4"

6. Flood coolant system

7. Cast iron construction

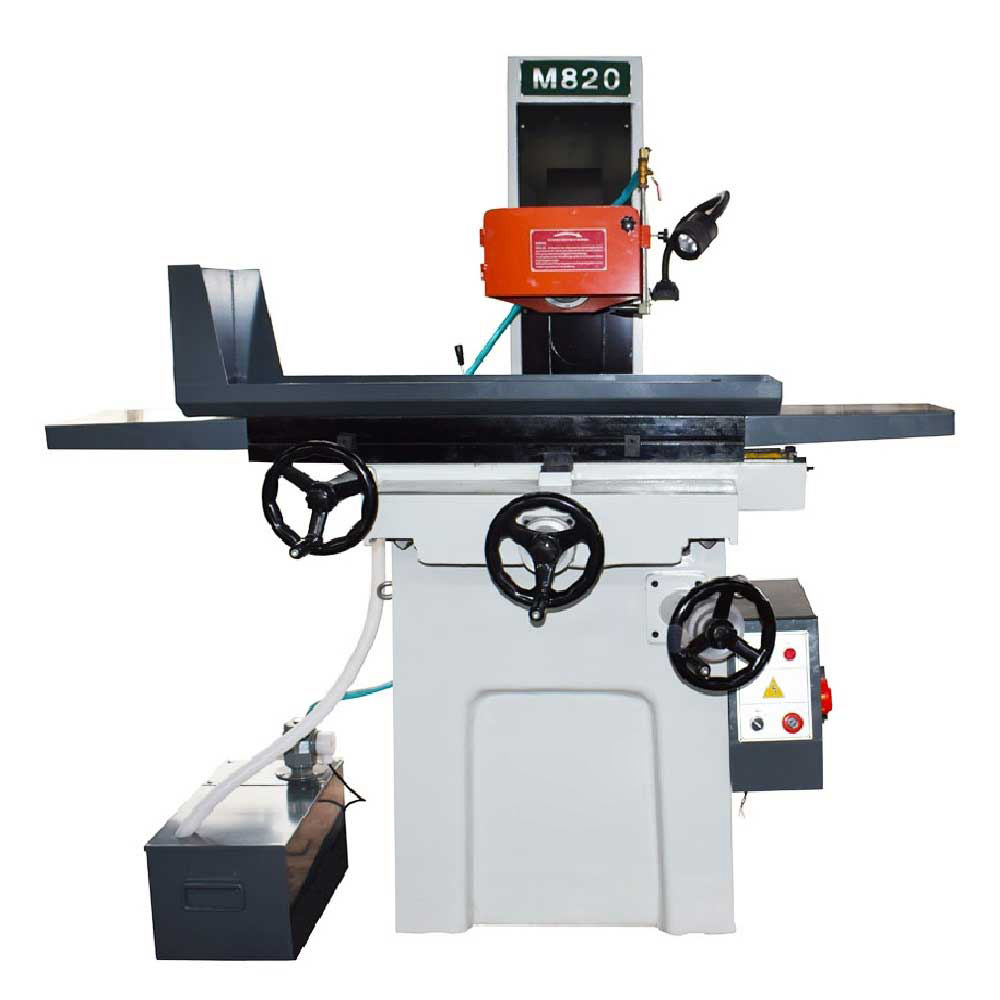

The M820 surface grinder is good for grinding precision parts in hardened or annealed ferrous metals. The surface grinder features heavy cast iron construction, dependable precision spindle, ball bearing longitudinal slide, coolant system and more. Balance the grinding wheel with the supplied kit.

Features:

Flood Coolant System

Column Dial

Cross Feed Dial

Cast-Iron Cabinet

One Shot Lubrication

Power Indicator Lights

Ball Bearing Longitudinal Slide

Work Light

Splash Guard

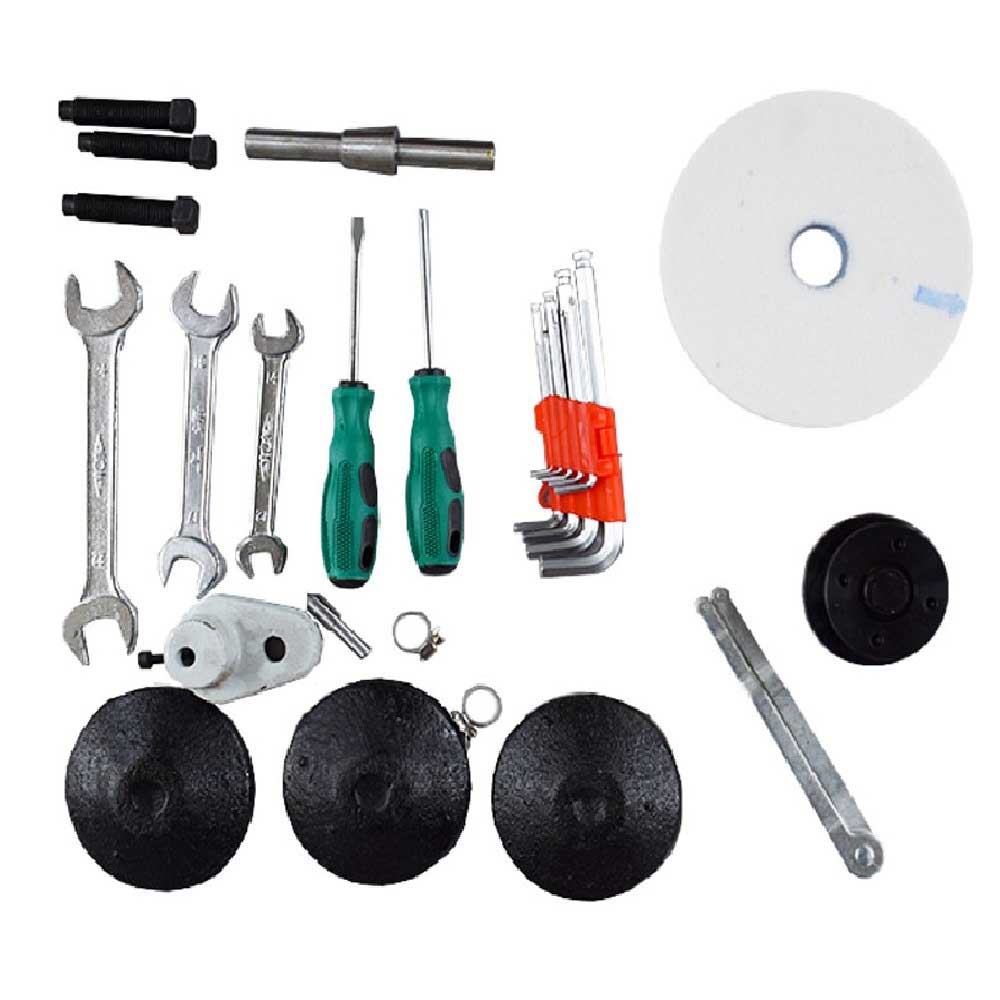

Accessories Included:

Permanent Magnetic Chuck

Grinding Wheel

Dressing Diamond with Mount

Grinding Stone Balance Kit

Leveling Pads

Toolbox with Wrenches
