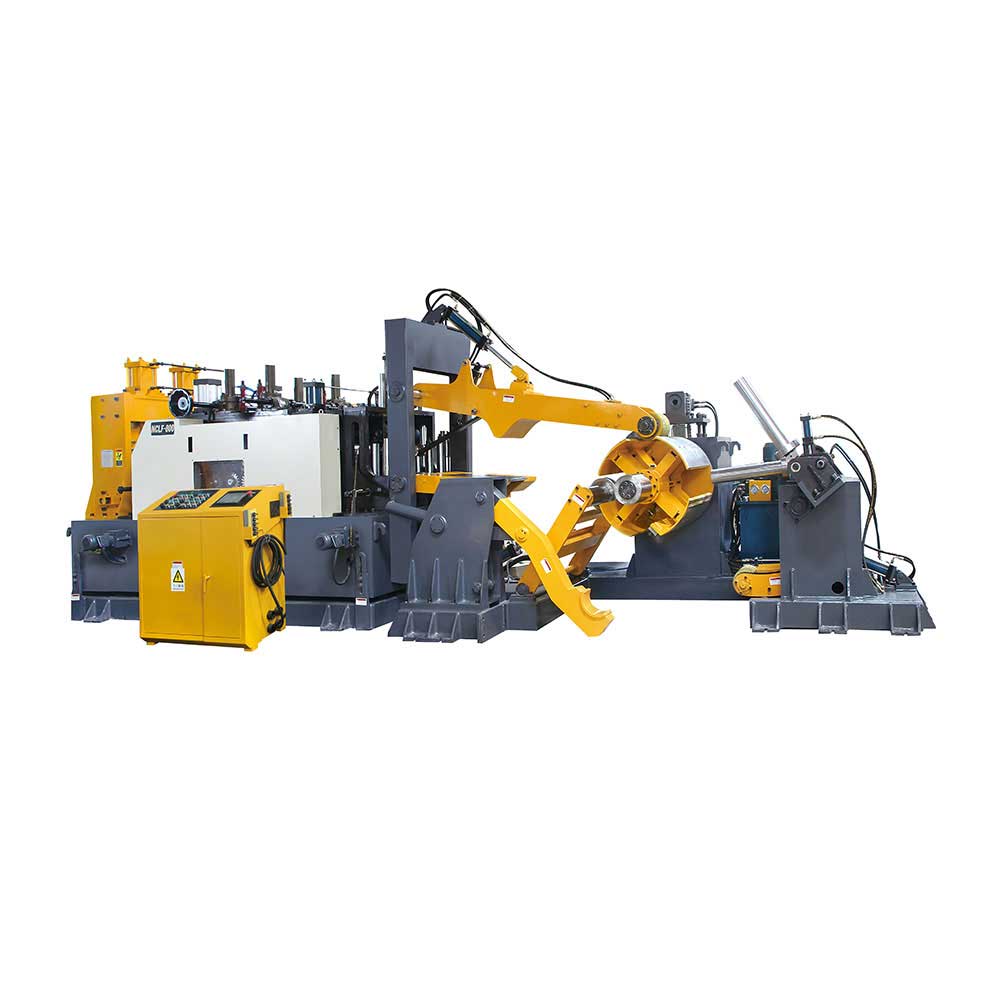

Metal Cutting Press Auto Feeding Device With Straightener And Uncoiling Feeder Machine
from
$48,000.00
Ex Tax: $48,000.00
5 or more $46,000.00
- Stock: In Stock
- Model: SCJ006874
- SKU: SCJ006874
Products Sold: 0
Product Views: 103
Available Options
Ask a Question About This Product
- Specifications
Other attributes | |
Condition | New |
Place of Origin | Guangdong, China |
Weight (KG) | 12000 |
warranty: | 1 Year |
Key Selling Points | High Productivity |
Use | Sheet |
Showroom Location | India, Malaysia |
Applicable Industries: | Manufacturing Plant, Other |
Marketing Type | Ordinary Product |
Machinery Test Report | Not Available |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | PLC, Motor |
Material thickness | 2-9mm |
Power | 11kw |
Material Width | 70-1600mm |
Voltage | 3 Phase 220V/380V/50HZ |
Dimension(L*W*H) | 5000*1520*2300mm |
Inner diameter | 460-530mm |
Max. weight | 5 ton |
outer diameter | 1400mm |
After-sales Service Provided | Online support |
Type | Straightener Feeder & Uncoiler |
Usage | Metal Sheet Strip Coil |
Weight | 12 TON |
Color | Customers' Requirement |
Certificate: | CE Certificate |
Packaging and delivery | |
Packaging Details | plywood box, plywood pallet. |
Port | SHENZHEN |
Supply Ability | |
Supply Ability | 30 Set/Sets per Month |
- Description
Product Description
Basic parameters | |

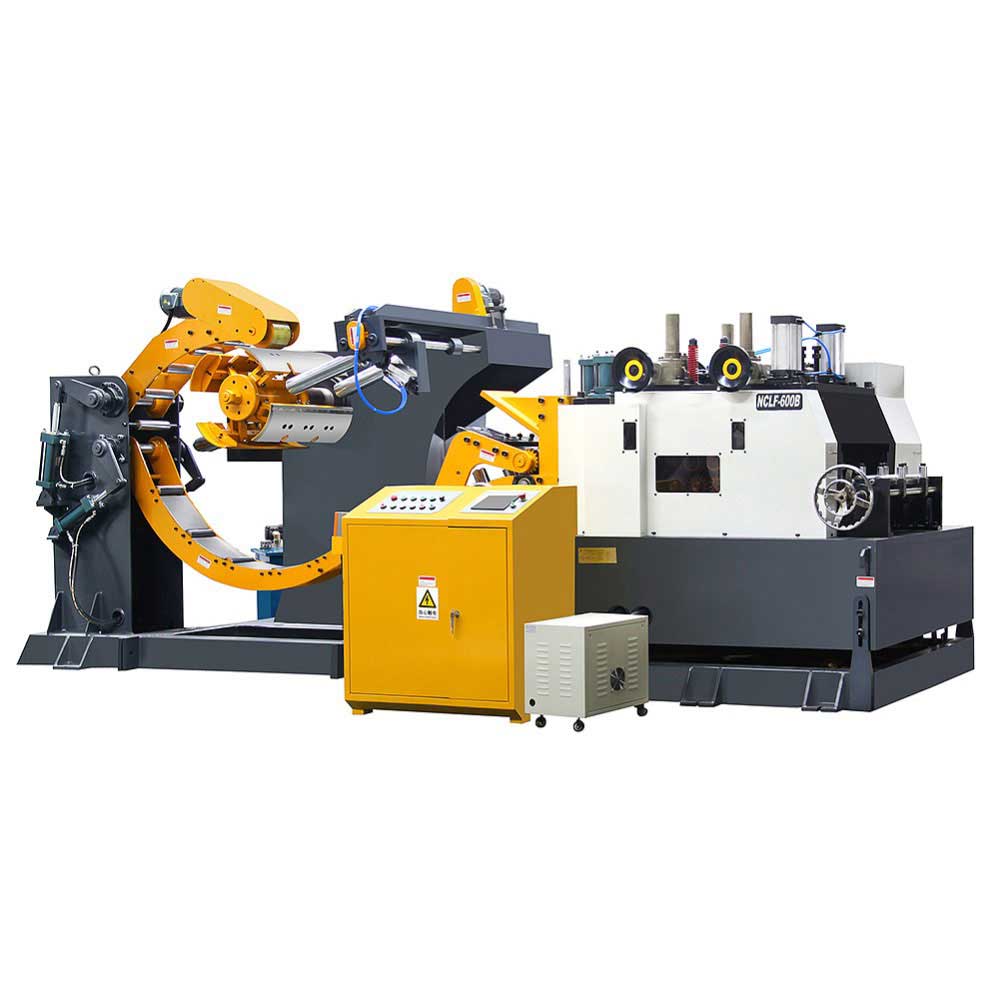

Model | NCLF-600B |
Width of the material | 70mm~600mm |
Thickness of the material | 2.0mm~8.0mm |
Inside coil diameter | Φ460mm~Φ530mm |
Max.coil outside diameter | Φ1600mm |
Max.coil weight | 5 ton |
Straightening roll diameter | Φ120mm×7(upper*4/lower*3) |
Material of straightening roll | GCr15(HRC58-62) |
Feeding roll diameter | Φ136mm |
Decoiler power | 5.5Kw |
Straightening power | 11Kw |
Feeding speed | 0~20m/min |
Feed Pitch accuracy | <±0.2mm |
Other configuration | |
Straightening adjustment type | Eccentric shaft adjust by worm and gear |
Load material type | coil car |
Feeding line adjust | Electric |
Hold down arm device | By pneumatic |
Auto threading table device | By hydraulic |
Coil keeper adjust width | Manual |
Front coil keeper adjust open | Pneumatic |
Coil width guide at the straightener | Two hand-wheel adjusted |
Coil tip de-bender device | Hydraulic |
Operation control mode | Main control cabinet + action unit remote control switch |
Coil end detect sensor | With |
Other technical data | |
Operating air | 0.5Mpa |
Operating hydraulic | 7Mpa |
voltage | 3phase 380V |
Feed Level from floor | 1100mm-1300mm |
Input material type | From down to up |
Delivery side | From left to right |
Equipment length(Not included outlet shelf) | ≈5.0m |
STANDARD ACCESSORY
1. Electric eye loop control system
2. Outgoing catenary to assist and support the material
3. Feed and Straightener rolls with a hard chrome finished
4. Feeding line easily adjusts by advance worm gear screw jacks device
5. Straightener adjusts by advance worm gear screw jacks device
6. Left/right swing tension roll support device
7. Reference indicator adjsuter
8. Coil material entry support assembly
9. Straightener opener device
10. Hold down arm device
11. A cluster gear set maximizes transmission of horsepower
12. Transformer
13. PLC Control Feeding program from mitusbishi
OPTION
1. Coil car
2. Shearing machine
