Metal Sheet Machine Combination Decoiler Straightener And 3 In 1 Servo Feeder Uncoiling Straightener And Feeder
from
$41,200.00
Ex Tax: $41,200.00
3 or more $39,500.00
10 or more $37,800.00
- Stock: In Stock
- Model: SCJ006826
- SKU: SCJ006826
Products Sold: 0
Product Views: 101
Ask a Question About This Product
- Description
Product Description
| Basic parameters | |
| Model | NCSF-400B/600B/800B/1000B |
| Material Width | 70~1000mm |
| Thickness of the material | 1.0~6.0mm |
| Coil inner diameter | Φ460mm~Φ530mm |
| Max.coil outer diameter | Φ1400mm |
| Max.coil weight | 5T/7T |
| Straightening roll diameter | Φ88mm×7(upper*4/lower*3) |
| Material of straightening roll | GCr15(HRC58-62) |
| Feeding roll diameter | Φ120mm |
| Decoiler power | 2.2/3.7Kw |
| Straightening power | 5.5/7.5/11Kw |
| Feeding speed | 0~20m/min |
| Feed Pitch accuracy | <±0.2mm |
| Other configuration | |
| Straightening adjustment type | Eccentric shaft adjust by worm and gear |
| Load material type | coil car |
| Feeding line adjust | Electric |
| Hold down arm device | By pneumatic |
| Auto threading table device | By hydraulic |
| Coil keeper adjust width | Manual |
| Front coil keeper adjust open | Pneumatic |
| Coil width guide at the straightener | Two hand-wheel adjusted |
| Coil tip de-bender device | Hydraulic |
| Operation control mode | Main control cabinet + action unit remote control switch |
| Coil end detect sensor | With |
| Other technical data | |
| Pneumatic pressure | 0.5Mpa |
| Hydraulic pressure | 7Mpa |
| voltage | 3phase 380V |
| Feed Level from floor | 1050mm-1250mm |
| Input material type | From down to up |
| Standard direction | From left to right |
| Equipment length(Not included outlet shelf) | ≈4.5m |
STANDARD ACCESSORY
1. A cluster gear set maximizes transmissions of horsepower
2. Outgoing catenary to assist and support the material
3. Feed and Straightener rolls with a hard chrome finished
4. Feeding line easily adjusts by advance worm gear screw jacks device
5. Straightener adjusts by advance worm gear screw jacks device
6. Left/right swing tension roll support device
7. Reference indicator adjsuter
8. Coil material entry support assembly
9. Straightener opener device
10. Hold down arm device
11. Electric Eye Loop Control System
12. Transformer
13. PLC Control Feeding program from mitusbishi
OPTION
1. Coil car
2. Shearing device

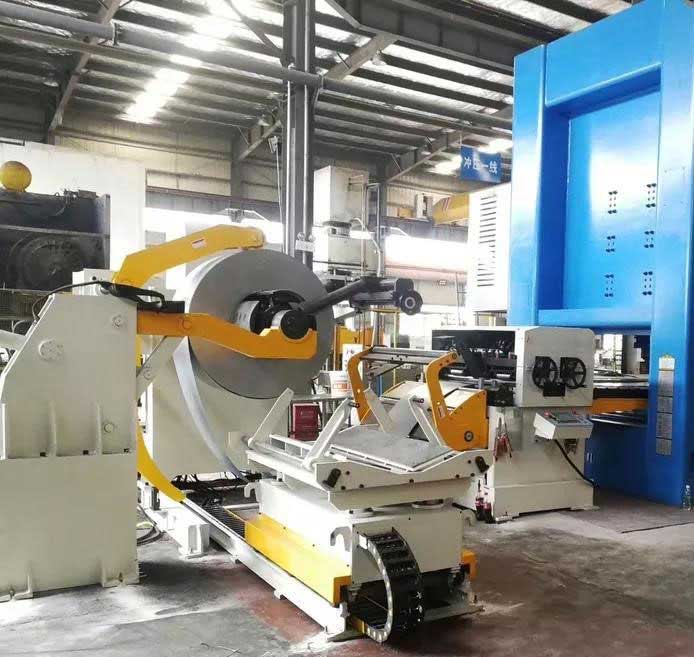

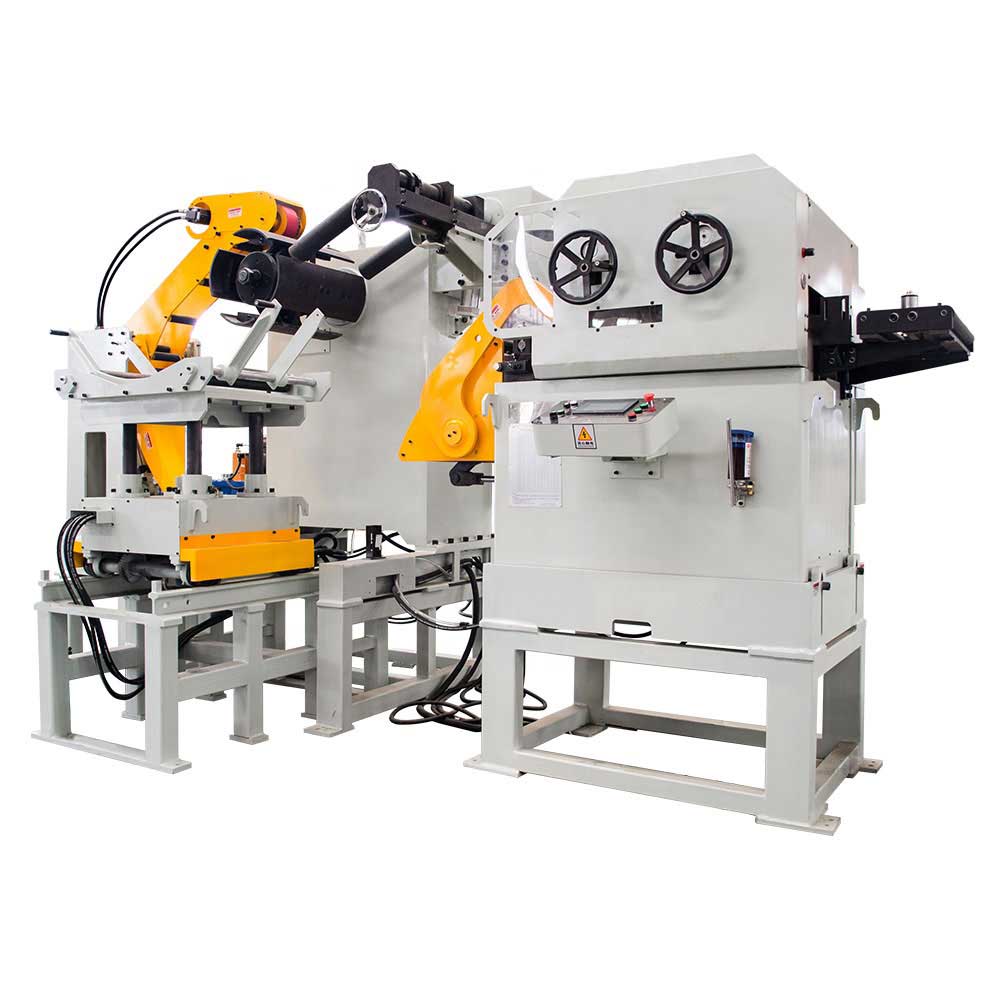

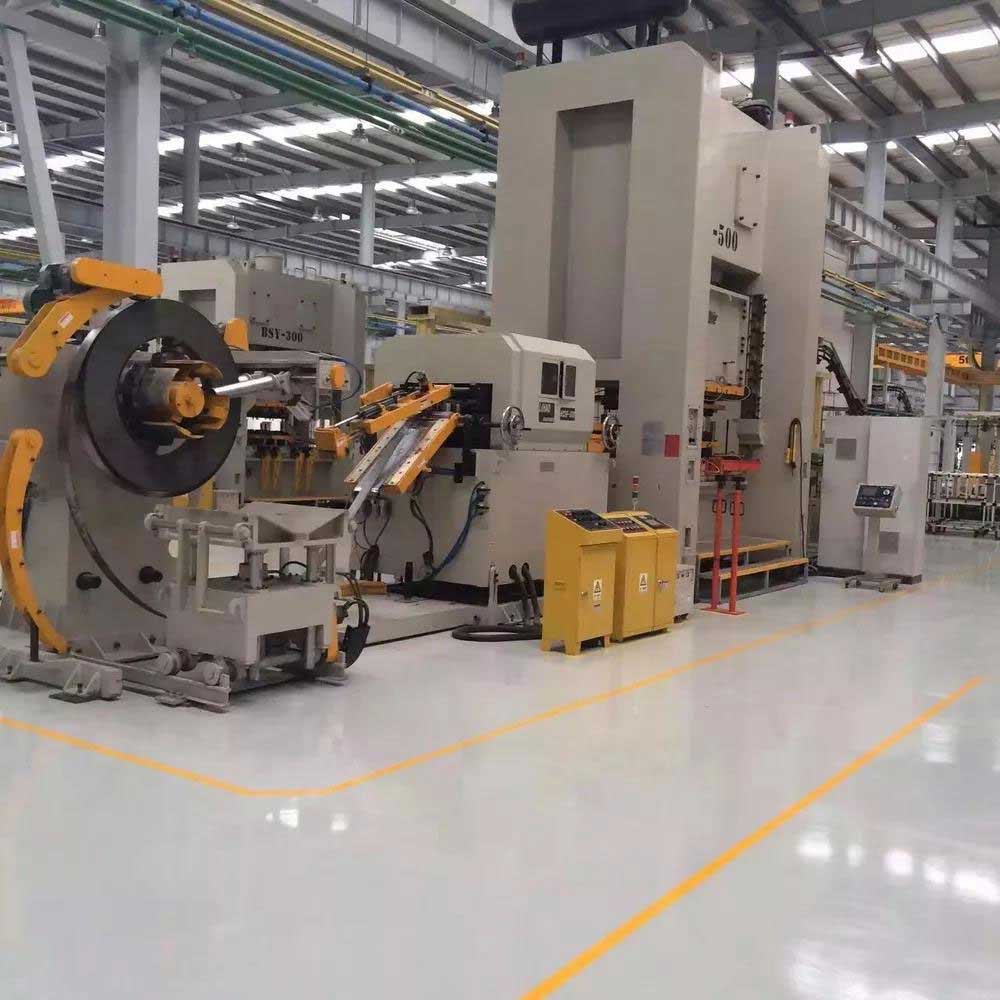

Detailed Images
