Multi Spindle Drill Head Manufacturers machine accessories tapping machine circular multi-axis device
from
$700.00
Ex Tax: $700.00
10 or more $500.00
- Stock: In Stock
- Model: SCJ001248
- SKU: SCJ001248
Products Sold: 0
Product Views: 178
Ask a Question About This Product
- Description
Product Description
Precision Adjustable 4 Spindle Drill Press Multi Spindle Drill Head Attachment | |||||||||
Dimensions / Model | U110 | U165 | U200 | U250 | U300 | ||||
Max. Spindle Pitch | 110 mm | 165 mm | 200 mm | 250 mm | 300 mm | ||||
Min. Spindle Pitch | 13 26 28 mm | 13 26 28 mm | 13 26 28 mm | 13 26 28 mm | 13 26 28 mm | ||||
Max. Working capacity | Drilling | 5/6 7/9 10/13 mm | 5/6 7/9 10/13mm | 5/6 7/9 10/13mm | 5/6 7/9 10/13 mm | 5/6 7/9 10/13 mm | |||
Tapping | 5/6 7/9 10/13 | 5/6 7/9 10/13 | 5/6 7/9 10/13 | 5/6 7/9 10/13 | 5/6 7/9 10/13 | ||||
RPM Ratio to Main Spindle | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | ||||
Numbers of Spindle | 2~6 | 2~10 | 4~12 | 4~16 | 4~16 | ||||
Detailed Images
Machine Parts

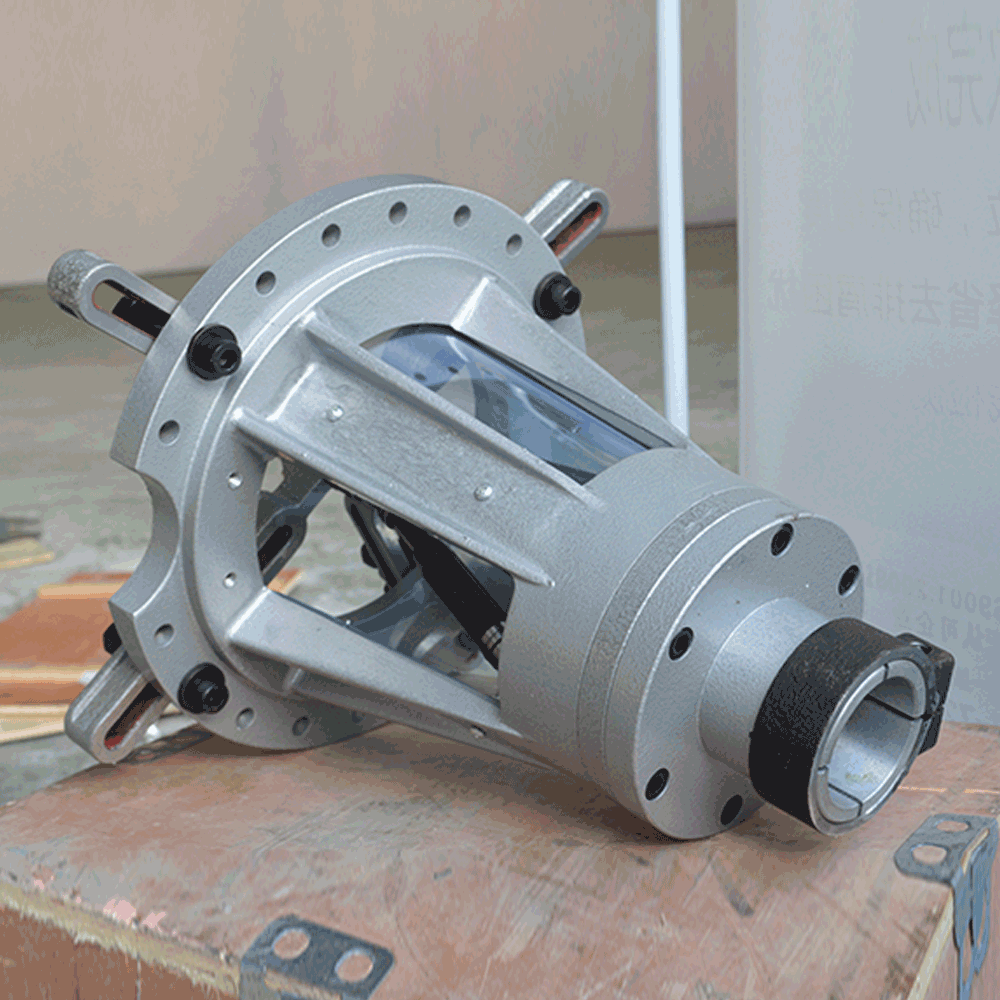

Name: U-type Adjustable Multi-spindle Head
Main Features
Name: output shaft
Machine Parts
Name: Nut
Main Features
Name: ER Collet
