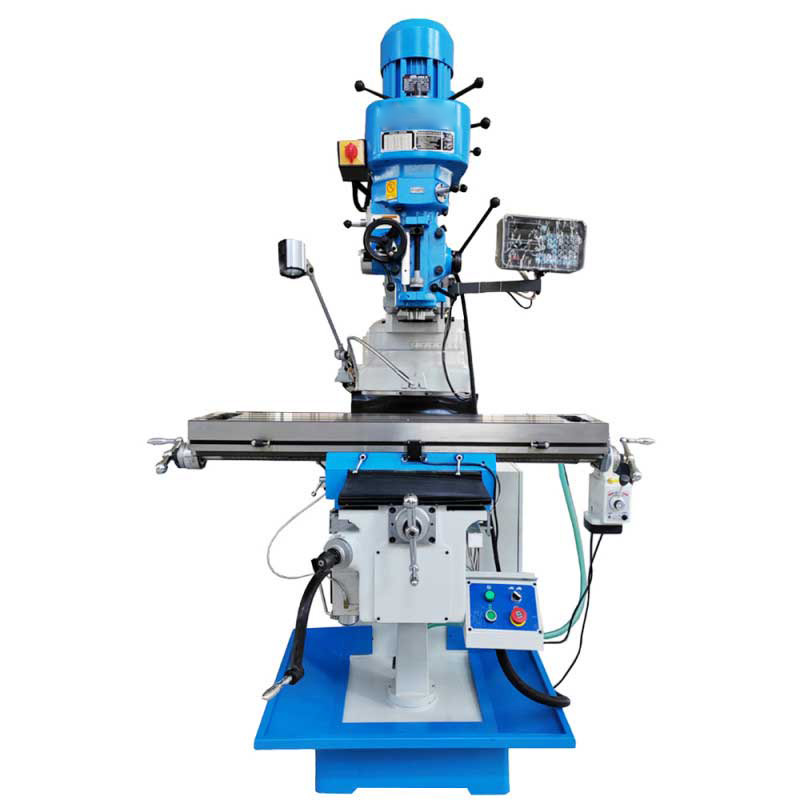

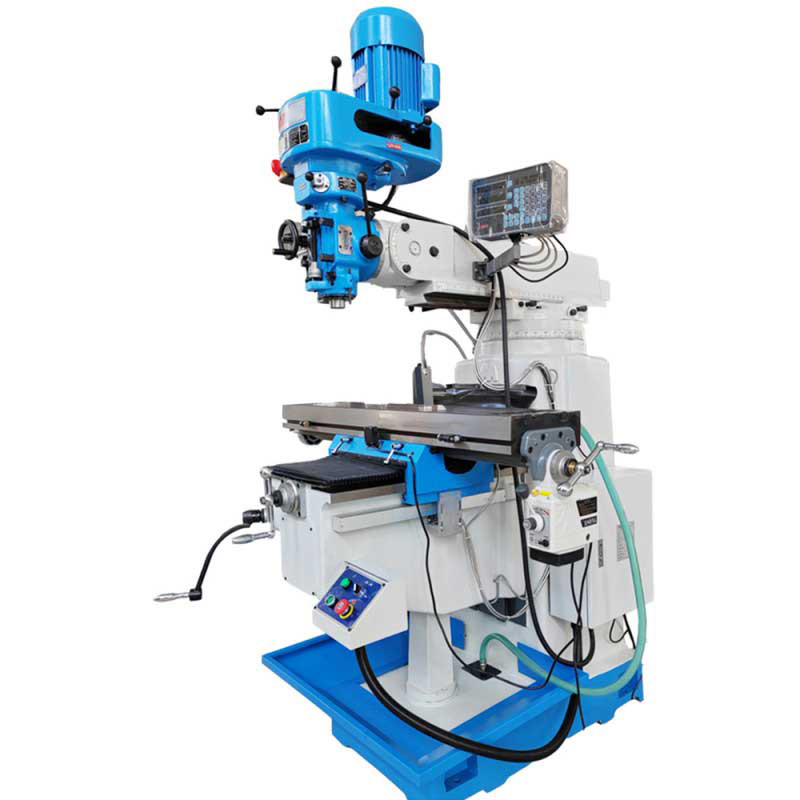

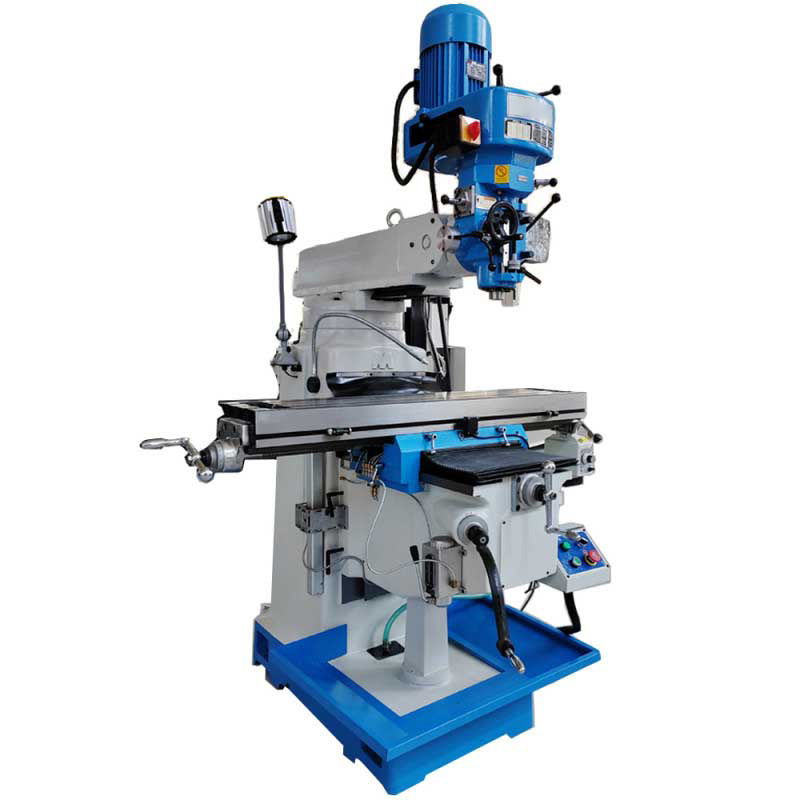

Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050

Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
Multiple Speed Vertical Turret 10'' x 50'' Drill Milling Machine DRO MX1050
from
$7,380.00
Ex Tax: $7,380.00
  • Stock: In Stock
  • Model: SCJ004478
  • SKU: SCJ004478
Products Sold: 0
Product Views: 156
  • Specifications
attribute-list
Max. Drilling Capacity (Steel)1-1/4''
Max. Drilling Capacity (lron)1-1/2''
Table size:10'' × 50''
X/Y-Axis Travel per Handwheel Revolution:0.2''
Amps16 A
Max. End Milling Capacity1''
Spindle TaperR8
Max. Face Milling Capacity3''
Longitudinal Table Travel (X-Axis)29-1/2''
Cross Table Travel (Y-Axis)15-3/4''
Knee Table Travel (Z-Axis)15-3/4''
Number of Spindle Speeds16
Max. Distance Spindle to Table16''
Ram Travel18-1/2''
Max. Distance Spindle to Column21-1/4''
Spindle travel:5''
Head Swivel (Left / Right)90°
Head Tilt (Front / Back)45°
Packing size (L x W x H)63'' × 55'' × 86-5/8''
Turret or Column Swivel360°
Power RequirementSingle-phase 230V 60 Hz
Spindle Speed150 - 5440 RPM
Quill Auto. Feed0.0015, 0.003, 0.006 in./rev.
Shipping Weight2967 lbs.
T-slots:3 @ 2½ centers, 5/8'' wide
Z-Axis Travel per Handwheel Revolution0.1''
Net weight2464 lbs.
Horse Power3 HP
Plug & Cord IncludedNO
  • Description
About this product


1. Table size: 10'' × 50''
2. 3-Axis DRO
3. Coolant recycling system
4. Spindle taper: R-8
5. Automatic downward feed
6. Multiple speeds of belt driven
7. Longitudinal power feed
8. Please install and commission the device according to the video

1. Includes service tools and toolbox.

1. 3-Axis DRO.

2. High or low speed adjustable.

3. Automatic downward feed.

4. Coolant recycling system.

5. This head can be automatically stopped by micro-adjustments.

6. Longitudinal power feed.

7. Precision quill feed.

8. Chrome-plated handle increases the feel of the handle.

9. Add lubricating oil with hand.

10. Forward and reverse spindle switch.

11. Hardened table surface with T slot.

12. Longitudinal limit switch protects the worktable, avoid exceeding the range of processing.
