from
$1,610.00
Ex Tax: $1,610.00
5 or more $1,510.00
  • Stock: In Stock
  • Model: SCJ006917
  • SKU: SCJ006917
Products Sold: 0
Product Views: 173

Available Options

  • Specifications
Industry-specific attributes
Table Travel (X) (mm)0 mm
Table Travel (Y) (mm)0 mm
Table Travel (Z) (mm)0 mm
Other attributes
ConditionNew
Range of Spindle Speed(r.p.m)3000 r.p.m
CNC or NotNormal
Place of OriginLiaoning, China
Number of Axes2
warranty:Unavailable
Weight (T)0.12 T
Key Selling PointsCompetitive Price
Showroom LocationSaudi Arabia, Russia, Kenya, Algeria, Sri Lanka
Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Construction worksxa0
Marketing TypeNew Product 2020
Machinery Test ReportProvided
Video outgoing-inspectionProvided
Warranty of core components1 Year
Core ComponentsBearing
Motor Power (kw)1.8
Production Capacity40
Voltage220V 50HZ single phase
Dimension(L*W*H)720x420x510mm
Travel (W-axis) (mm)0 mm
Motor Speed0-3000rpm
Typeportable
Voltage and frequency220V, 50hz, Single phase
Boring bar diameter40mm
Length of boring bar (Standard)1500mm
Boring diameter45-200mm
Axial feed speed0-90mm/min
Weight120kg
ColorCustmized
Feed travel (Type)290mm
Packaging and delivery
Packaging DetailsSuitable for long distance shipping.
PortDalian Port, China
Supply Ability
Supply Ability40 Set/Sets per Month
  • Description
Product Description

PORTABLE LINE BORING MACHINE

We are professional and skilled for producing as well as selling in this kind of machine since we have been in this area for more than 10 years. Machines are upgraded year by year, we updated the components continully to improve the quality, at the same time reduce its cost, now we have a mature system to insure customers would absolutely purchase machines with best quality and competitive price.
New Designed DBQ40 Portable Line Boring Machine/bore machine
Light cutting portable boring
item
Unit
DBQ40
DBQ50
DBQ60
voltage
V
220V
220V
220V
Max.diameter of boring hole
mm
45-200
55-280
65-600
length of boring bar
mm
1500/2000
1500/2000/2500
1500/2000/2500
spindle movement
mm
290
290
400-500
Maximum turning amount
mm
2
2
3
driver system
——
Servo motor
Servo motor
Servo motor
Motor power
KW
1.8
1.8
2
The spindle speed
rpm/min
0-200
0-200
0-55
Feed amount
mm/rpm
6
6
6
The range of feed speed
mm/min
0--90
0-90
0-90
torque
N/M
61
76.4
105
The surface roughness
Ra
3.2
3.2
3.2
Boring roundness error
mm
0.02
0.02
0.04
The support structure
——
screw
screw
One-shaped support
/Tripod
The range of milling
mm(φ)
45-200
55-230
70-350/80-400
Detailed Images
New Designed DBQ40 Portable Line Boring Machine/bore machine
New Designed DBQ40 Portable Line Boring Machine/bore machine

Power Plugs

10A, 250V with CE standard.
New Designed DBQ40 Portable Line Boring Machine/bore machine

Core parts

Oil-free lubrication,strong rigidity,small gap and long serve time.
New Designed DBQ40 Portable Line Boring Machine/bore machine

Drive

Good heat dissipation, regular big brand, heavy weight, high quality, long life of parts, no problem when operating.
New Designed DBQ40 Portable Line Boring Machine/bore machine

Motor selection

Servo motor: The main drive stability is good independent feed drive, the cutting is more stable and does not chatter the tools.
Brushless DC motor: High torque, equipped with independent drive power protection for the motor has a good overload overheat protection.

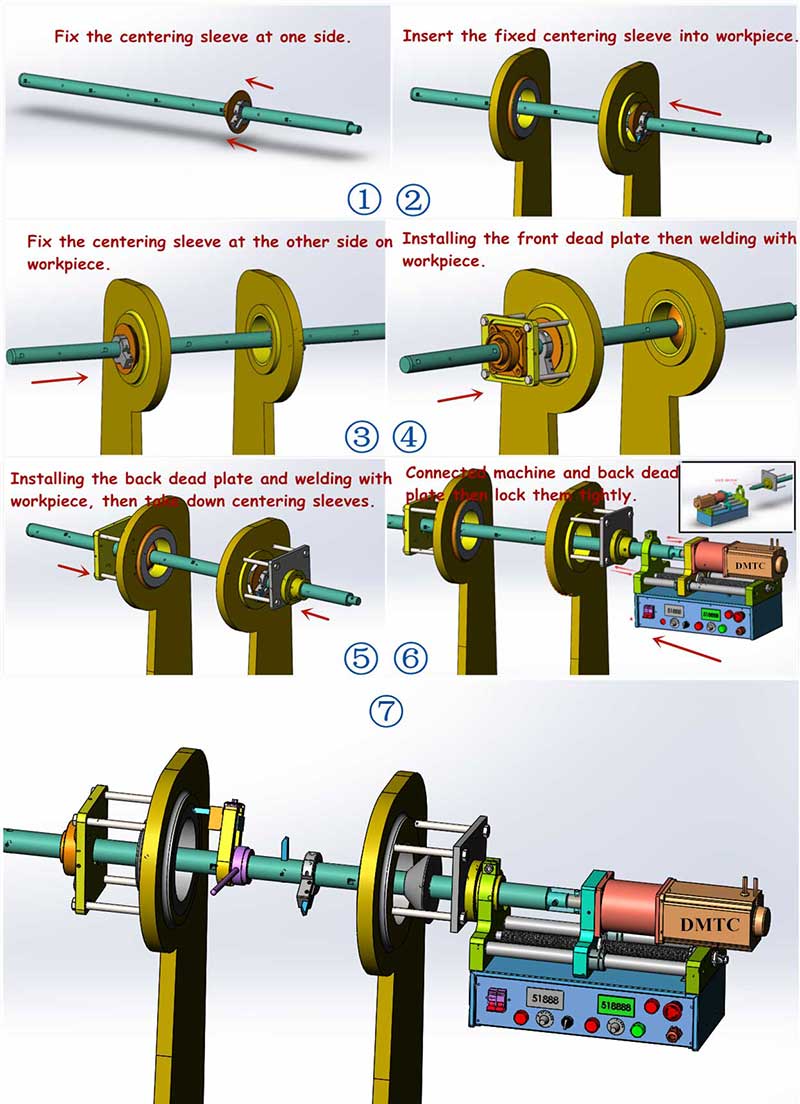

Installation&Working
New Designed DBQ40 Portable Line Boring Machine/bore machine
Optional Accessories
New Designed DBQ40 Portable Line Boring Machine/bore machine
AUTO-WELDING MACHINE&WELDING RESOURCE
Simple operation, perfect appearance, light volume, stable welding rotation, large welding stroke, intelligent brushless motor and intelligent drive.
Welding power supply (wire feeder + electric welding machine) can work in conjunction with automatic welding produced by our company. The changed welding power supply has stable output current, low cost and long life. It is recommended that customers choose a welding power source when purchasing automatic welding.
New Designed DBQ40 Portable Line Boring Machine/bore machine
FACER&BORING BAR
The use of high-quality steel has the functions of smooth rotation, good processing and clean surface, and automatic feed. It is that customers choose facer when purchasing boring machines.
The boring bar is made of high hardness material with smooth surface, even texture and very straight. The length and diameter of the boring bar can be customized according to the processing requirements, 40/50/60*1500-5000mm. In addition, can also be customized universal joint boring bar.
Ready To Ship
New Designed DBQ40 Portable Line Boring Machine/bore machine
