- Description
Feature:

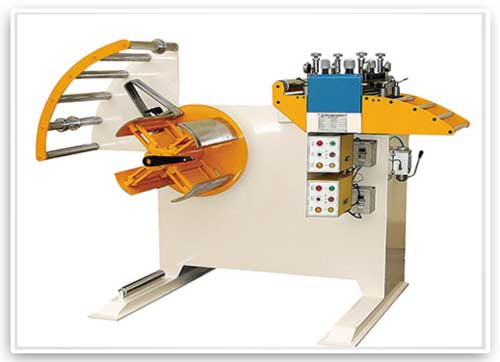

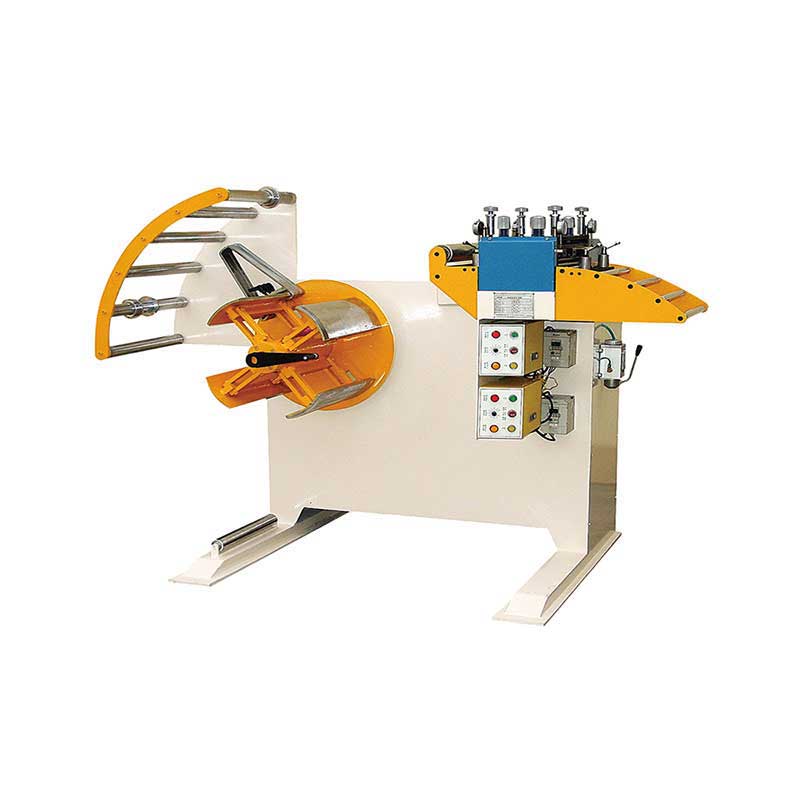

1. Integrated with uncoiler and straightener, save volume, suitable for board processing. Automatically adjust feeding time according to output speed.
2. All rolls are made of bearing steel, have all been quenched, hard-chrome plated and grinded with mim HRC60.
3. Use Japanese electromagnetic contact and electric parts, long service life .
4. A stepless variable speed control is used normal and high speed operation, control by modern frequency converters, keep pace with straightening, stable feeding.
5. Leveler inclines appropriately to reduce feeding loop distance.
6. Constructed with highly rigid structure and designed with a powerful motorized feeder.
Specification :
Type | GO-200B | GO-300B | GO-400B | GO-500B | GO-600B |
Max.width | 200mm | 300mm | 400mm | 500mm | 600mm |
Thickness | 0.1-0.8mm | ||||
Coil.I.Dia | 450-530mm | ||||
Coil.O.Dia | 1200mm | ||||
Max.weight | 800kg | 1000kg | 1500kg | 1500kg | 2000kg |
Straight Power | 1/2HP | 1HP | 2HP | 2HP | 3HP |
Uncoil Power | 1HP | 1HP | 2HP | 2HP | 3HP |
Straight adjust | 4 point worm gear fine adjsutment | ||||
Max.speed | 15m/min | ||||
Expansion method | Manual | ||||
Loop control | Touch sensor | ||||

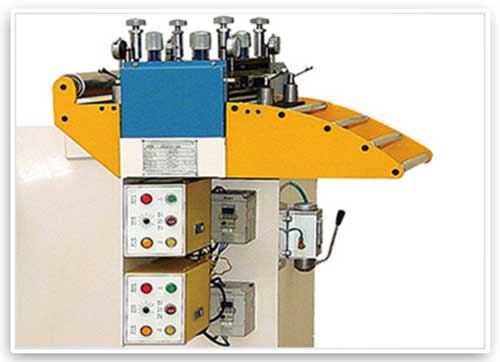

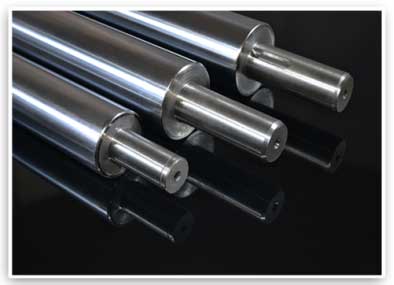

Straightener head Straightening roller

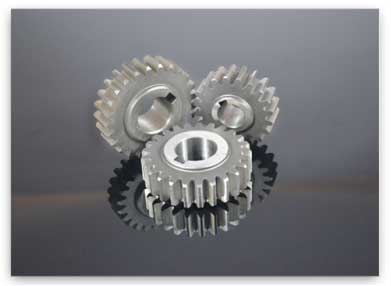

Drive gear Frame part

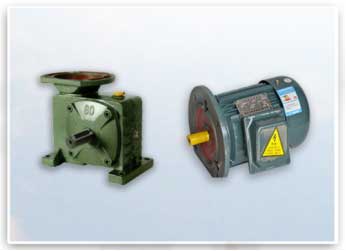

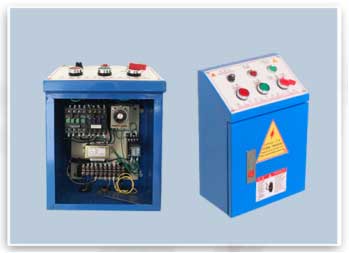

Electric control box Power part
