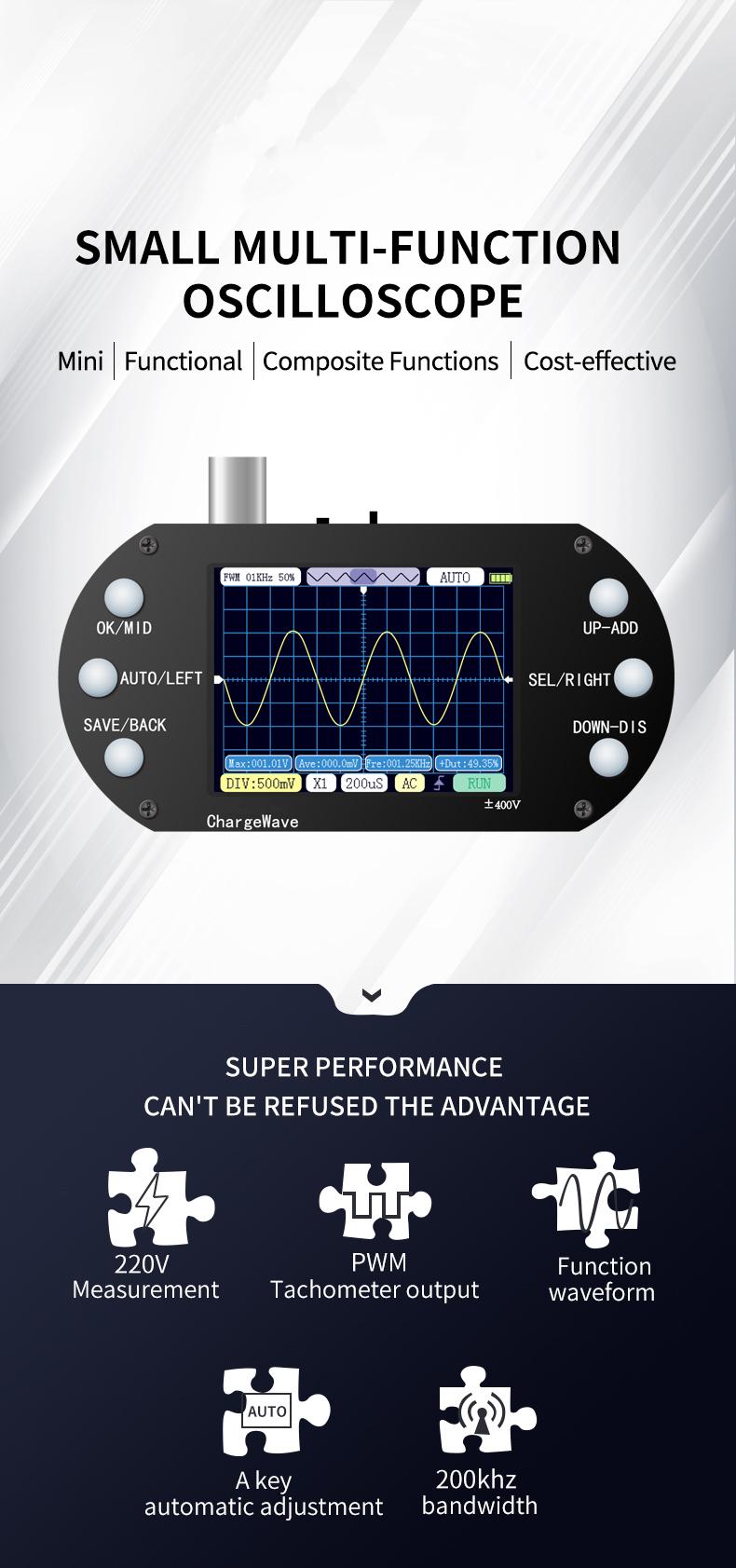

PDS138 Mini Digital Oscilloscope 2.5Mhz Sampling Rate 200Khz Bandwidth Support AUTO 80Khz PWM for Electronic Repair DIY
from
$22.99
Ex Tax: $22.99
- Stock: In Stock
- Model: SCJ003155
- SKU: SCJ003155
- UPC: 315972718380
Products Sold: 0
Product Views: 421
Ask a Question About This Product
- Description
Delivery list:
Type 1:
1 x Host
1 pair of test clips
OR
Type 2:
1 x Host
1 pair of test clips
1 x 10X Test Probe

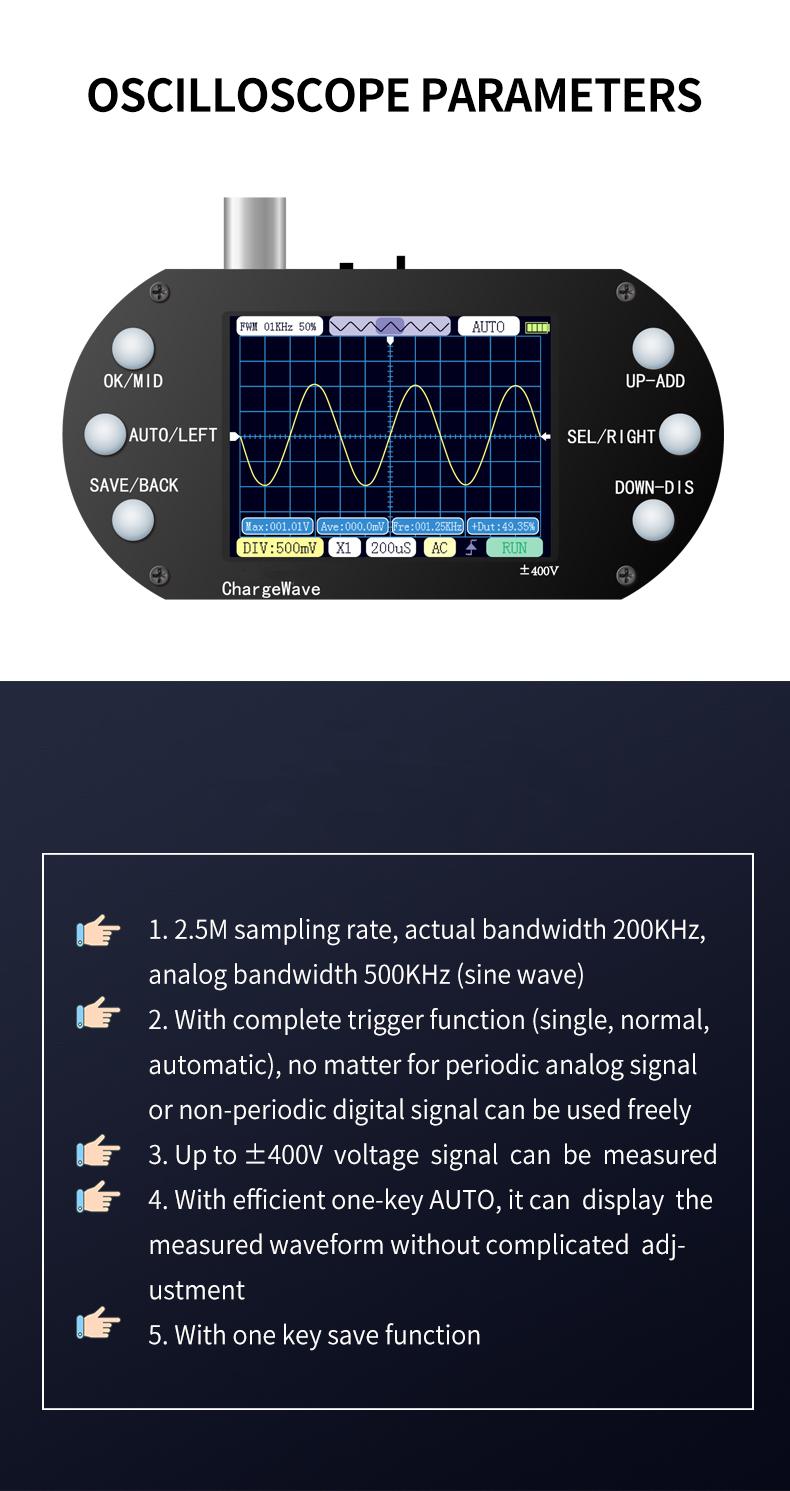

Function:
2.5MHz sampling rate, actual bandwidth 200KHz
Analog bandwidth 1MHz (sine wave)
It has complete triggering function (single time, normal, automatic), and can be used freely for both periodic analog signals and non periodic digital signals
± 400V voltage signal can be measured at most
Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.
One button waveform saving function

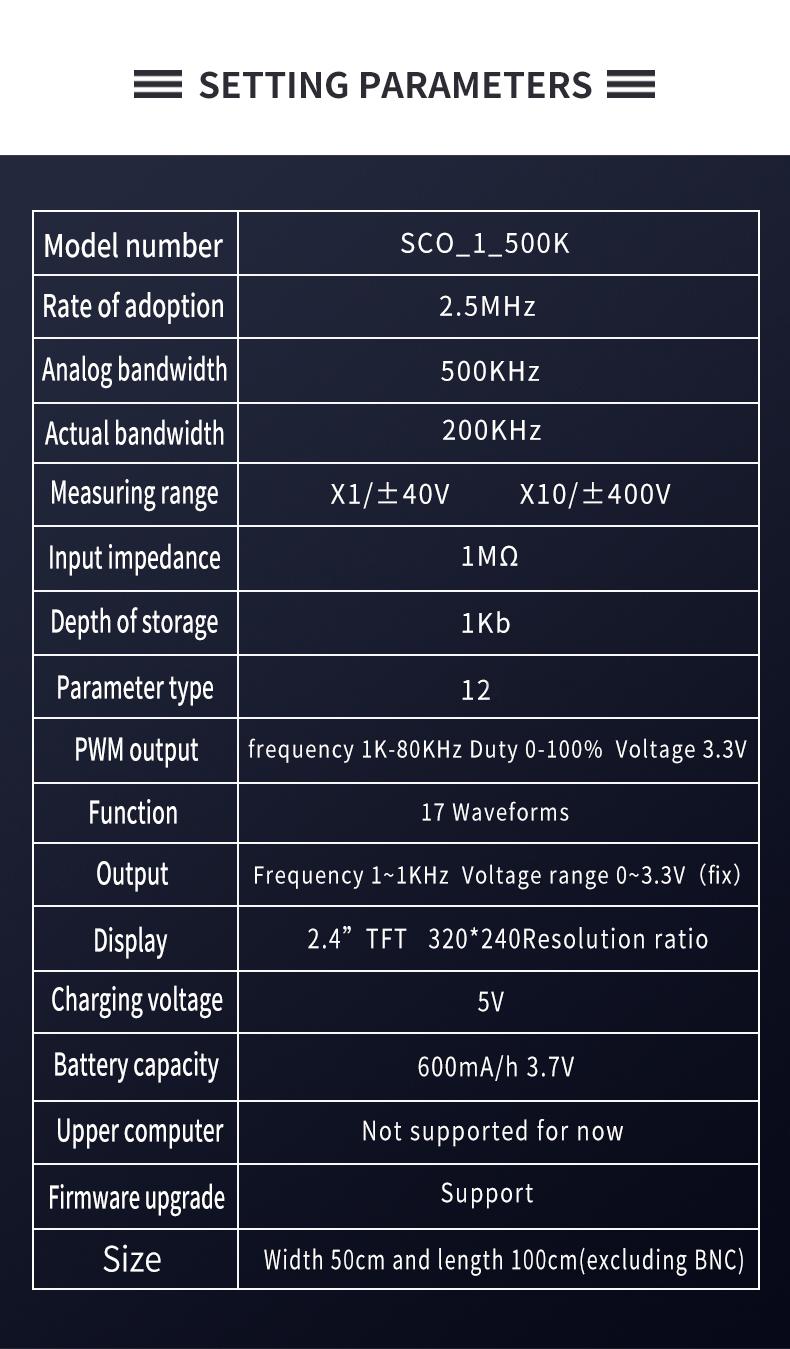

Parameters:
Sampling rate: 2.5MHz
Analog bandwidth: 1MHz (sine wave)
Actual bandwidth: 200KHz
Measuring voltage: X1/± 40V, X10/± 400V
Input impedance: 1M Ω
Storage depth: 1Kb
Parameter display: 12 types
PWM output: frequency 1K~80KHz, duty cycle 0~100%, output voltage 3.3V
Function waveform: 17 waveforms
Output frequency: 1~1KHz Voltage range Vpp 0~3.3V (not adjustable)
Display: 2.4 inch TFT, 320 * 240 resolution
Charging voltage: 5V
Battery capacity: 600mA/h 3.7V
Upper computer: temporarily not supported
Firmware upgrade: supported
Size: 50cm wide and 100cm long (excluding BNC head)
Weight:180g（only DSO)
