- Stock: In Stock
- Model: SCJ006247
- SKU: SCJ006247
Ask a Question About This Product
- Description

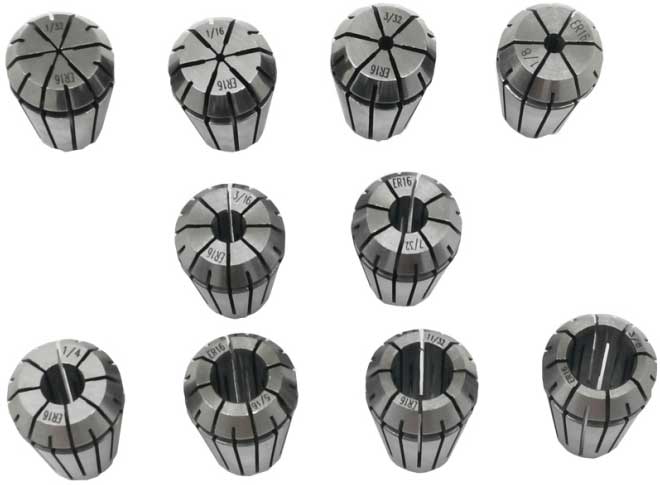

1. This set includes 10 individual ER16 collets in 1/32" increments.
2. The following sizes are included - 1/32,1/16,3/32,1/8,3/16,7/32,1/4,5/16,11/32,3/8"
3. Runout tolerance within 15 micron (0.00059") at 4×d position
4. Full set covers all collet sizes from 1/32" - 3/8" (0.031" - 0.375")
This set includes 10 individual ER16 collets in 1/32" increments.
The following sizes are included - 1/32,1/16,3/32,1/8,3/16,7/32,1/4,5/16,11/32,3/8"
Runout tolerance within 15 micron (0.00059") at 4×d position
Designed for use with cylindrical shank tools, not flats
The full length of the cutting tool should be placed in the collet
Made from 65Mn Alloy spring steel , vacuum annealing and hardened to HRC 42-45

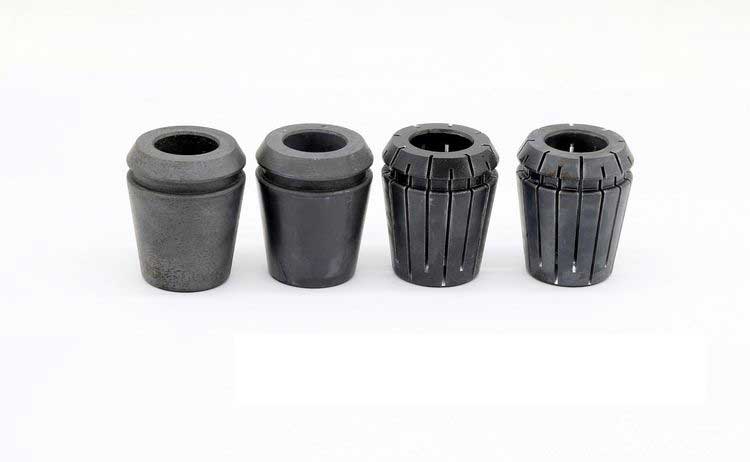

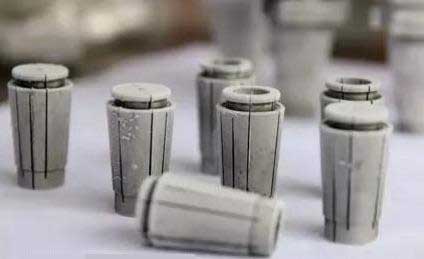

Each collet gone through thermal aging process to eliminante grinding residual stress and long cryogenic treatment to improce wear resistance
Full set covers all collet sizes from 1/32" - 3/8" (0.031" - 0.375")
Comes in a aluminum plastic collet box
Box dimensions are 4.92" x 4.13" x 2.36" tall (with lid closed)
