R8 Shank ER40 Chuck with 15 pc Collet Set, 1/8 inch - 1 inch by 16th
from
$142.96
Ex Tax: $142.96
- Stock: In Stock
- Model: SCJ006194
- SKU: SCJ006194
Products Sold: 0
Product Views: 468
Ask a Question About This Product

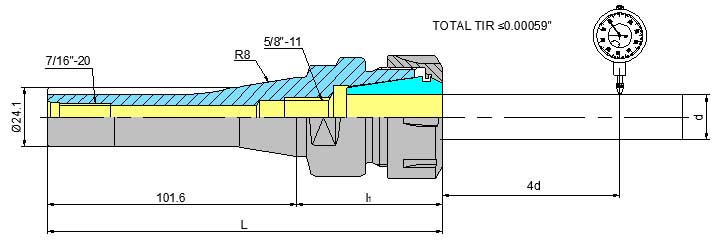

- Specifications
attribute-list | |
Size | R8 ER40 |
TOTAL TIR | ≤0.00059" |
Through Coolant | YES |
Collet Nut Diameter | 2-31/64" |
Rear Thread | 7/16"-20 |
Collet Qty | 15 Pcs |
Collet Range | 1/8" - 1" |
GROSS WEIGHT | 11.9 lbs |
Projection L1 | 2.54" |
Overall Length (L) | 6.54" |
Meas | 14.17 x 8.66 x 2.99 in. |
Net weight | 11.02 lbs |
- Description
About this product
1. 15pc ER40 collet set : 1/8" - 1" by 16th (1/8", 3/16", 1/4", 5/16", 3/8", 7/16",1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1")
2. All collets are made of high quality alloy spring steel 0.0005" accuracy
3. Rear Thread is 7/16" - 20
4. 1pc R8-ER40 collet chuck, 15PCS ER40 collets, 1pc ER40 spanner
1. 15pc ER40 collet set : 1/8" - 1" by 16th (1/8", 3/16", 1/4", 5/16", 3/8", 7/16",1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1")
2. All collets are made of high quality alloy spring steel 0.0005" accuracy
3. Rear Thread is 7/16" - 20
4. Hardened and precision ground
5. 1pc R8-ER40 collet chuck, 15PCS ER40 collets, 1pc ER40 spanner
6. Fitted plastic case
