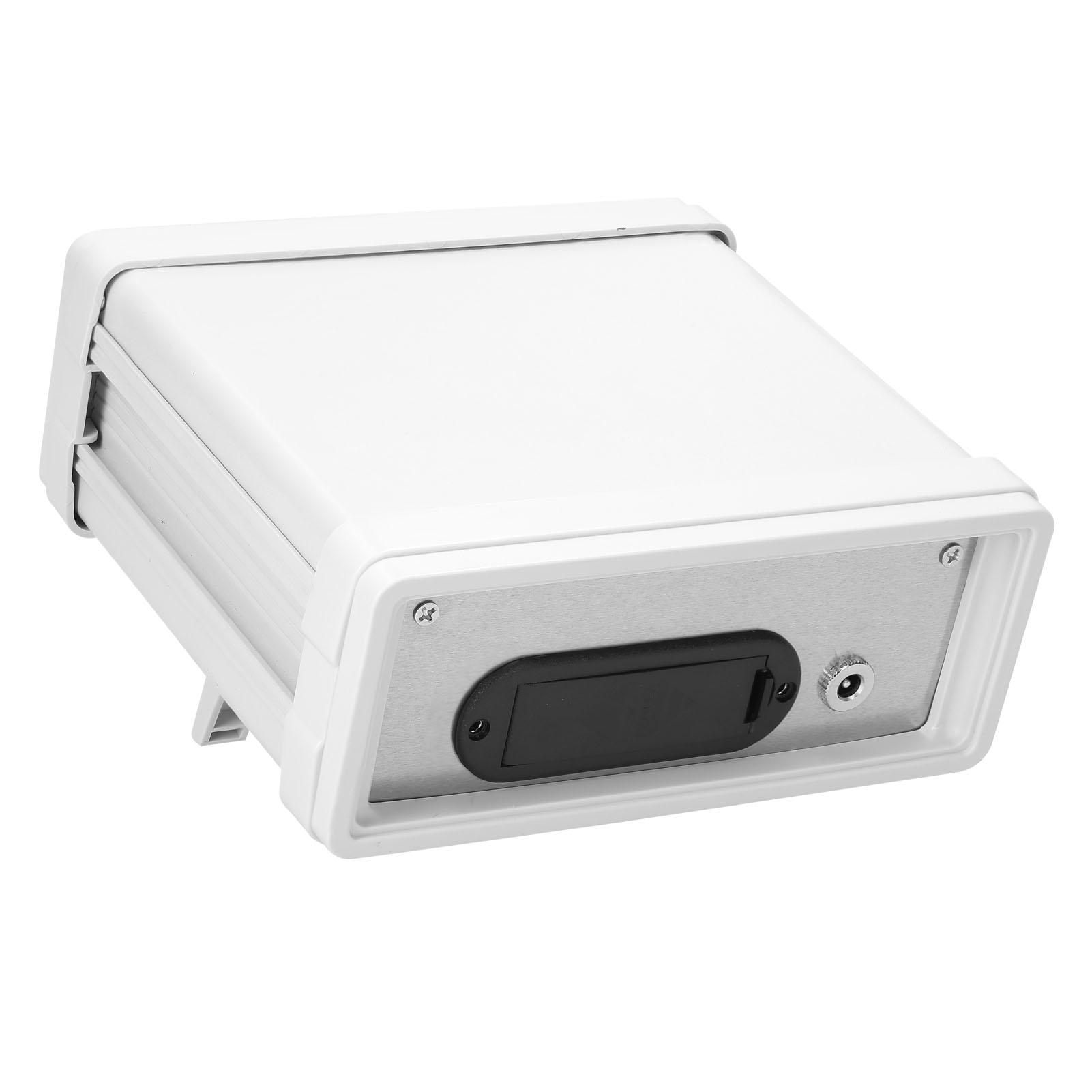

RCL101D 2.5Vrms Desktop Digital LCR Tester 100Hz/1kHz/10kHz Digital Display Bridge with OLED High-Brightness Display

Description
Reviews

Buy Now

Description

Features:

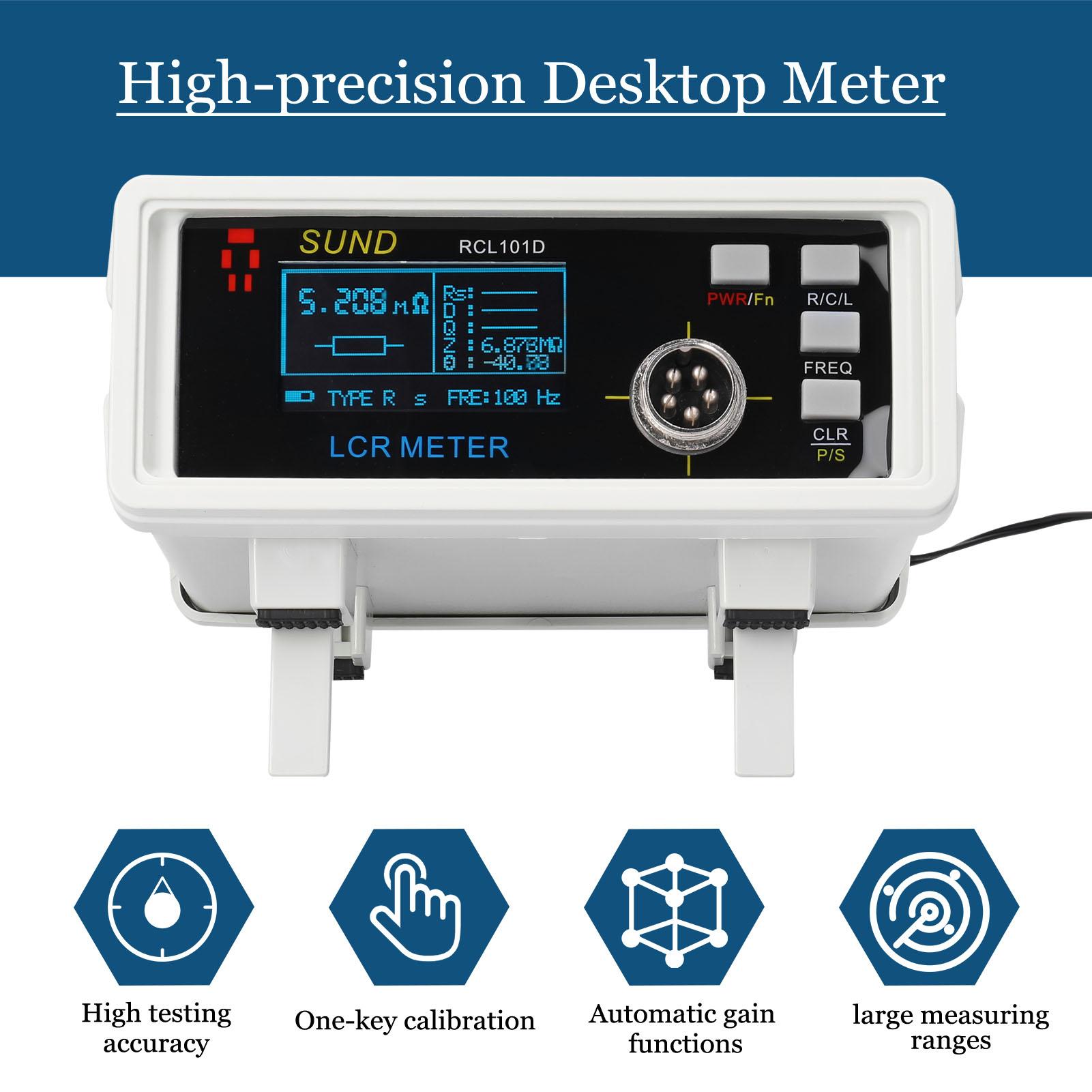

◆It has the core technology of intelligent automatic range and automatic gain control.

◆The industry's first use of the latest high-speed ARM architecture processor.

◆High test accuracy, use the least number of control buttons, and strive to have the most concise operation interface, the most convenient to use, and improve your work efficiency.

◆Optimal fast algorithm, under the premise of ensuring accuracy, provide the highest test speed. Optimize the algorithm to eliminate common mode interference.

◆Small size and light weight, does not take up space on the work surface, and has sufficiently high mechanical strength.

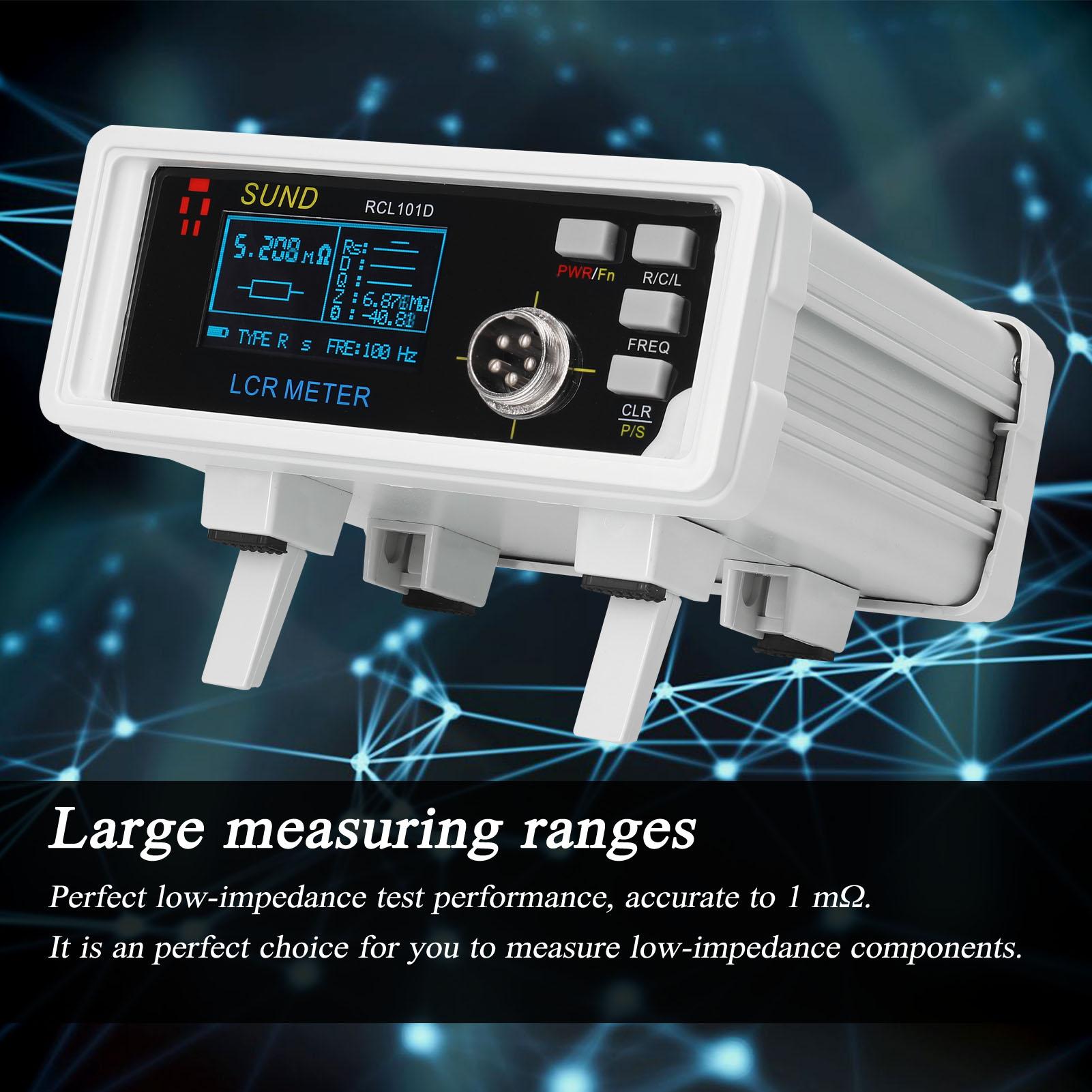

◆Large measuring range, with good low resistance test performance, accurate to 1 mΩ, it is your ideal choice for measuring low impedance components.

◆All parameters are displayed at the same time, without cumbersome switching

◆Built-in large-capacity rechargeable lithium battery, long standby time, support power display.

◆Silicone touch button gives you a comfortable feel.

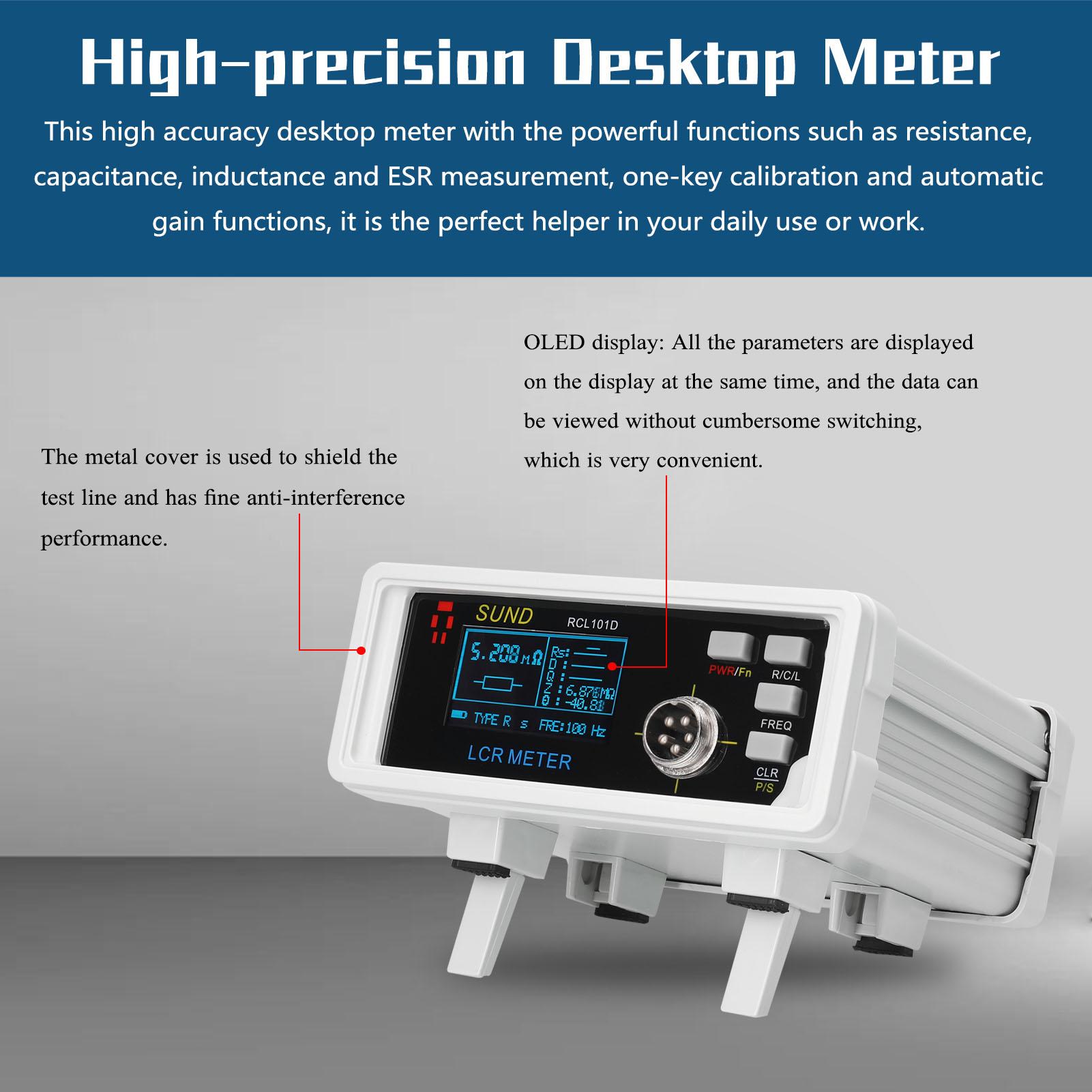

◆The industry's only high-end OLED display, active light-emitting (different from the passive light-emitting technology of LCD, no backlight source is needed), showing off bright, uniform display, and clear display even in the sun

◆Metal shell, shielded test line, provide good anti-interference performance.

◆Graphic display, very intuitive

◆One Key Clear

Specifications
Model	RCL101D
Measurement function
Test parameters	L, C, R, D, Q, ESR, θ
Basic accuracy	0.25%
Equivalent Circuit	Series Parallel
Range method	automatic
Test speed	2 times/S
Calibration function	One-key calibration
Test terminal configuration	Four-terminal Kelvin test line
Display method	Direct reading
monitor	OLED highlight display
Back light	Self-luminous
Power display	support
Low battery shutdown	support
Battery life	Work continuously for more than 4 hours
Power supply	1. Adapter powered 2. Battery powered
Battery configuration	Built-in lithium battery
Test signal
Test signal frequency	100Hz, 1kHz, 10kHz
Output impedance	200Ω minimum
Test signal level	Maximum 2.5Vrms
Measurement display range
R	0.001 Ω - 99.99 MΩ
C	0.001 pF - 999.9mF
L	0.001 μH - 9999 H
D,Q	0.001 - 9999

General Specifications
Working temperature, humidity	0°C－40°C,	≤90%RH
Power requirements	DC9V/Built-in two large-capacity lithium batteries
Power consumption	≤1.2W

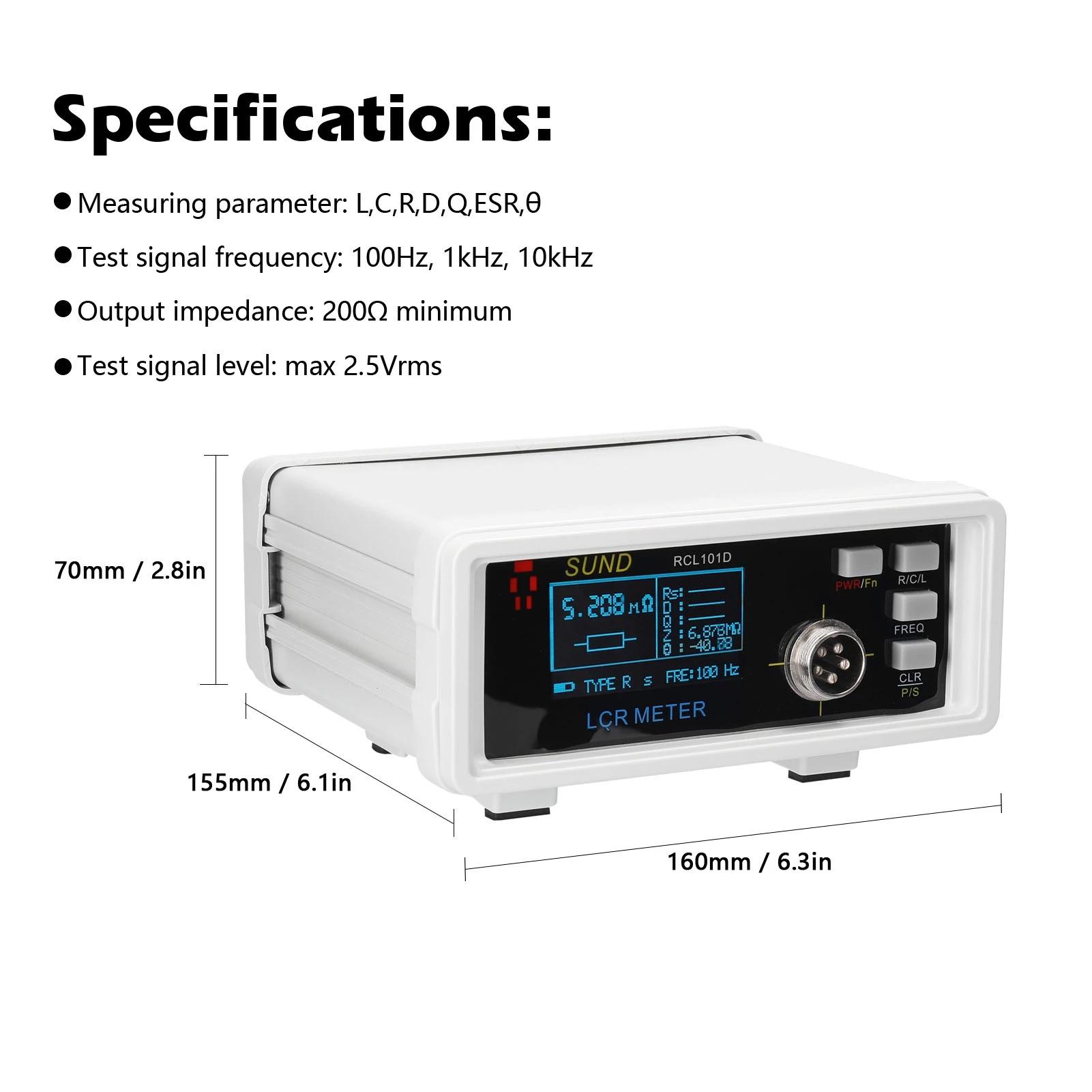

Volume (length × width × height)	16015570 mm
Host weight	810g

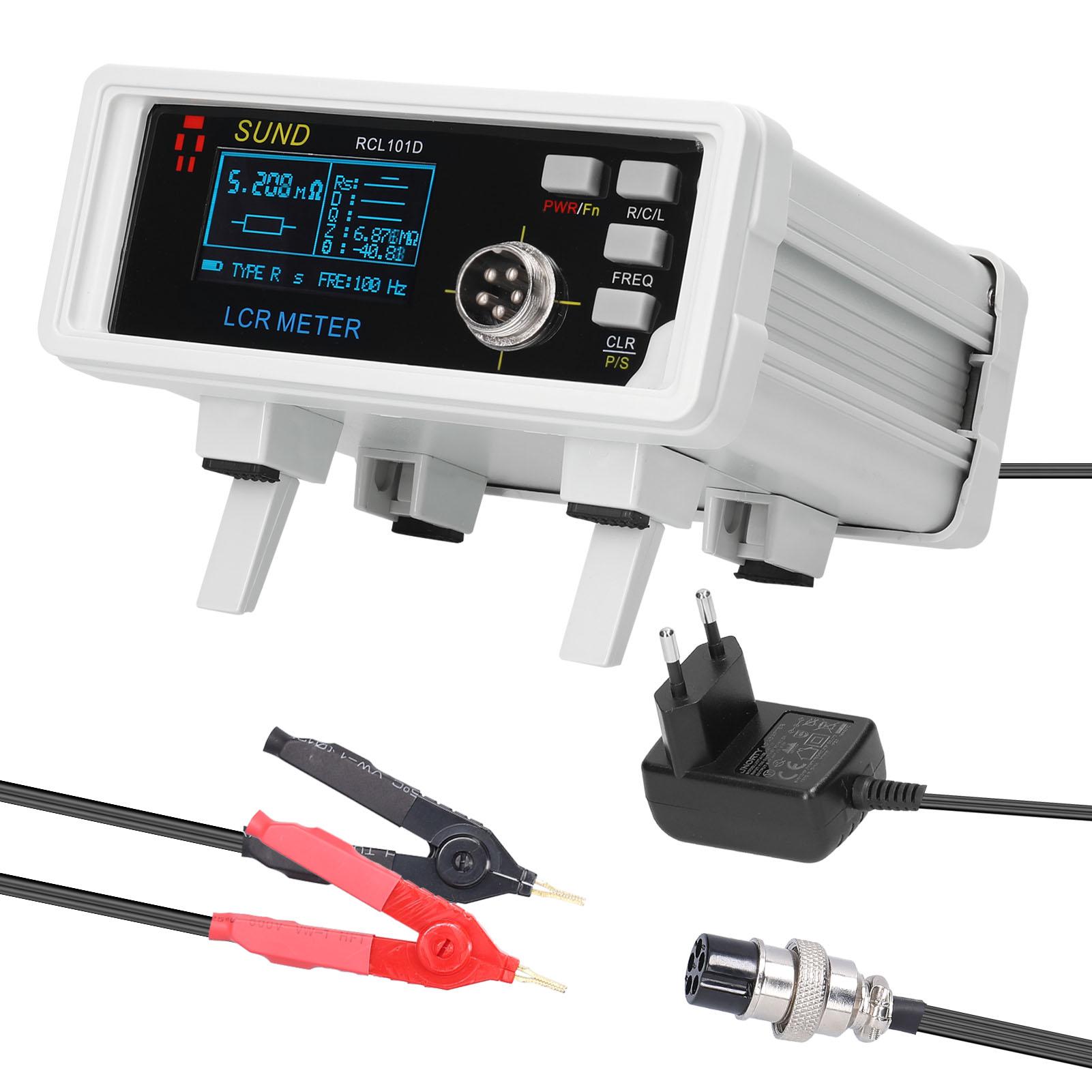

Package included:

1 X RCL101D LCR Tester

1 X Test Cable
