from
$3,299.00
Ex Tax: $3,299.00
  • Stock: In Stock
  • Model: SCJ004114
  • SKU: SCJ004114
Products Sold: 0
Product Views: 189
  • Specifications
attribute-list
ModelSL-FM-20W
Item NameTechnical Parameter
Laser Power20W
Laser TypeSOCOJE fiber laser source
Marking Area4.3 x 4.3 in. (110 x 110mm)
Beam Diameter7mm±1
Laser wavelength1064nm
Pulse Width131ns
Marking Depth0.0004-0.02 in. (0.01-0.5mm)
Repeat frequency30KHz-60KHz
CoolingAir Cooling
GROSS WEIGHT132.3 lbs 60 KG
Rated power consumption600W
Operating voltage110V-60 Hz/15A
Packing Size34.6 x 16.5 x 31.5 in. (880 x 420 x 800mm)
PackageStandard export wooden case
  • Description
About this product

1. Laser Power:  Fiber Laser 20W
2. Software: Genuine EZCAD
3. Marking Area: 4.3 x 4.3 in. (110 x 110mm)
4. Certification: FDA Certified
5. Power Supply: AC 110 V ± 10%, 60 Hz
6. System Environment: Windows XP/2000/7/8/10

7. Available for rotation axis.

Items

Specification

Qty.

Laser marking machine

SL-FM-20W

1

Software program

EZCAD

1

User manual & Video

USB

1

Laser Safety Goggle

1064nm Laser ONLY

1

Power Adapter

CN to US

1

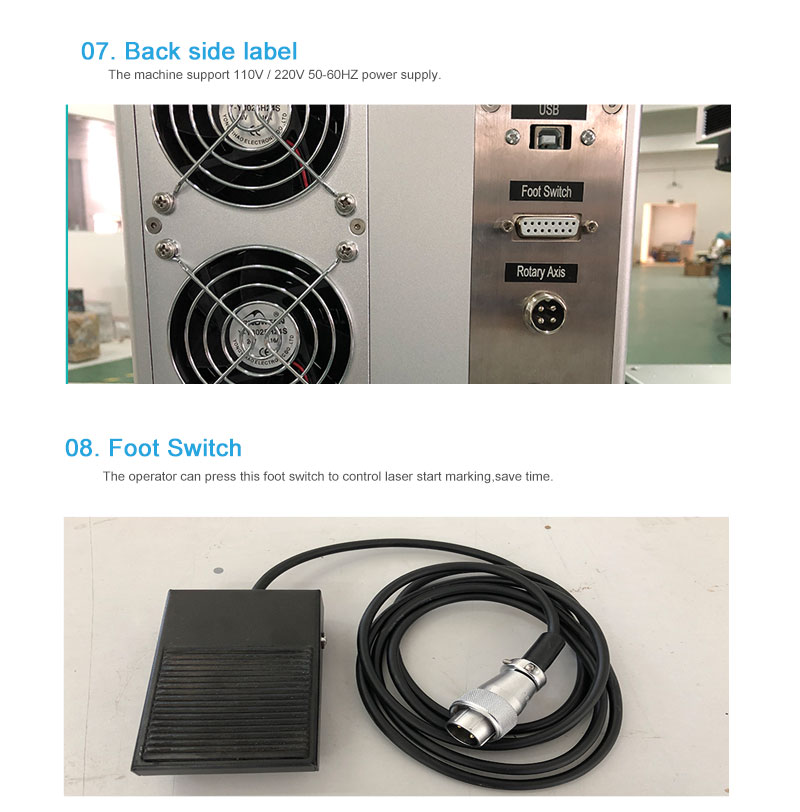

Foot Switch

1.5 Meter

1

Power Cable

110V power supply

1

20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA

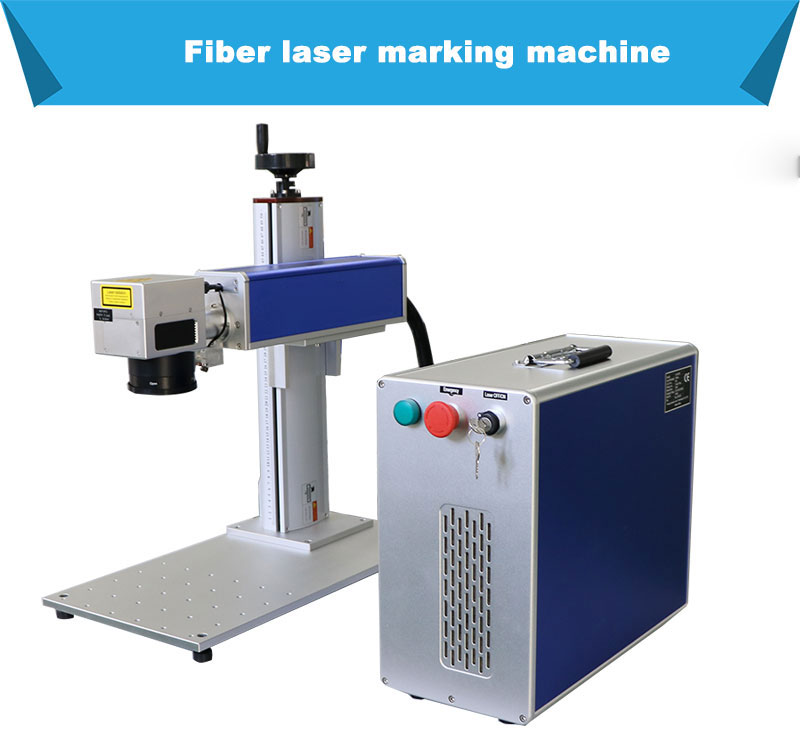

Our fiber laser marking machine, easy to move equipment,air-cooling, compact machine, Perfect output beam quality, high reliability, noconsumables, maintenance-free, fiber laser source, Long life Working. The internationallatest, most reliable structure, small size, power consumption is small, nohigh-voltage without large water-cooled system. Close to the ideal beam, USBinterface, output control, optical scanning system, laser repetition rate high,high-speed without distortion.

20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA

20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA

Available for rotation axis, but it doesn't include the rotation axis. You can purchase a rotation axis with TPIN: L9BI0SH3I.

20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA

20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA

20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA

20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA20W Split Fiber Laser Engraving Marking Machine Laser Marking Machine EZ CAD FDA
