- Stock: In Stock
- Model: SCJ004118
- SKU: SCJ004118
Ask a Question About This Product
- Specifications
attribute-list | |
Model | SL-FC-30W |
Item Name | Technical Parameter |
Laser Power | 30W |
Laser Type | SOCOJE fiber laser source |
Marking Area | 4.3 x 4.3 in. (110 x 110mm) |
Laser wavelength | 1064nm |
Pulse Width | 131ns |
Marking Depth | 0.0004-0.02 in. (0.01-0.5mm) |
Repeat frequency | 30KHz-60KHz |
Cooling | Air Cooling |
GROSS WEIGHT | 275 lbs (125 KG) |
Rated power consumption | 600W |
Operating voltage | 110V-60 Hz/15A |
Packing Size | 34.6 x 28.7 x 42.5 in. (88 x 73 x 108cm) |
Marking Speed | ≤7000mm/s |
Package | Standard export wooden case |
- Description
1. Laser Power: Fiber Laser 30W

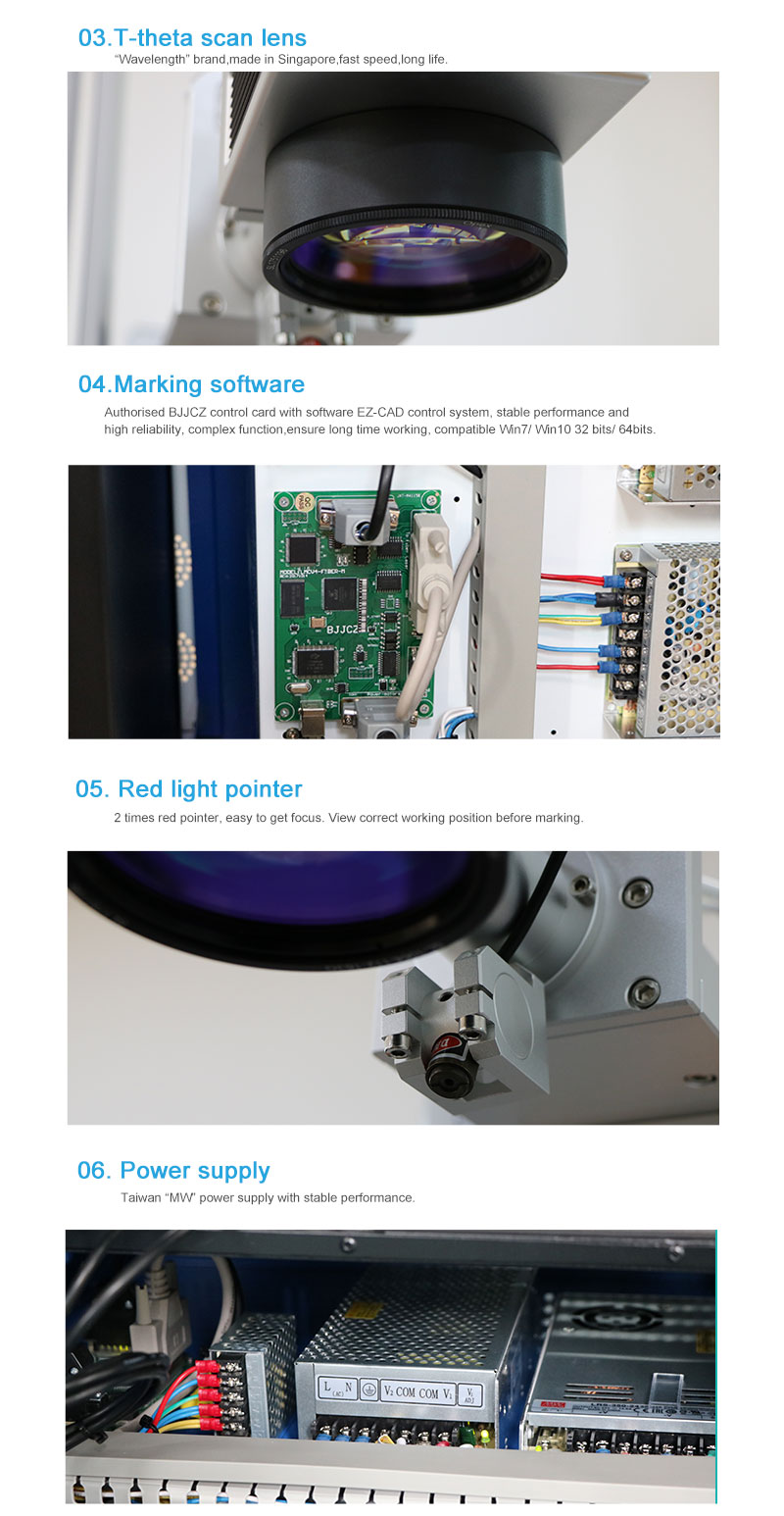

2. Software: Genuine EZ CAD
3. Marking Area: 4.3 x 4.3 in. (110 x 110mm)
4. Certification: FDA Certified
5. Power Supply: AC 110 V ± 10%, 60 Hz
6. System Environment: Windows XP/2000/7/8/10
Items | Specification | Qty. |
Laser marking machine | SL-FC-30W | 1 |
Software program | EZCAD | 1 |
User manual & Video | USB | 1 |
Laser Safety Goggle | 1064nm Laser ONLY | 1 |
Power Adapter | CN to US | 1 |
Foot Switch | 1.5 Meter | 1 |
Power Cable | 110V power supply | 1 |
Our fiber laser marking machine, easy to move equipment,air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free, fiber laser source, Long life Working. The international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high,high-speed without distortion.
Available for rotation axis, but it doesn't include the rotation axis. You can purchase a rotation axis with TPIN: L9BI0SH3I.
