- Stock: In Stock
- Model: SCJ004121
- SKU: SCJ004121
Ask a Question About This Product
- Specifications
attribute-list | |
Laser Power | 30W, 10% - 100% Adjustable |
Input Voltage | AC 110 V ± 10%, 60 Hz |
Marking Area | 4.3" x 4.3" (110 × 110 mm) |
Beam Quality | M2 < 1.6 |
Marking Depth | ≤ 0.04" (1 mm) |
Wavelength | 1,064 ± 3 nm |
Repeated Accuracy | ± 0.001 mm |
Compatible System Environment | Win XP/7/8/10, 32/64 bit |
Min. Character Size | 0.15 mm |
Marking Speed | < 315 inch/s (8,000 mm/s) |
Service Life | 100,000 Hours |
Min. Line Width | 0.01 mm |
Cooling Way | Air Cooling |
Graphic format supported | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT etc. |
- Description
1. Laser Power: Fiber Laser 30W
2. Software: ORIGINAL EZ Cad
2. Marking Area: 4.3" x 4.3" (110 × 110 mm)
3. Certification: FDA Certified
4. Power Supply: AC 110 V ± 10%, 60 Hz
5. System Environment: Windows XP/2000/7/8/10
6. Worktable could be moved up and down,
Packaging Method | Plywood package |
Package Dimension | 35.4 L × 14.2" W × 32.3" H |
Package Weight | 110 lbs (50 kg) |

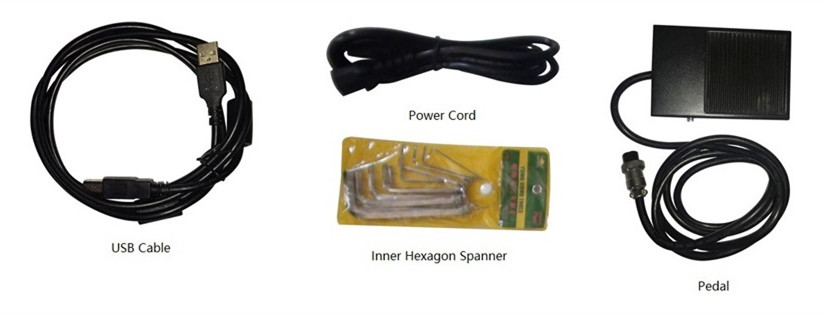

Package Included:
1 x Fiber Laser Marking Machine
1 x Set of Inner Hexagon Spanner
1x CD software
1 x Power Cord
1 x USB Cable
1x goggle
1x small tools
1x Foot switch

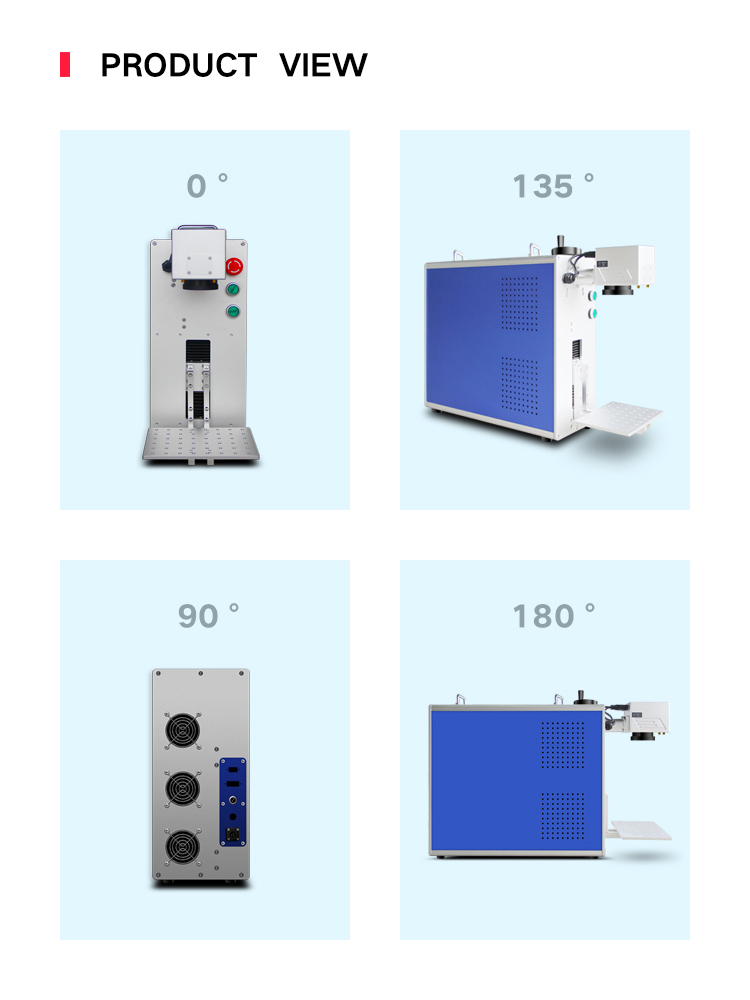

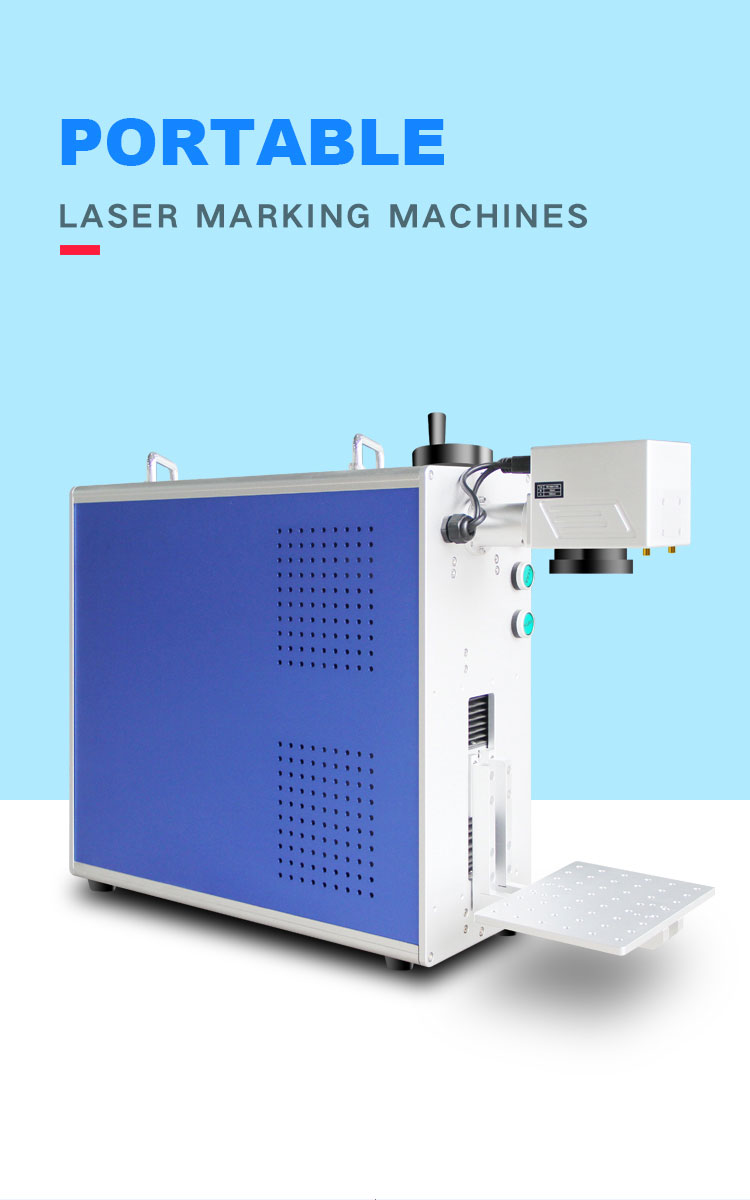

30W portable Fiber Laser Marking Machine
This environmental-friendly and easy-maintained laser marking machine is applicable for both metal and nonmetallic materials, such as marking codes, decorative maps, LOGOs, serial numbers etc. It is equipped with fiber laser source of high quality, high energy and high stability whose service life is able to reach 100,000 hours.
This product is widely used in varies industries including jewellery, cell phone, keyboards, auto parts, electric appliances, kitchenware, knives, glasses, stainless steel products, electronic components, sanitary equipments, buckles, communication apparatus etc.
1. Environmental friendly, easy operation and maintenance
2. Compact, lightweight and simple interface
3. Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
4. Service life able to reach 100,000 hours
5. Flexible and adjustable processing direction
6. FDA certified
