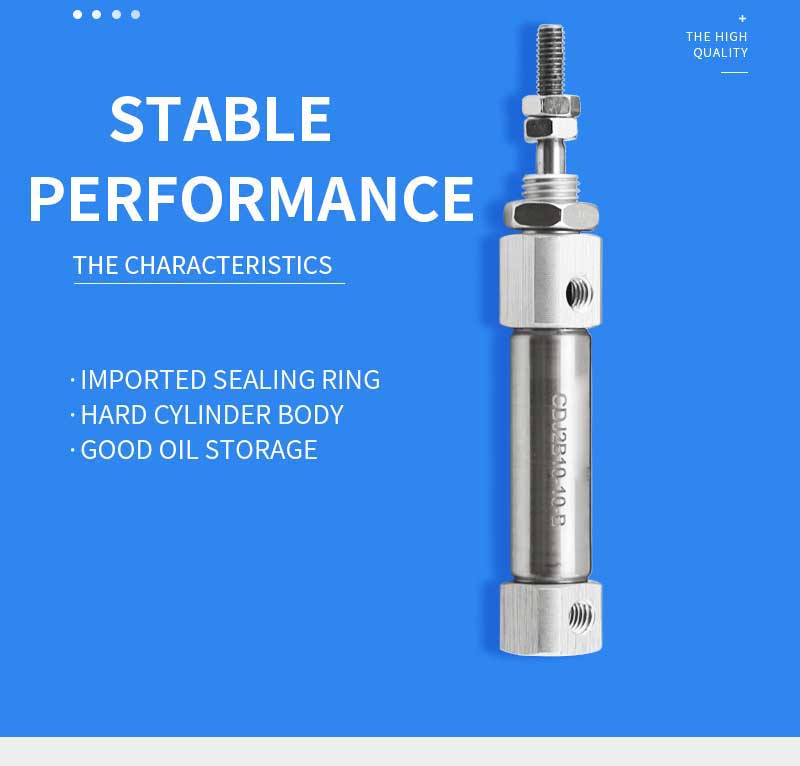

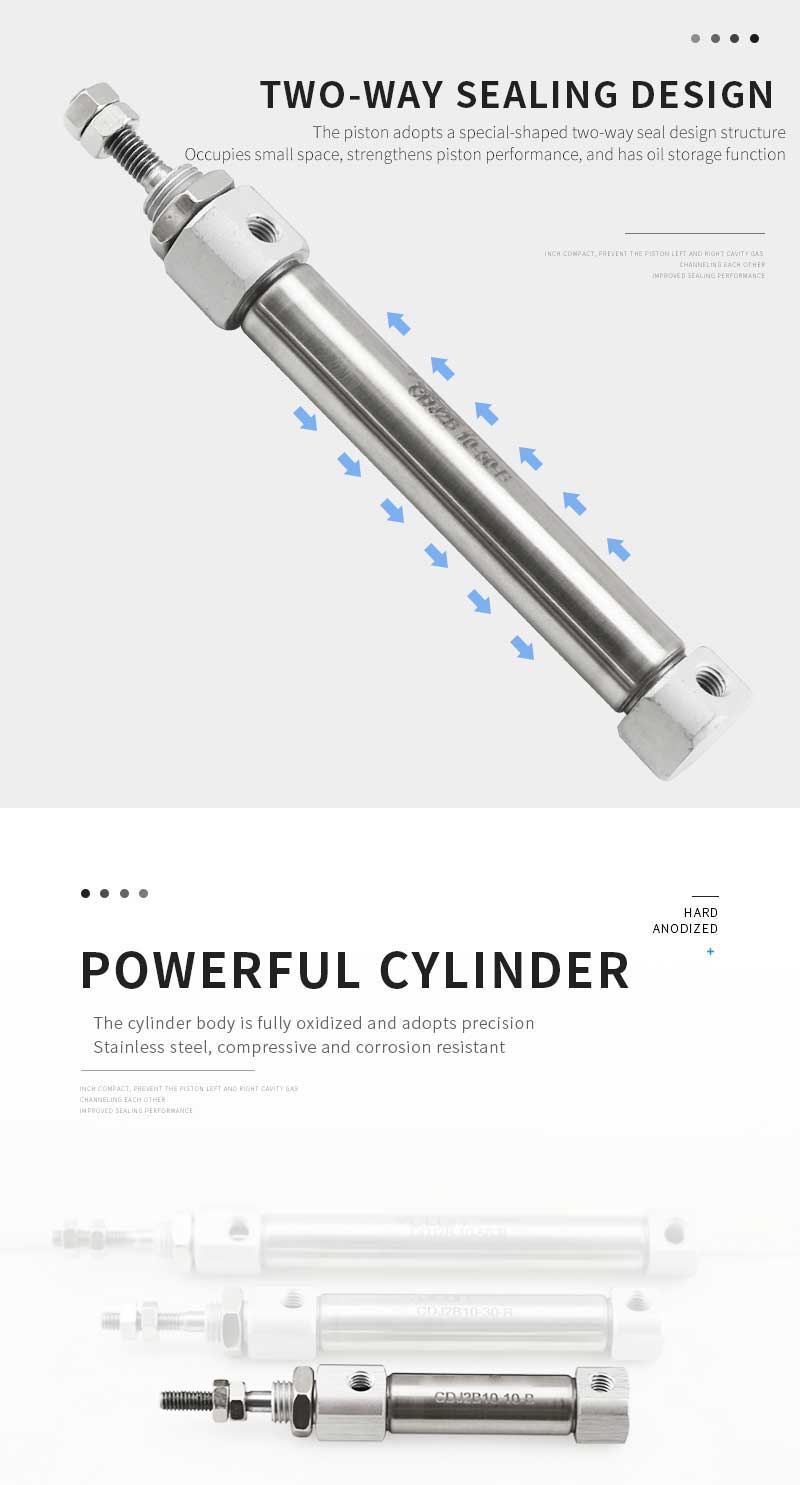

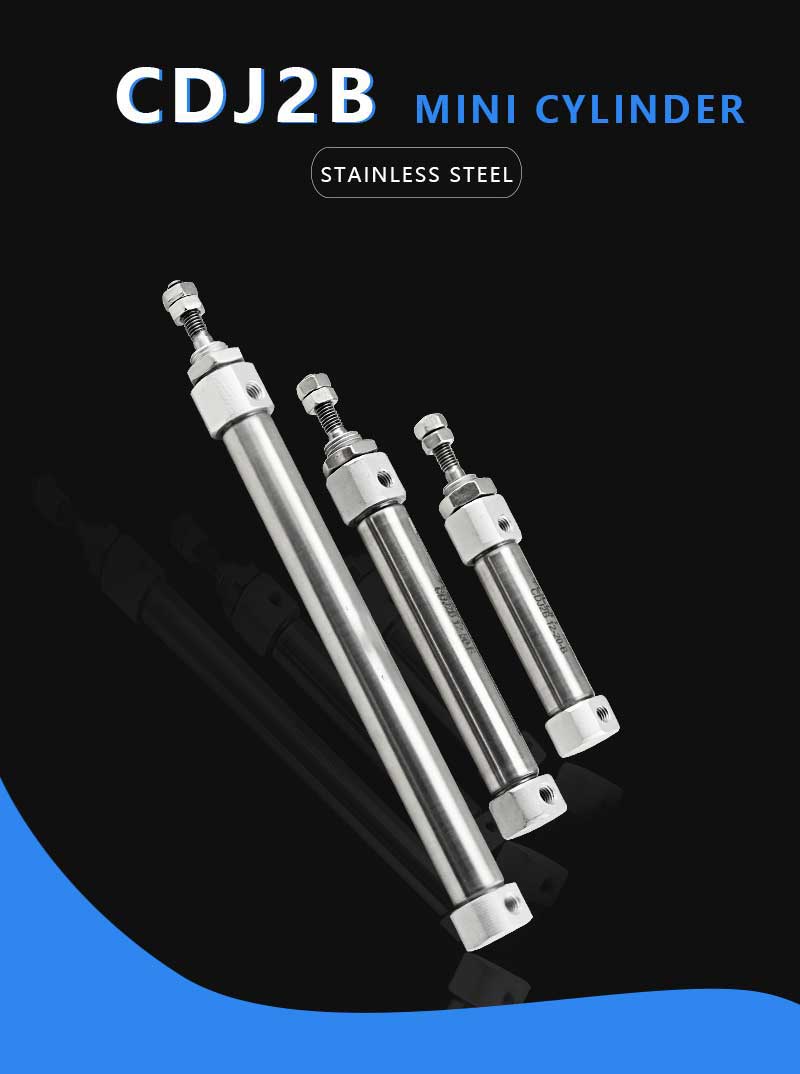

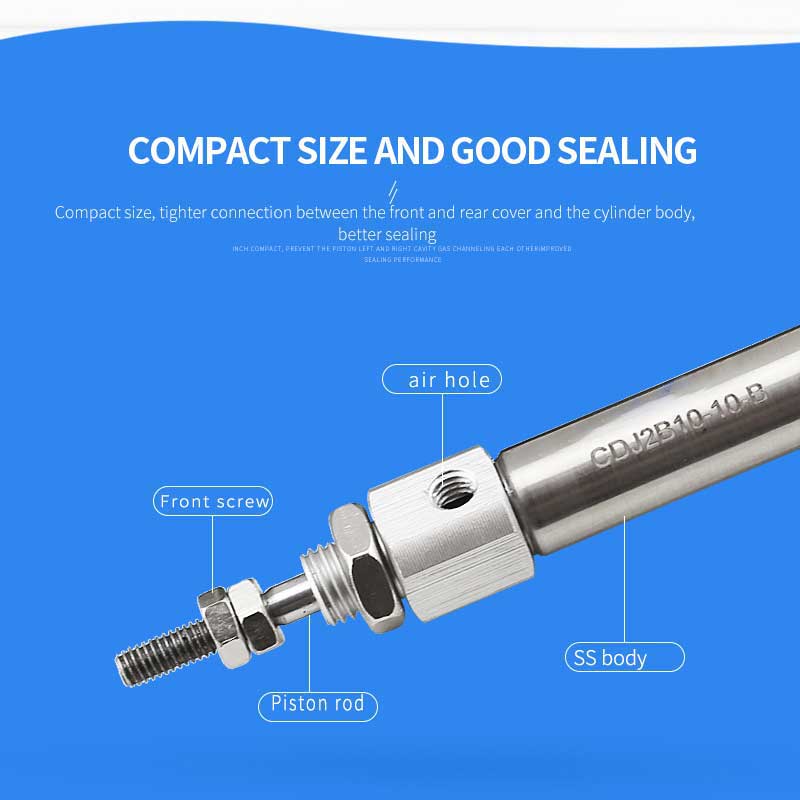

SMC Type PB CDJ2B Type 10mm Bore Size Double Action Mini Pneumatic Cylinder Aluminum Stainless Steel Air 2 units

from

$4.90

Ex Tax: $4.90

Products Sold: 0

Product Views: 104

Maximum Stroke

175mm or custom

Shaft Diameter

10mm

Model Number

Qty

Other attributes
Condition	New
Place of Origin	Shanghai, China
Weight (KG)	0.5
warranty:	1 Year
Port size:	6/10/12/16
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction worksxa0, Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type	New Product 2020
Machinery Test Report	Not Available
Body Material:	Aluminum
Operating Pressure	1.05Mpa
Video outgoing-inspection	Provided
Warranty of core components	Not Available
Core Components	Bearing
Power	Pneumatic
Working medium:	Air
Certificate:	ISO9001
Packing	Carton
Product name:	mini cylinder
Structure:	General Cylinder
Application	Automatic Control
Material	Stainless Steel
Packaging and delivery
Selling Units:	Single item
Single package size:	20X10X25 cm
Single gross weight:	0.250 kg
Packaging Details	one item one carton for MAL 20mm mini cylinder
