Name: Sample Available MGPM Series Slide Bearing Double Acting Aluminum Three-axis Engine Three-rod Pneumatic Cylinders
SKU: SCJ007150
Price: 232.67 USD
Availability: InStock

Sample Available MGPM Series Slide Bearing Double Acting Aluminum Three-axis Engine Three-rod Pneumatic Cylinders

0 reviews - Write a review

from

$232.67

Ex Tax: $232.67

Stock: In Stock
Model: SCJ007150
SKU: SCJ007150

Products Sold: 0

Product Views: 206

Available Options

Model Number

Shaft Diameter

40mm

Maximum Stroke

500mm

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Specifications

Other attributes
Condition	New
Place of Origin	Shanghai, China
Weight (KG)	1
warranty:	3 months
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction worksxa0, Energy & Mining, Food & Beverage Shops
Standard or Nonstandard	Standard
Marketing Type	New Product 2020
Machinery Test Report	Not Available
Body Material:	Aluminum
Video outgoing-inspection	Provided
Operation Fluid	Air
Warranty of core components	Not Available
Core Components	cylinder
Power	Pneumatic
Operation Pressure	1.5Mpa(15.3kgf/c㎡)
Min Operation Pressure	1.5Mpa(15.3kgf/c㎡)
Ambient and fluid temperature	5~+60℃
Bore size	12--100 Mm
Piston Speed	50~500mm/s
Buffer	Rubber Buffer

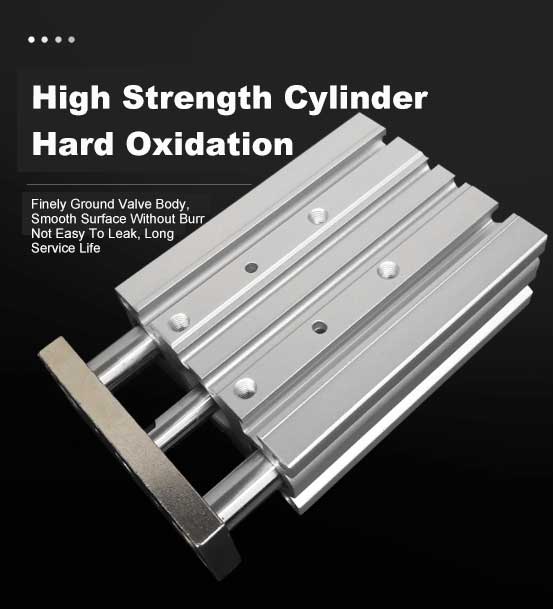

Product name:	MGPM Bore 40mm Tri-rod cylinder
Structure:	General Cylinder
Operation	Double Acting
After Warranty Service	Online support
Packaging and delivery
Selling Units:	Single item
Single package size:	9.5X5.3X1.2 cm
Single gross weight:	8.000 kg
Packaging Details	20PCS/CARTON for MGPM Bore 40mm Tri-rod cylinder

Description

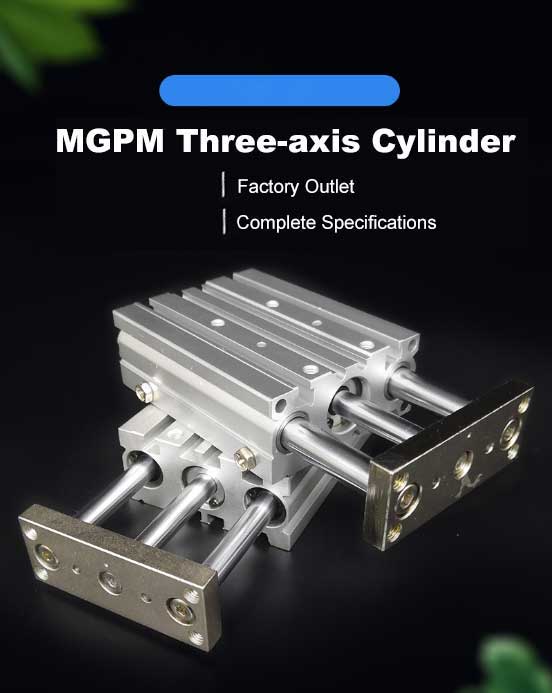

Product Name	Three-axis Cylinder	Action	Double Acting
Fluid	Air	Pressure Range	0.1~1.0Mpa
Proof Pressure	1.5Mpa	Working Temperature	-10~60℃
