SmartMeter 100A LCD KWh Energy Meter with Three-Phase Backlight Guide Rail for Home Use Energy Monitoring 3*127/220VAC Power Consumption Measurement

SmartMeter 100A LCD KWh Energy Meter with Three-Phase Backlight Guide Rail for Home Use Energy Monitoring  3*127/220VAC  Power Consumption Measurement
Features:

Three-phase four-wire electronic type energy meter with a reference current of 100A.

The high accuracy level of 1.0 and the constant pulse of 400imp/kWh for precise energy monitoring.

LCD display with 6 + 2 digits for clear visibility of readings.

Low power consumption of ≤2W, 10VA, ensuring energy efficiency.

Durable construction with a combination of metal and ABS material, weighing only 350g for easy installation and handling.

Specifications:

Material: Metal + ABS

Reference Voltage: 3127/220V, 3230/400V

Reference Current: 100A

Accuracy Level: 1.0

Rated Frequency: 50Hz/60Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 + 2

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°C

Storage Temperature: 25 ~ 70°C

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.8-1.15 Rated Voltage

Average Humidity Value of Year: ≤75%

Type: Three Phase Four Wire Electronic Type

Weight: 350g

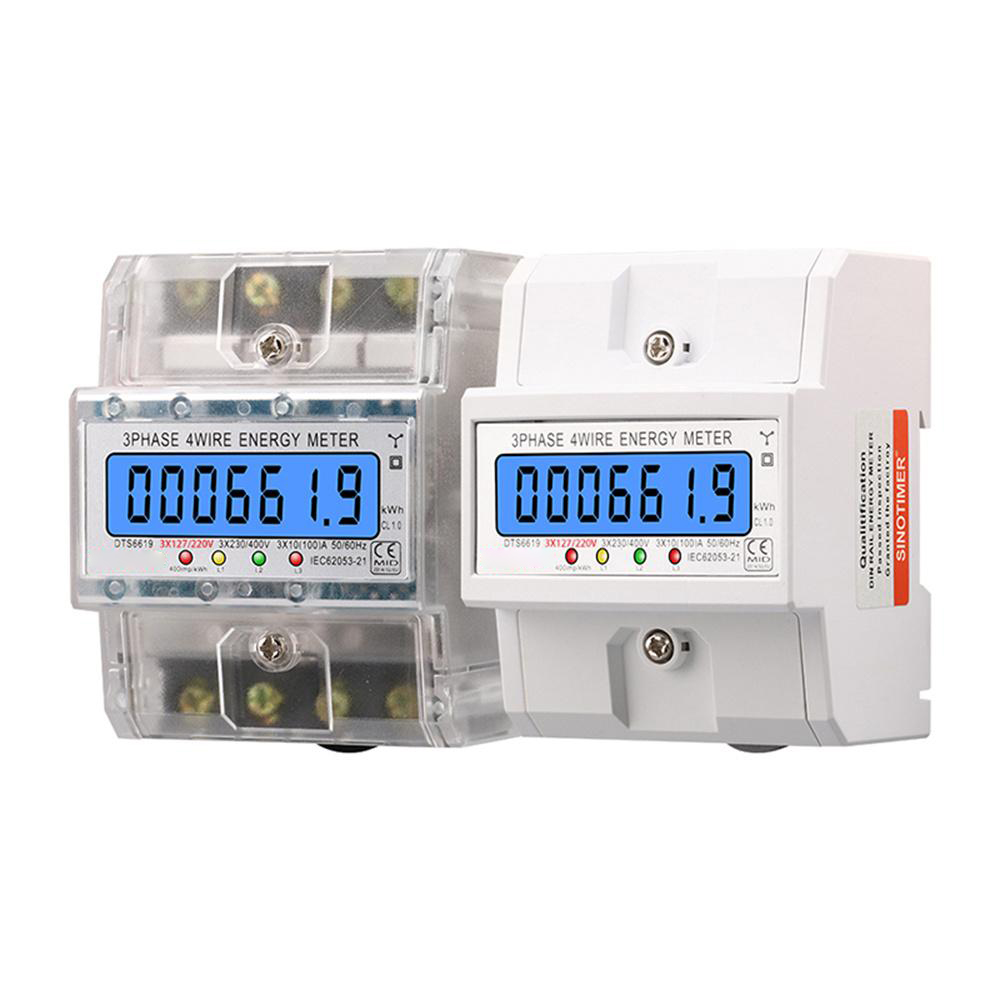

Optinoal Shell Color: White / Transparent

Package Included:

1 x Energy meter (Shell color as your choice)

1 x English operation manual
