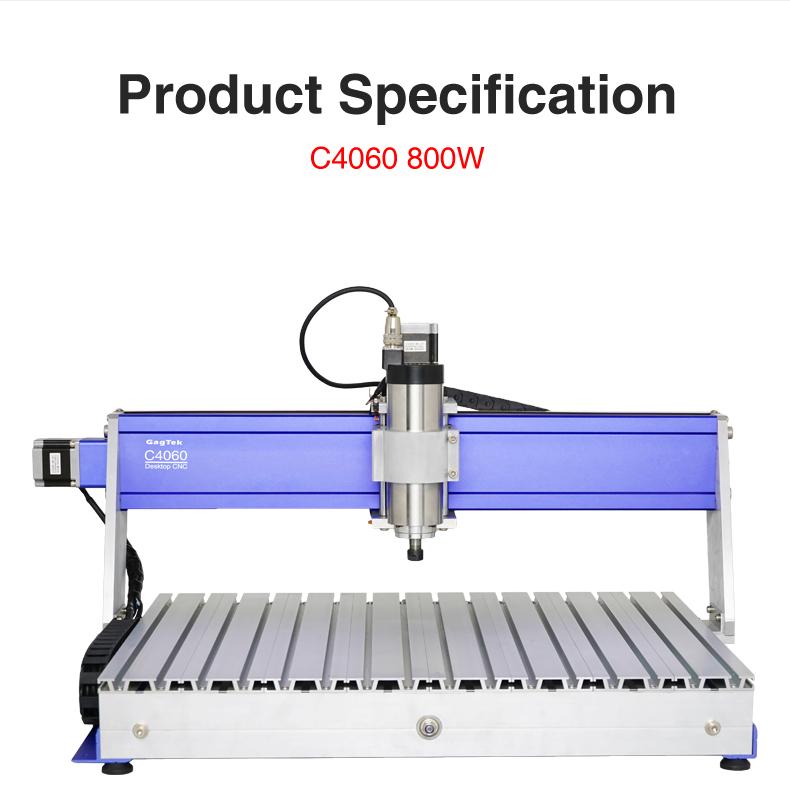

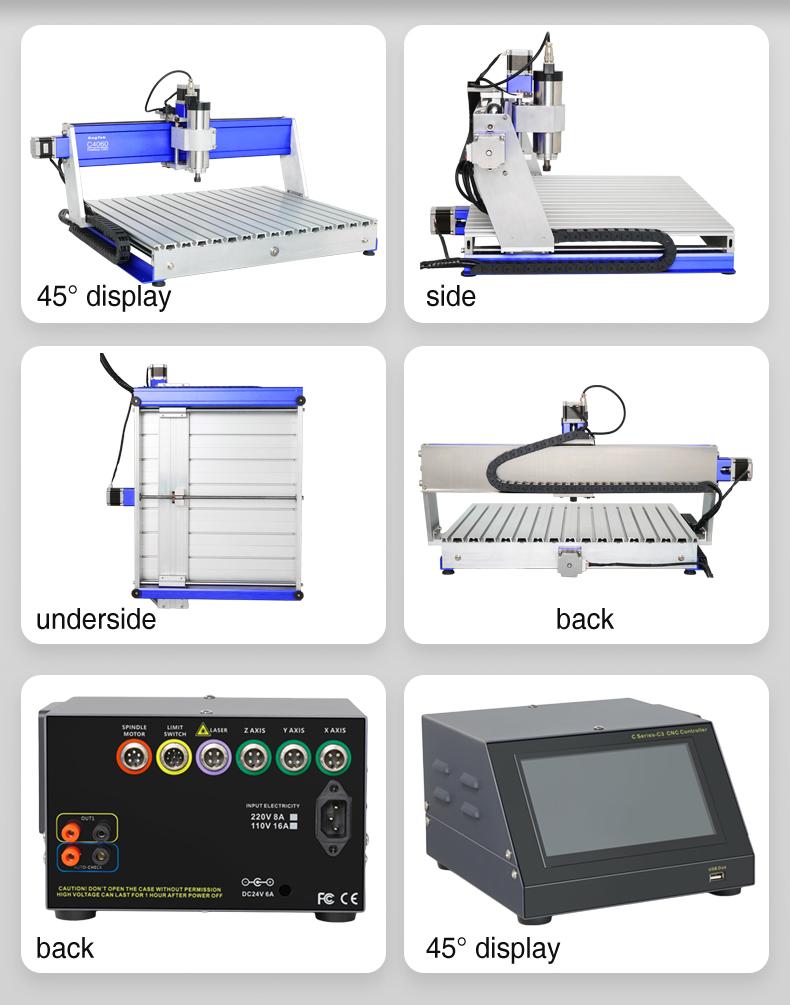

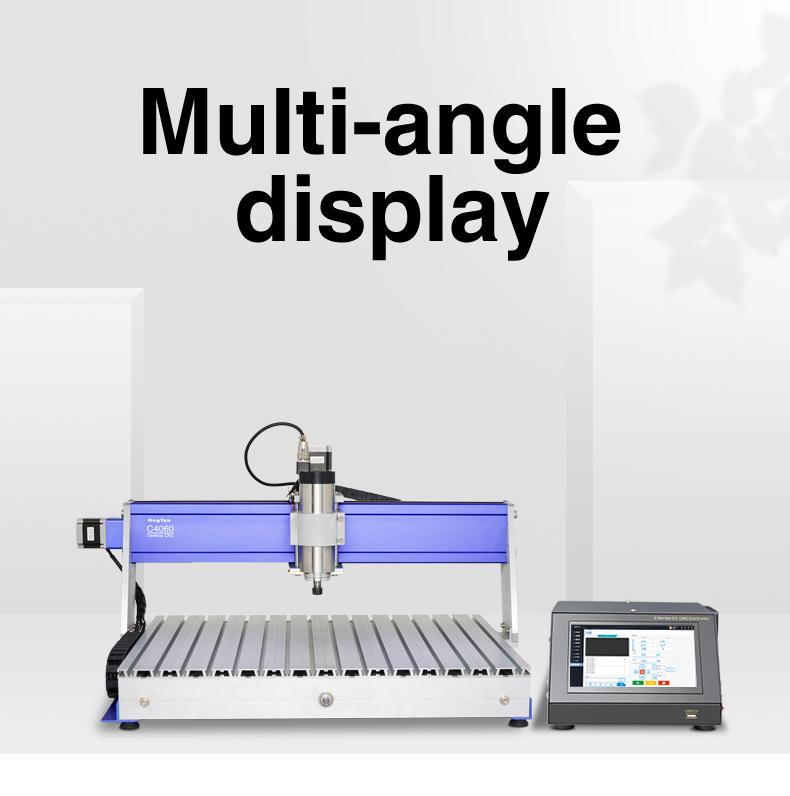

Socoje C4060 15.7' X23.6' BenchTop CNC Router For Aluminum Wood Deskt

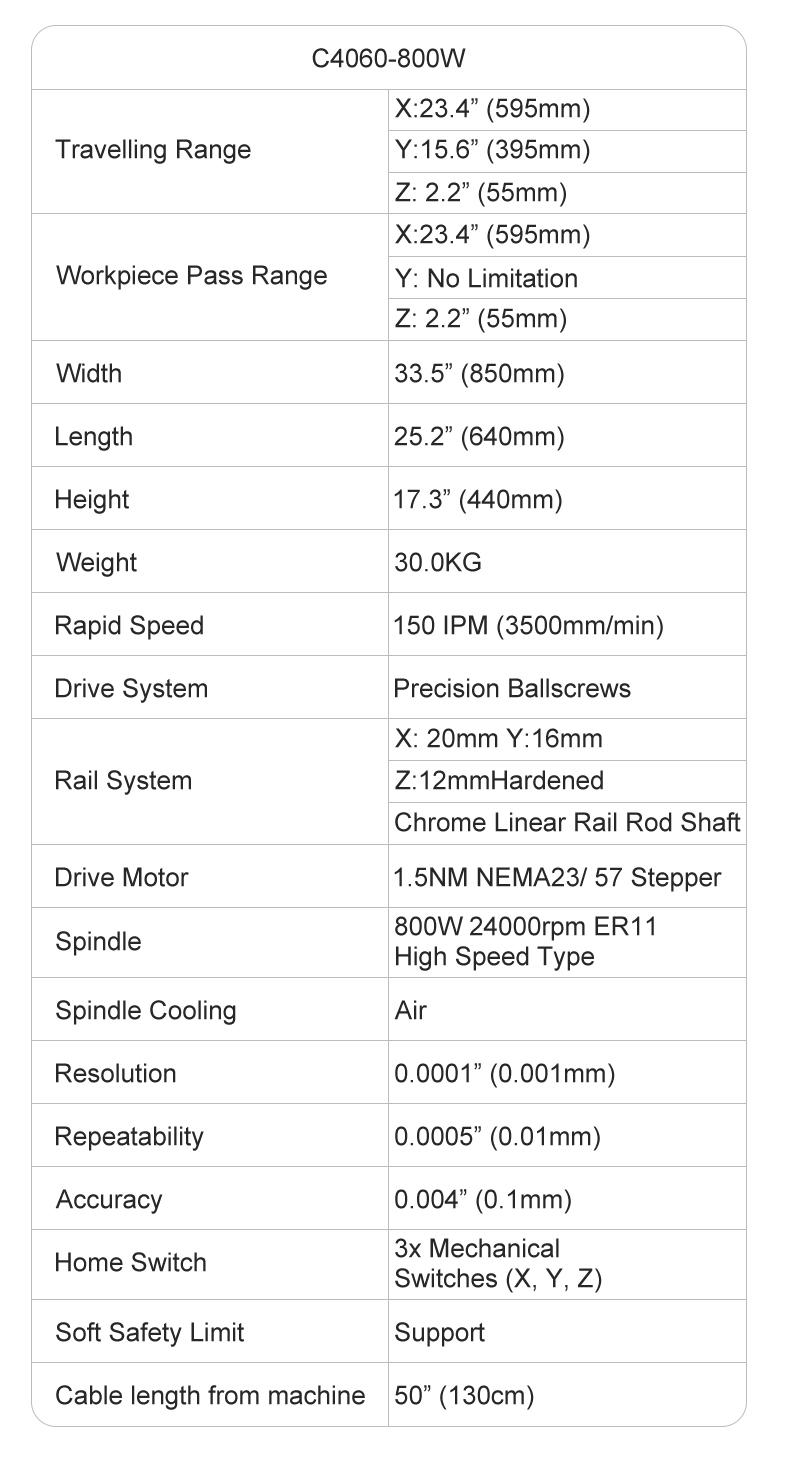

Machine:

1） Ballscrew-driven on all axes for high accuracy and repeatability.

2）Integrated aluminum T-slot hold down table.

3）95% assembly product, ~20 minutes installation time.

4） 90% Molded stretching aluminum structure, with high accuracy and rigid structure. Making it can easy working with a host of materials, from plastic to aluminum and other non-ferrous metals.

5)  Hard homing switch at XYZ three-axis

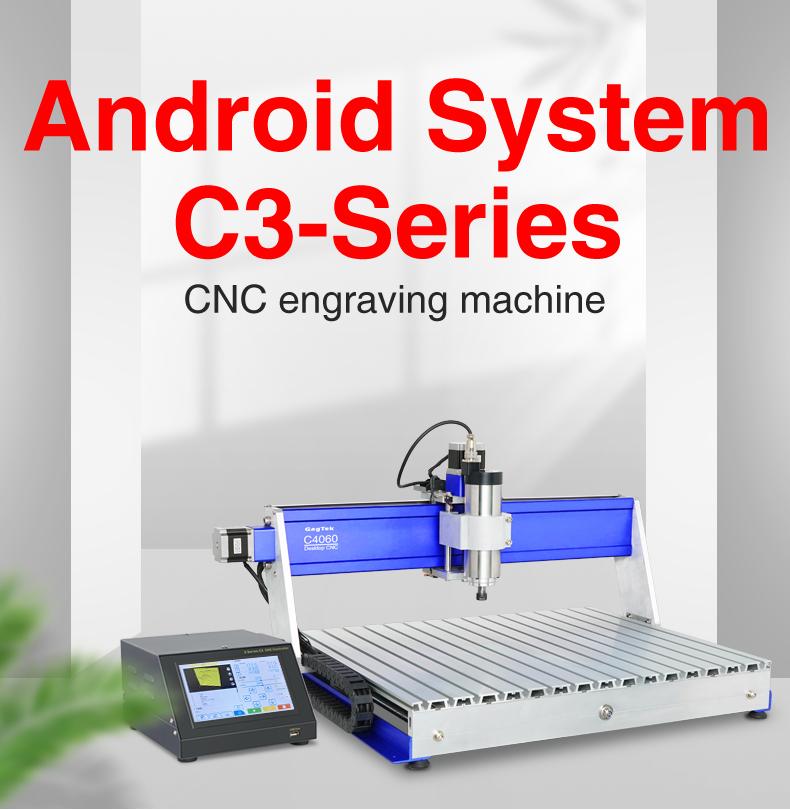

6）Include an independent C-Series Controller Box, that works without a PC.

7） Code programmable spindle speed control.

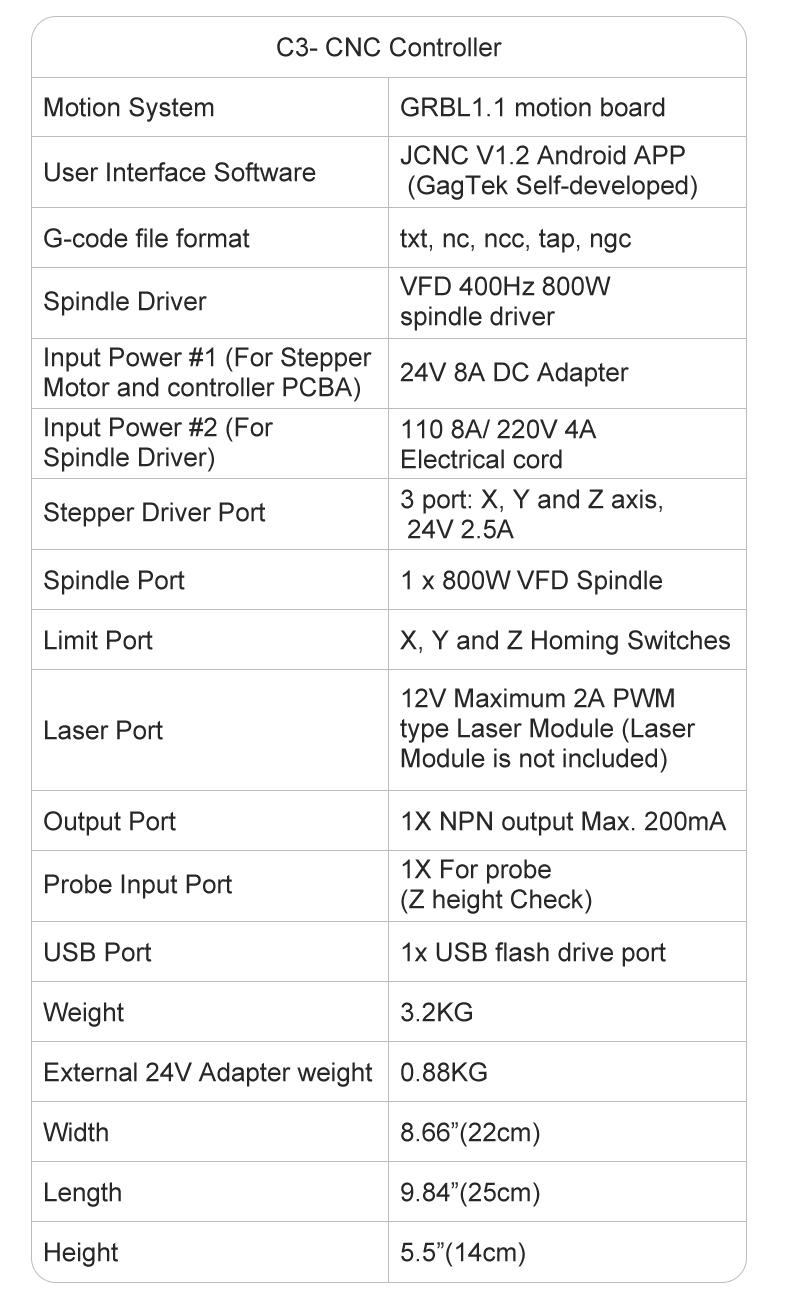

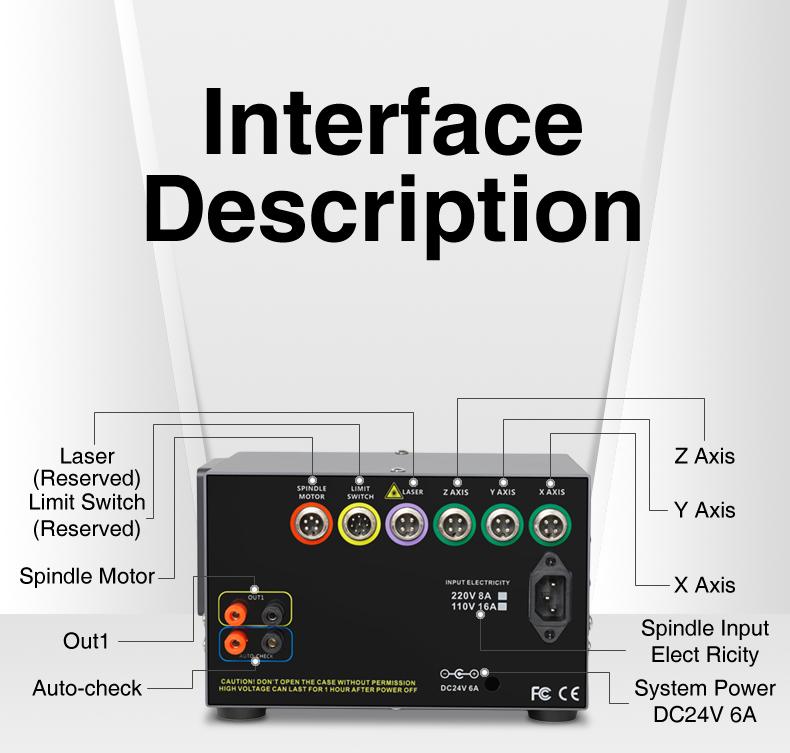

Controller:

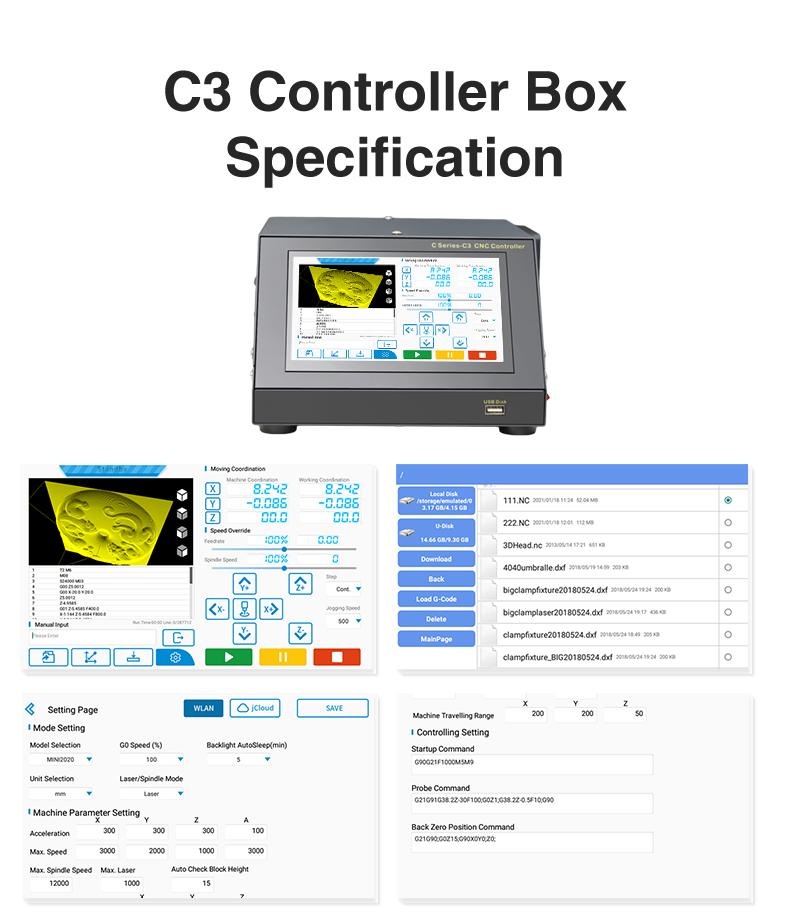

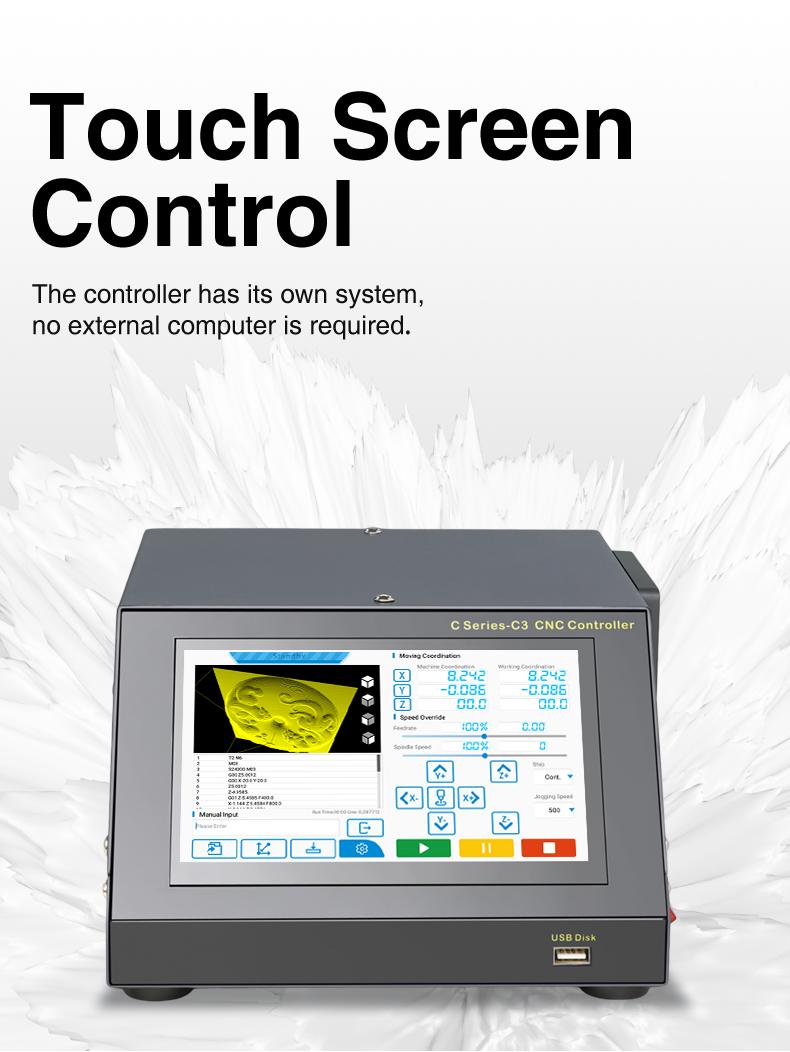

1) C-Series Independent Controller Box, including CNC running core processing board with stepper driver, an android high performance capacitive touch-screen panel and a VFD spindle driver.

2) No external PC is needed to run the machine.

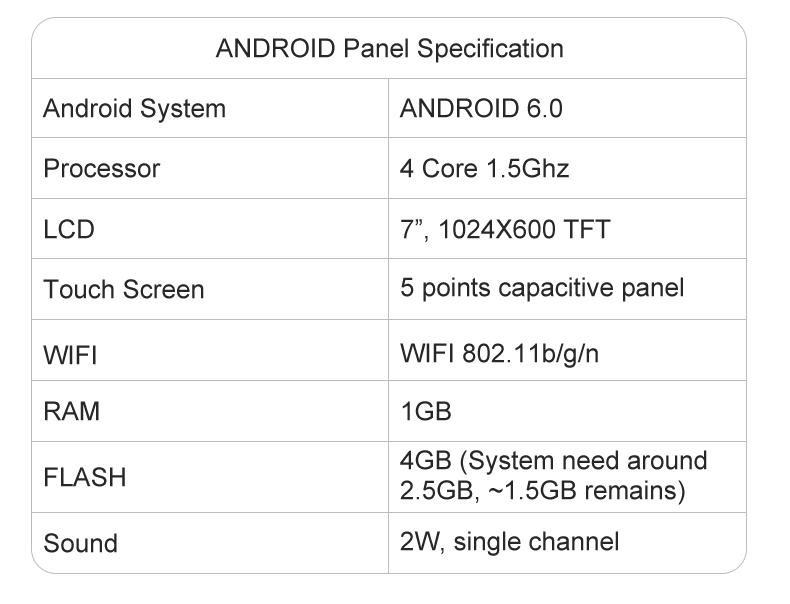

3) Android panel is used as user-interface with capacitive touch screen, using our application JCNC, making it easier to control the machine. And easy to upgrade the app with new function from our website.

4) Wi-Fi is embedded and transfers the g-code int he user’s Cloud Storage.

5) Internal 4GB flash memory and one external USB Flash drive port.

6) One NPN output can direct the relay, LED light, and buzzer.

7) One auto check port for tool checking.

8) Small size can be placed next to the machine.

9) Quick power on ~30s, much faster than PC

10) High stability can engrave extra-large g-code more than a million g-code lines.

11）A Power Switch / Emergency Switch at the right side of the controller
