Socoje ST182 Digital Clamp Meter DC/AC Voltage Tester Clamp Multimeter Hz Capacitance NCV Ohm Test
from
$14.99
Ex Tax: $14.99
- Stock: In Stock
- Model: SCJ002934
- SKU: SCJ002934
Products Sold: 0
Product Views: 656
Ask a Question About This Product
- Description
Socoje ST182 Digital Clamp Meter DC/AC Voltage Tester Clamp Multimeter Hz Capacitance NCV Ohm Test
Description:
Description:

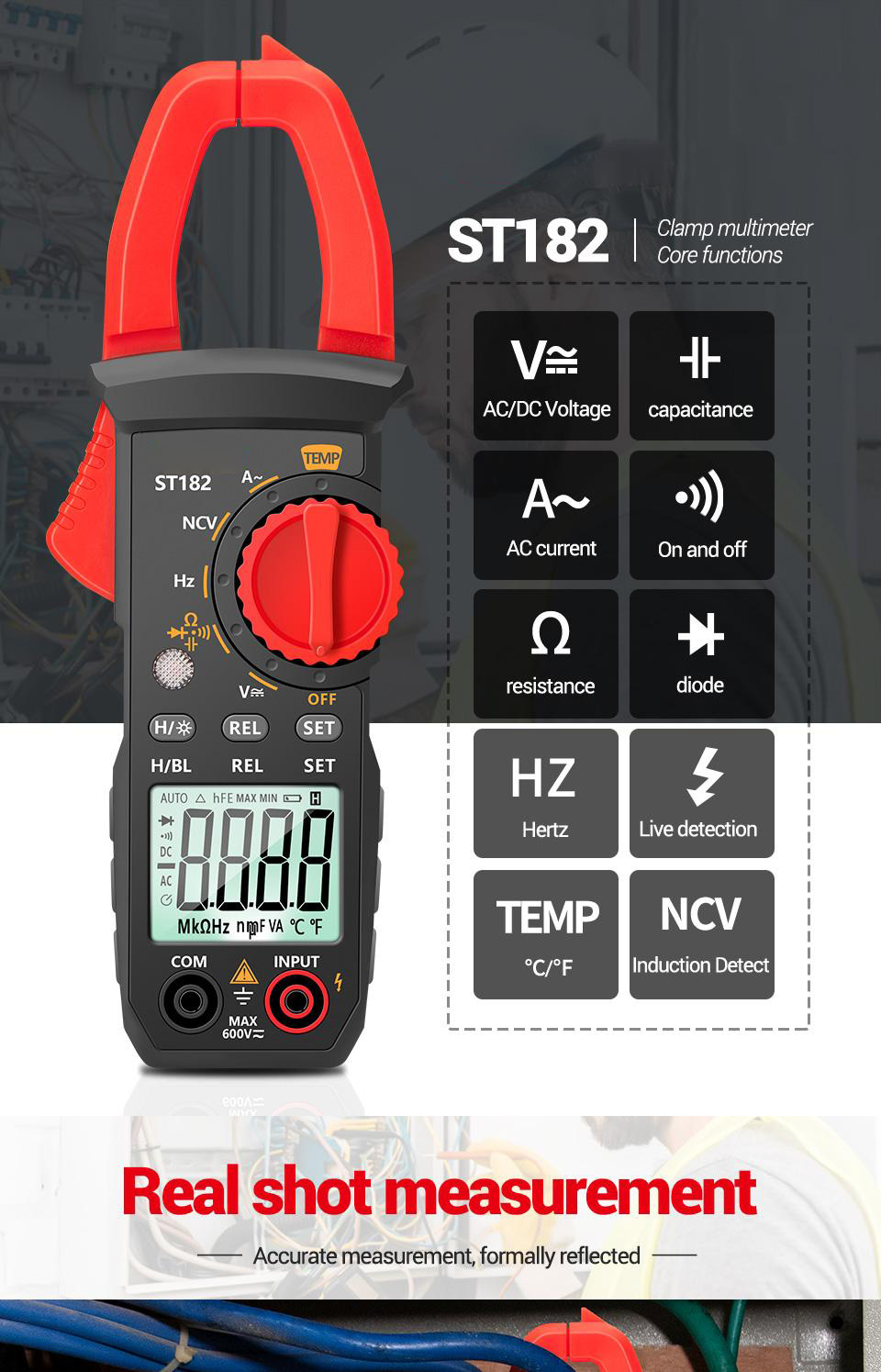

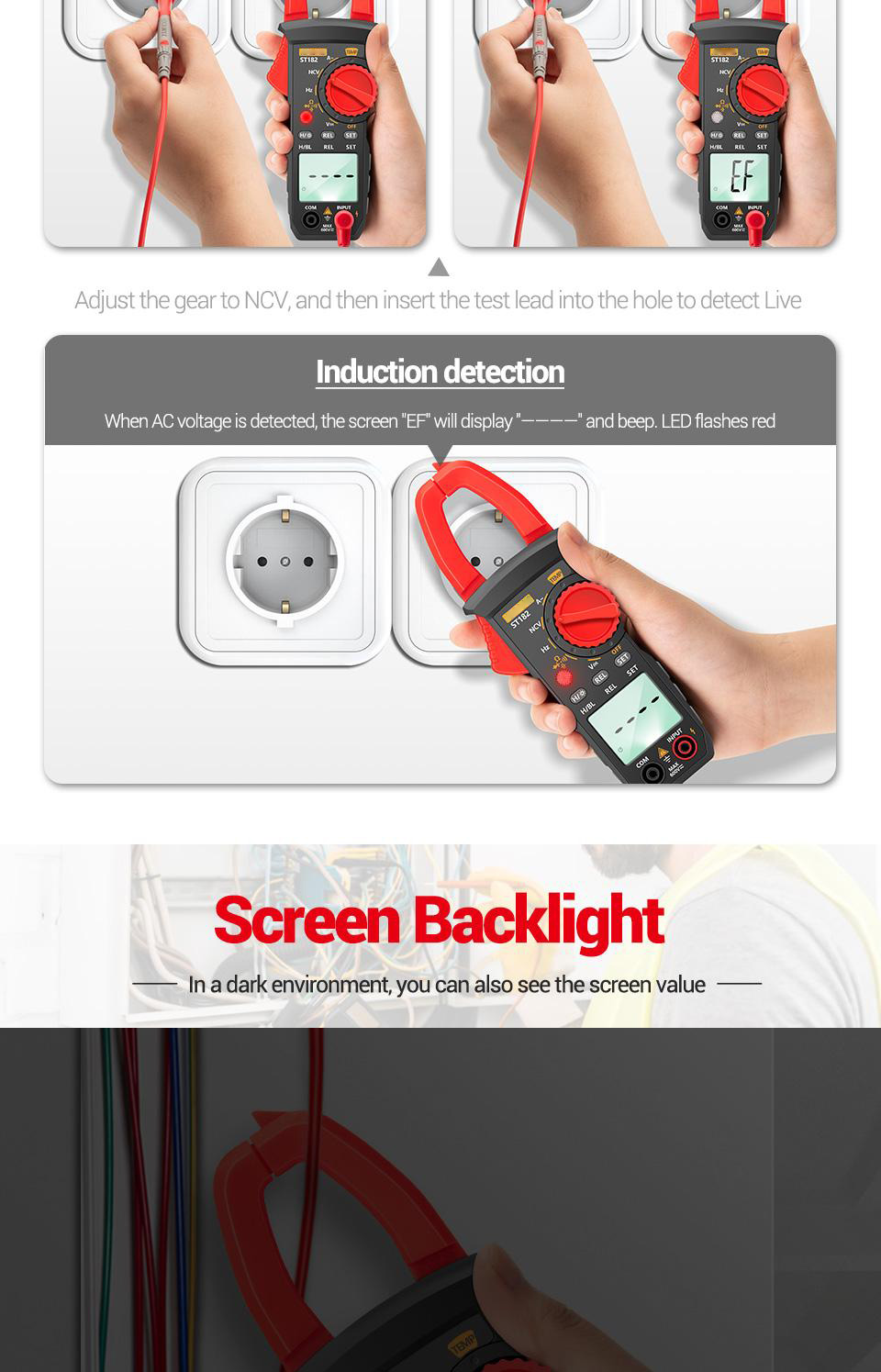

This instrument performs AC/DC voltage, AC Current, Resistance, Audible Continuity, Diode, Temperature measurements and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc. It is an auto-ranging DMM with an AC current clamp meter function.
Specification:
Brand
|
socoje |
Model
|
ST182
|
|
Range
|
Accuracy
| |
AC Voltage
|
4V/40V/400V/600V
|
± (1.5% + 3)
| |
DC Voltage
|
400MV
|
± (1.5% + 5)
| |
|
4V/40V/400V/600V
|
± (1.0% + 3)
| |
Resistance
|
400Ω/4kΩ/40kΩ/400kΩ/4MΩ
|
± (1.2% + 3)
| |
|
40MΩ
|
± (1.5% + 5)
| |

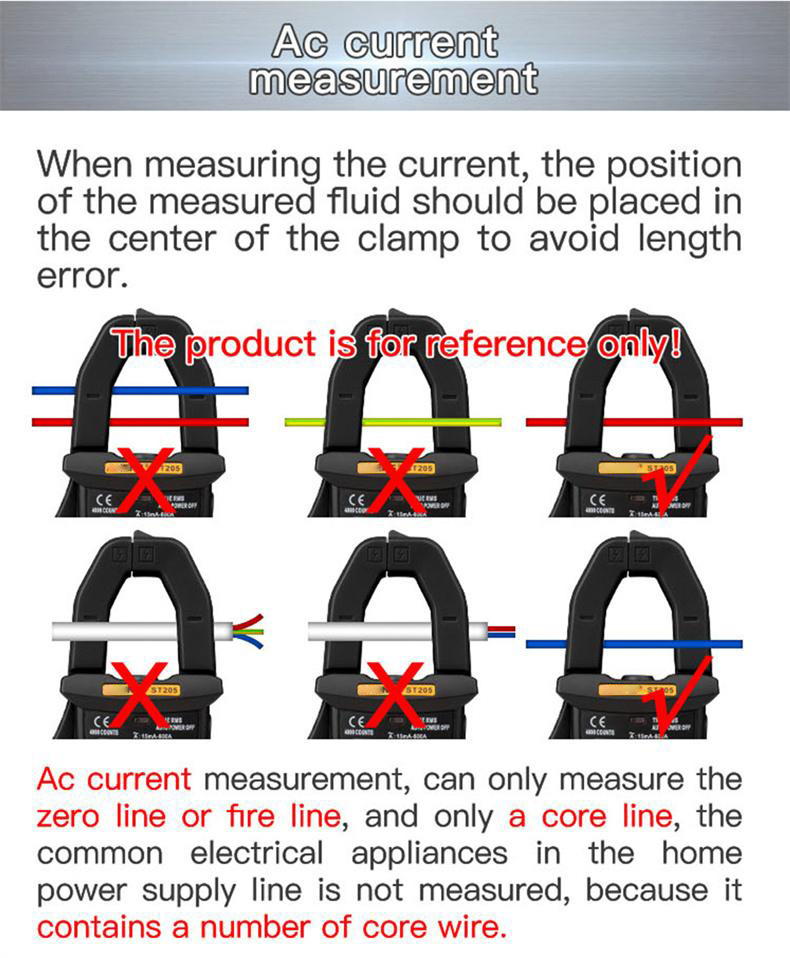

AC Current
|
40A/400A
|
± (2.5% + 3)
| |
Frequency
|
10Hz~400kHz
|
± (1.0% + 5)
| |
|
400kHz~4MHz
|
± (2.0% + 5)
| |
Capacitance
|
1nF~4uF
|
± (2.5% + 10)
| |
|
4uF~400uF
|
± (4.0% + 20)
| |
|
4mF
|
± (5.0% + 30)
| |
Temperature
|
0℃~400℃/32℉~752℉
|
±(2.0%+1℃)
| |
|
400℃~750℃/752℉~1382℉
|
±(2.5%+1℃)
| |

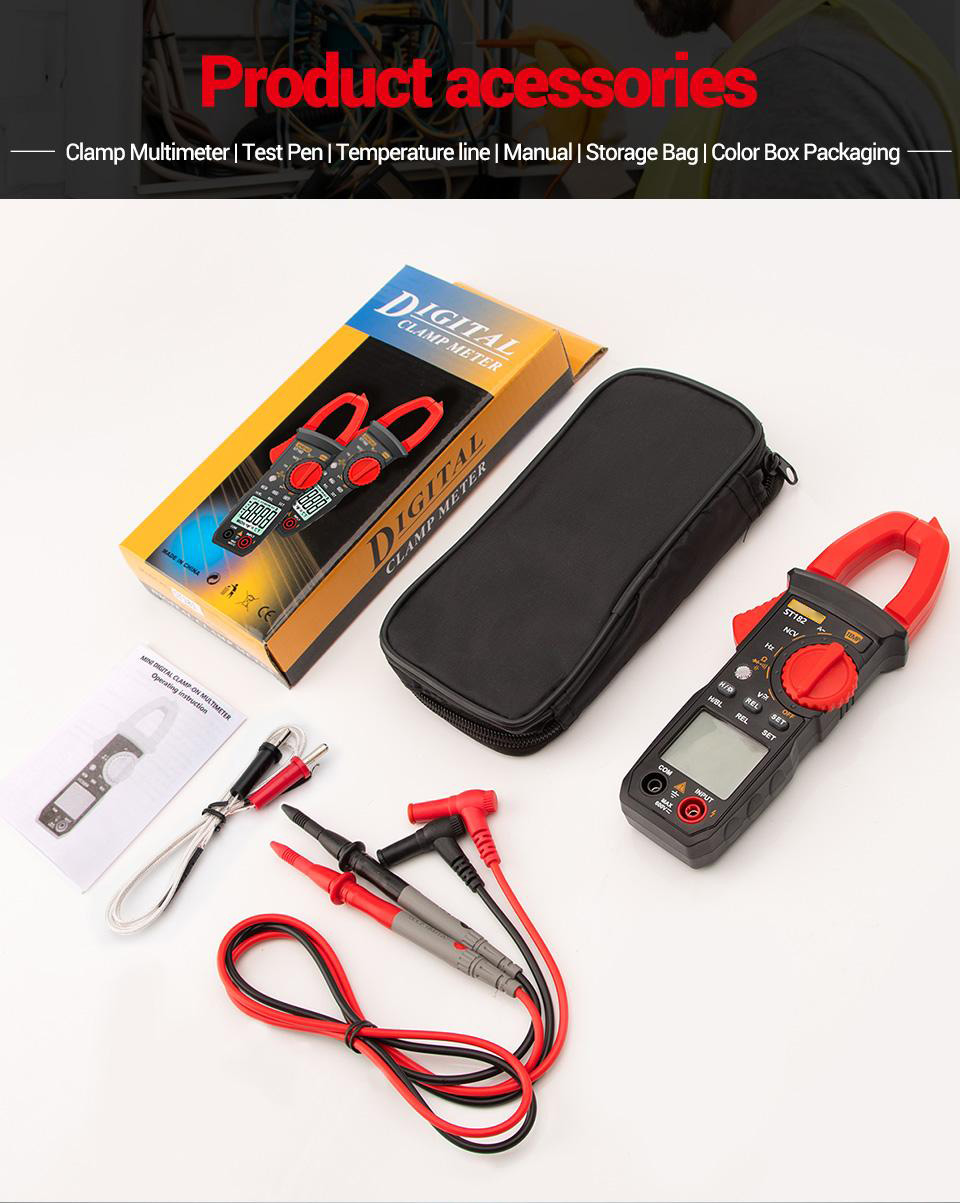

Package included:
1 x ANENG ST182 Clamp Multimeter
1 x Black Packing Bag

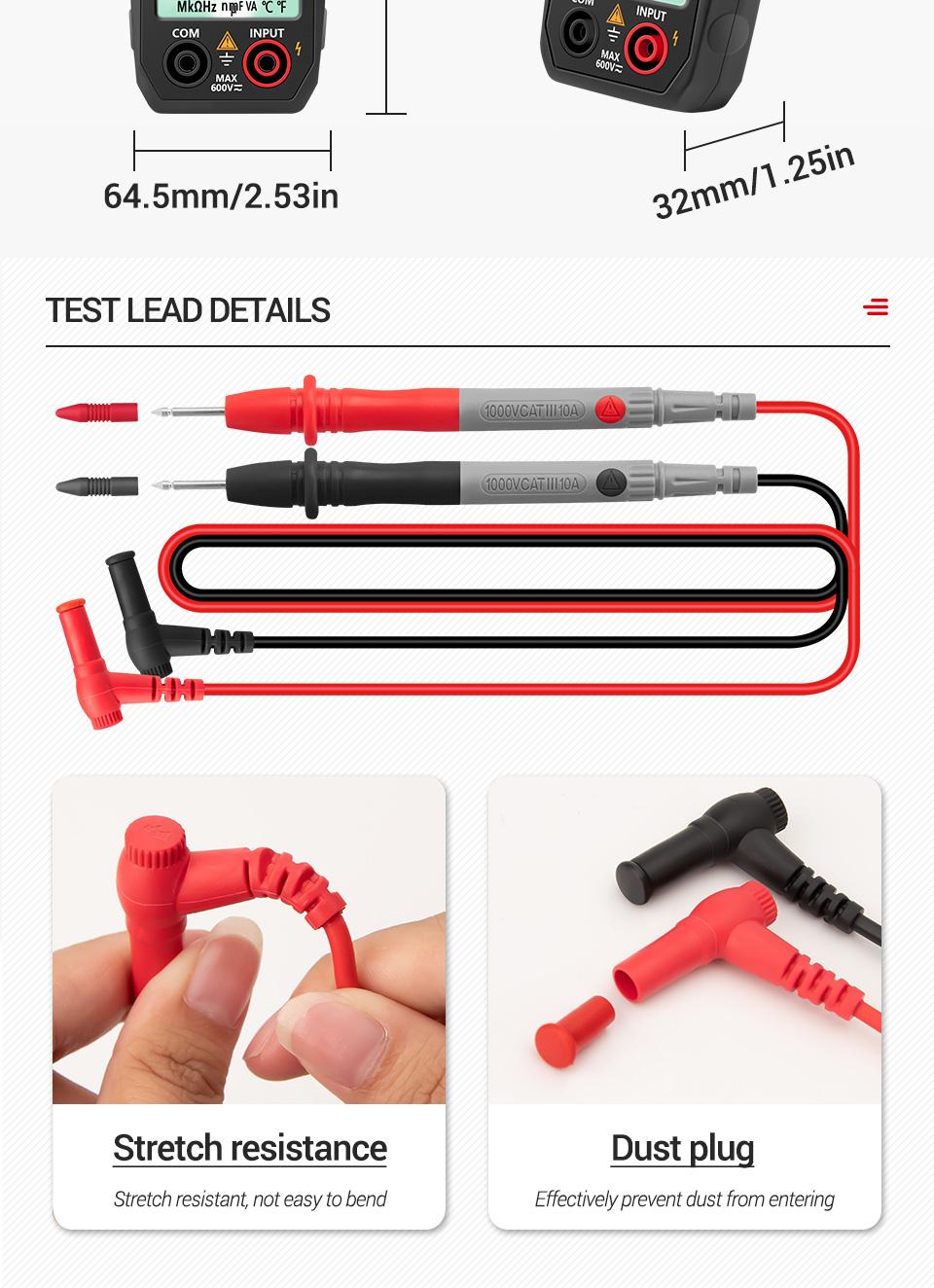

1 x Test Pen
1 x Temperature line
1 x English User Manual

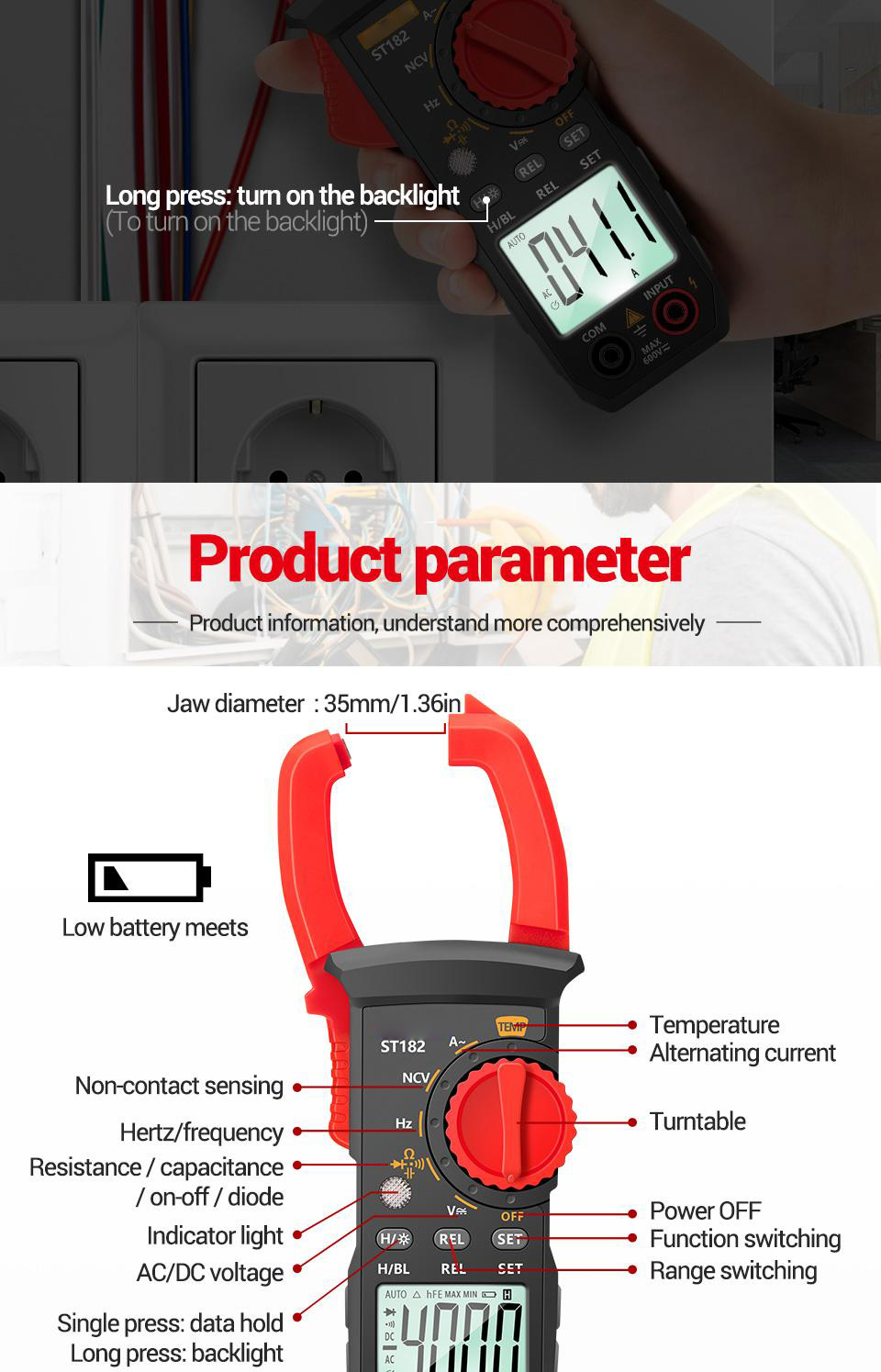

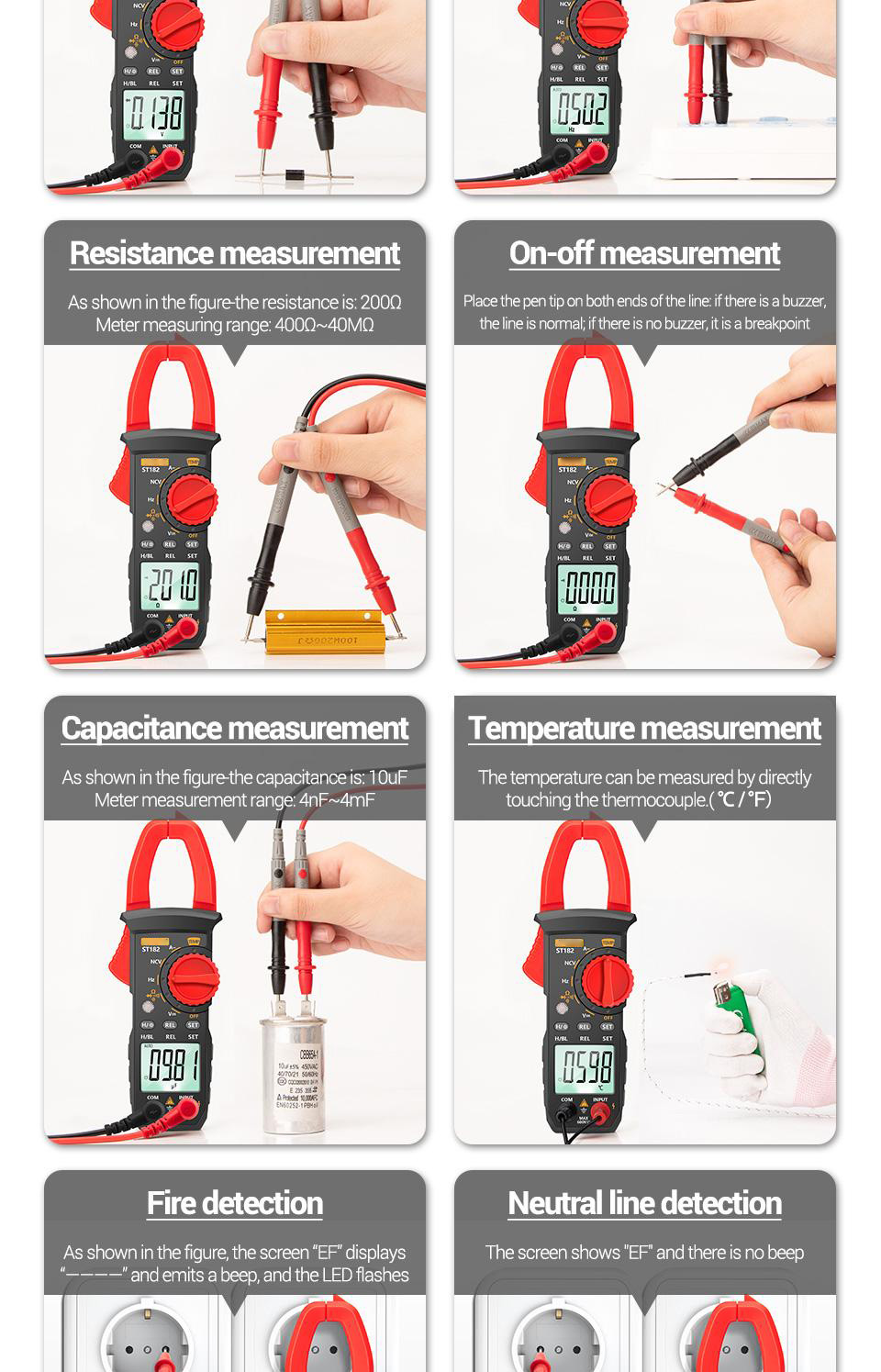

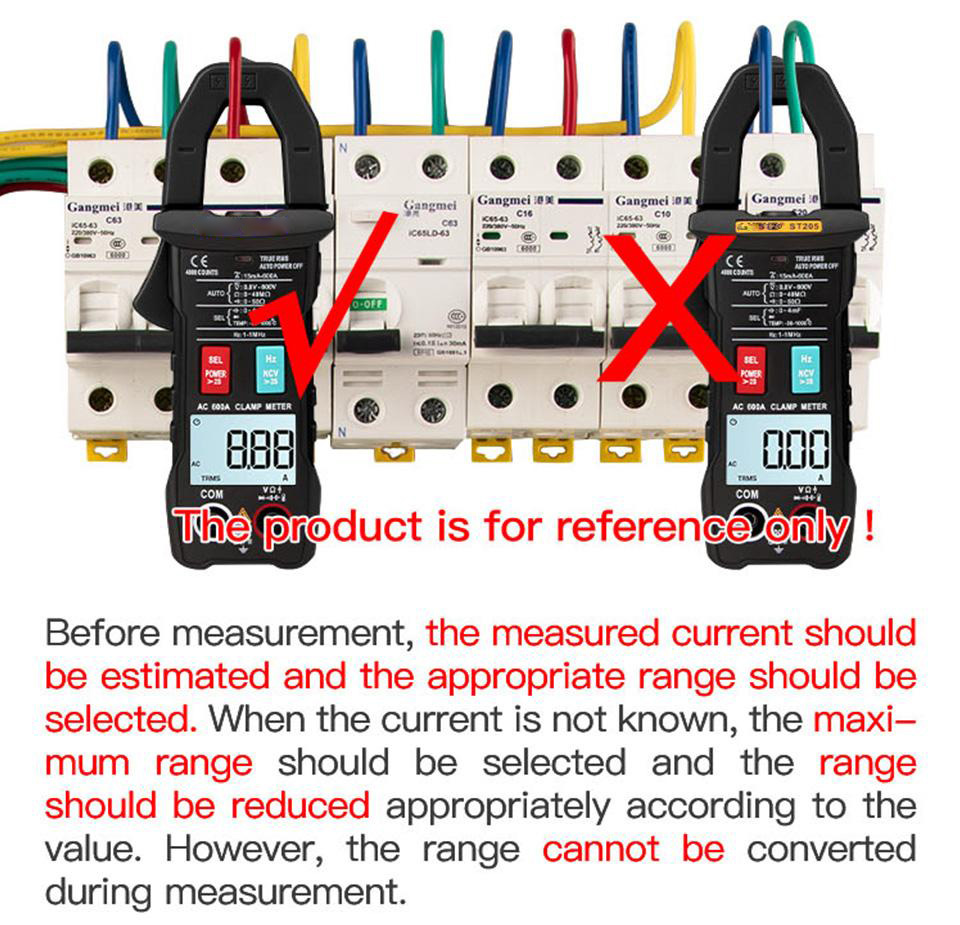

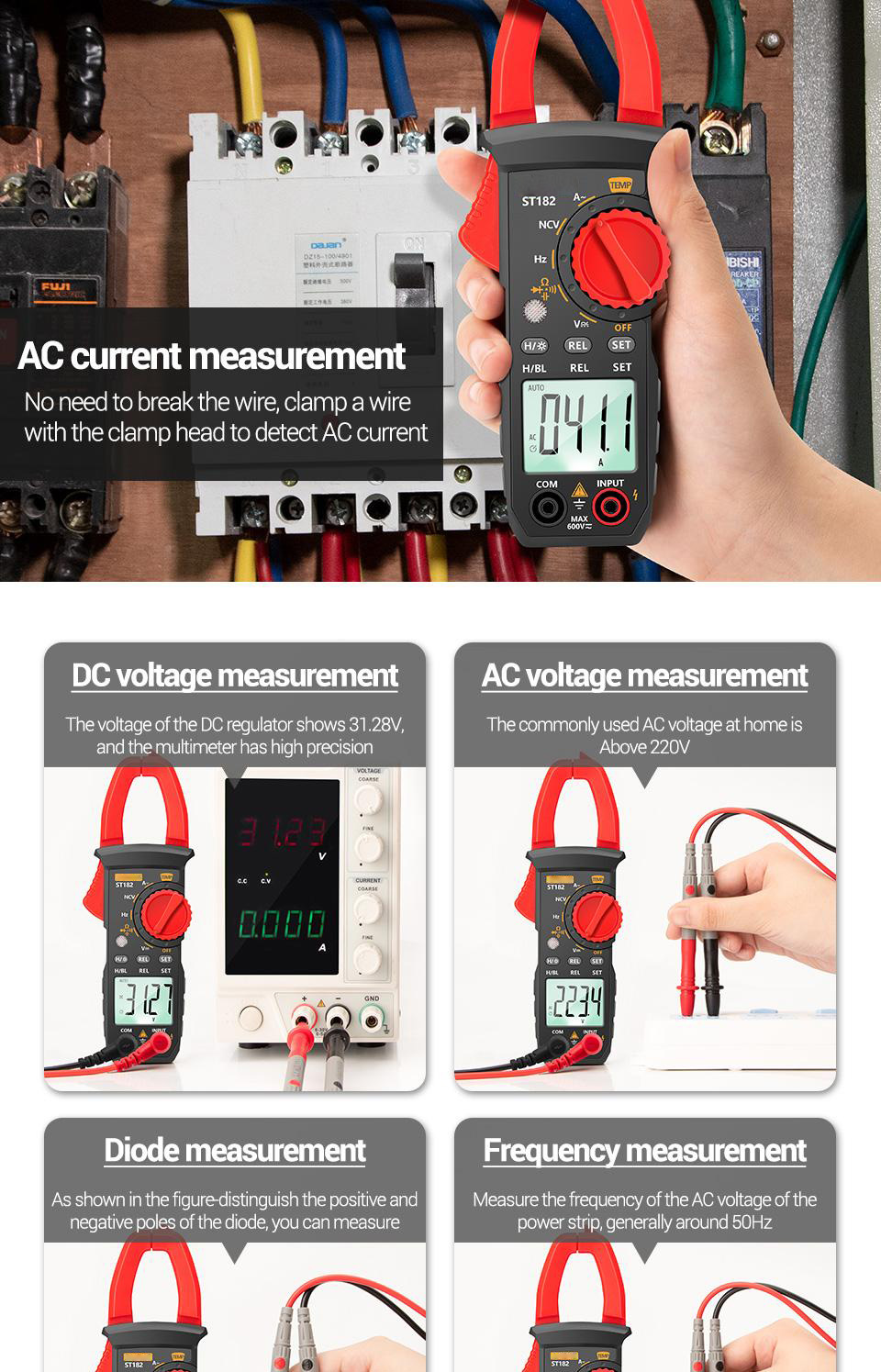

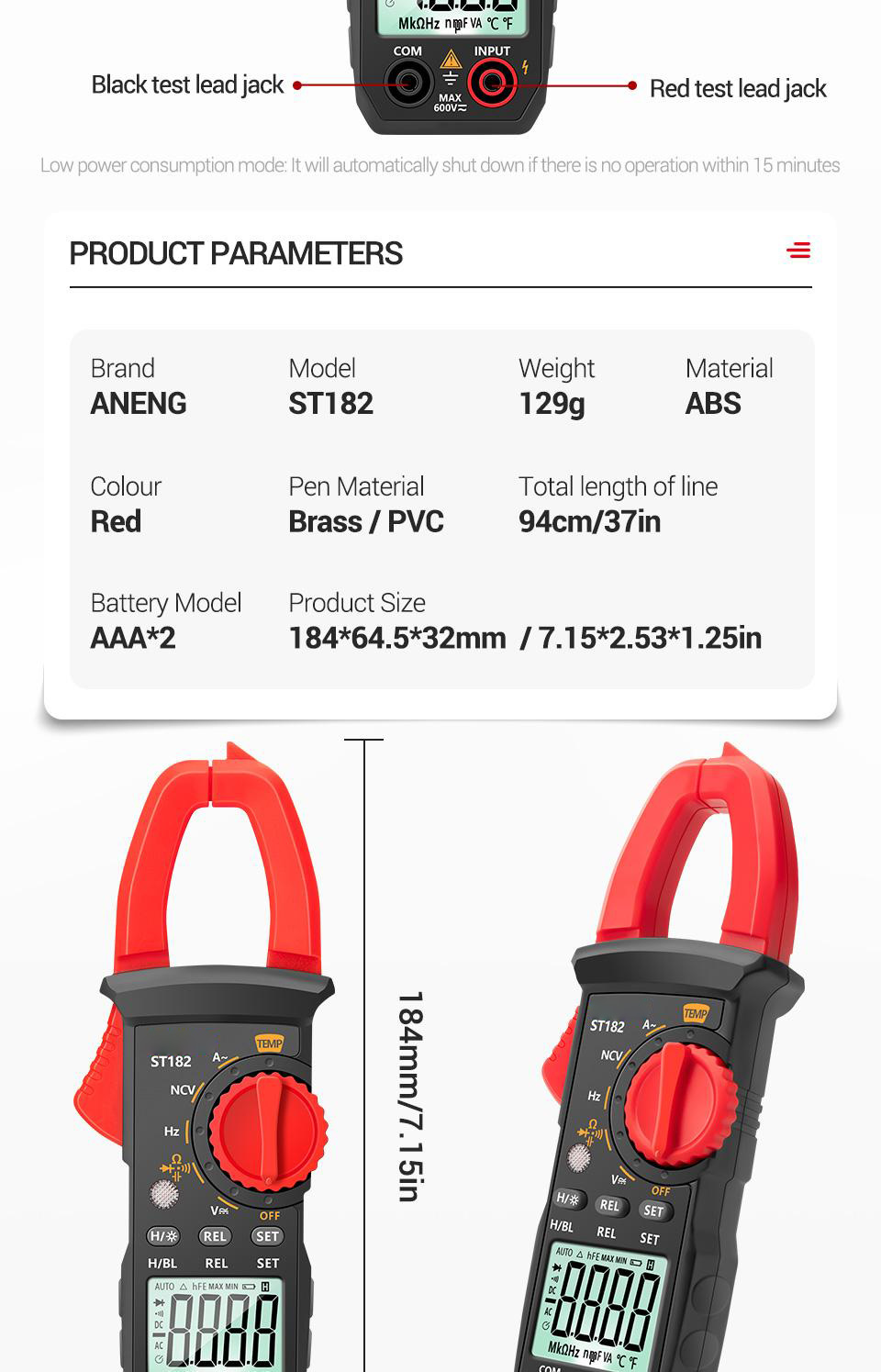

Details Pictures:
