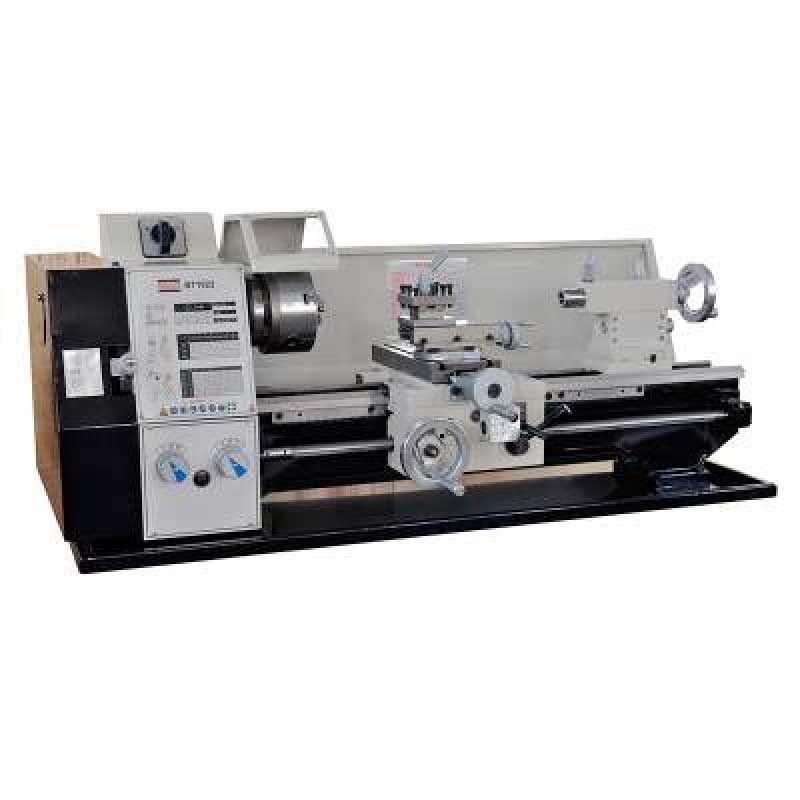

Socoje Tools 10 inch x 22 inch Bench Metal Lathe - Metal Lathes BT1022
from
$1,512.00
Ex Tax: $1,512.00
- Stock: In Stock
- Model: SCJ004450
- SKU: SCJ004450
Products Sold: 0
Product Views: 100
Ask a Question About This Product
- Description
About this product
Socoje Tools is known for manufacturing only top-notch metalworking machine tools including metal lathes, milling machines, CNC lathes, and more. The BT1022 is a bench metal lathe used in the metalworking industries.
SPECIFICATIONS:
- A. L: 43.1"; W: 25.6"; H: 20";
- B. Bed Width: 5.3";
- C. Spindle Bore: 0.82";
- D. Spindle Taper---# 3 Morse Tape;
- E. Tailstock Taper--# 2 Morse Taper;
- F. Weight(Net): 275LBS;
- G. Weight(Shipping)--320lbs;
- H. Crate Size--47.3"x26.8"x22";
- I. Swing Over Bed---10";
- J. Swing Over Saddle--5.5";
- K. Carriage Trave---21.5";
- L. Max Tool Size--0.55" x 0.55";
- M. Distance Between Centers--21.5";
- N. Compound Travel-2";
- O. Cross Slide Travel---2.75";
- P. Tailstock Barrel Travel---2.5";
- Q. Spindle Speeds---125~2400RPM;
- R. Feed Rate Range--0.0008"-0.039";
- S. Thread Range Inch---15 @8 TPI-35TPI;
- T. Thread Range Metric---17@ 0.1mm-2.5mm
- U. Motor: Horsepower--1HP(750w);RPM--1700;
- Standard Accessories: 1. 5" 3-Jaw Chuck w/Two Sets of Jaws;
- 2. -# 2 Morse Taper Dead Center;
- 3. # 3 Morse Taper Dead Center;
- 4. Tool Box & Tool Kit;
