Socoje Tools 12in x 30in Gear-Head Metal Lathe With Stand & Coolant System Stand Included! CQ9332A
from
$2,542.50
Ex Tax: $2,542.50
- Stock: In Stock
- Model: SCJ004435
- SKU: SCJ004435
Products Sold: 0
Product Views: 101
Ask a Question About This Product
- Description
About this product
This gear head metal lathe with stand and coolant system is a bargain! The CQ9332A is the biggest, feature rich lathe.
This 12" x 30" Metal Lathe has been a staple in Socoje Tools lathe line up for years.
The hardened and ground bed ways, gear drive spindle, combined with included coolant system, and power feed on X and Y, make this an absolute steal!
The 1.5" spindle bore is a very big selling point. No more being restricted with the 1" bore that other machines have. Add a tail stock drill chuck, live center, and some cutting bits and you are ready to rock with Socoje Tools CQ9332A.
Stand Included! (assembly required)
SPECIFICATION
- Swing over bed 320mm 12-3/5"
- Swing over carriage 200mm 7-7/8"
- Distance between centers 750mm 30"
- Lathe Chuck Diameter 160mm 6"
- Lathe Chuck Type 3 Jaw Self Centering
- Spindle taper MT5#
- Spindle through bore 38mm 1-1/2"
- Spindle Speeds 12(75-1900 RPM)
- Metric threads 21 (0.45-6mm)
- Inch threads 28 (5-48 1/n")
- Longitudinal feed rates 0.1-1.50mm/r 0.004-0.059 in.per revolution
- Cross feed rates 0.022-0.3mm/r 0.0008-0.0118 in.per revolution
- Tailstock barrel Taper MT#3
- Tailstock barrel travel 80mm 3-1/7"
- Electrical Specifications :
- Horsepower 1100w 1-1/2hp
- Motor Type A/C
- Phase Single

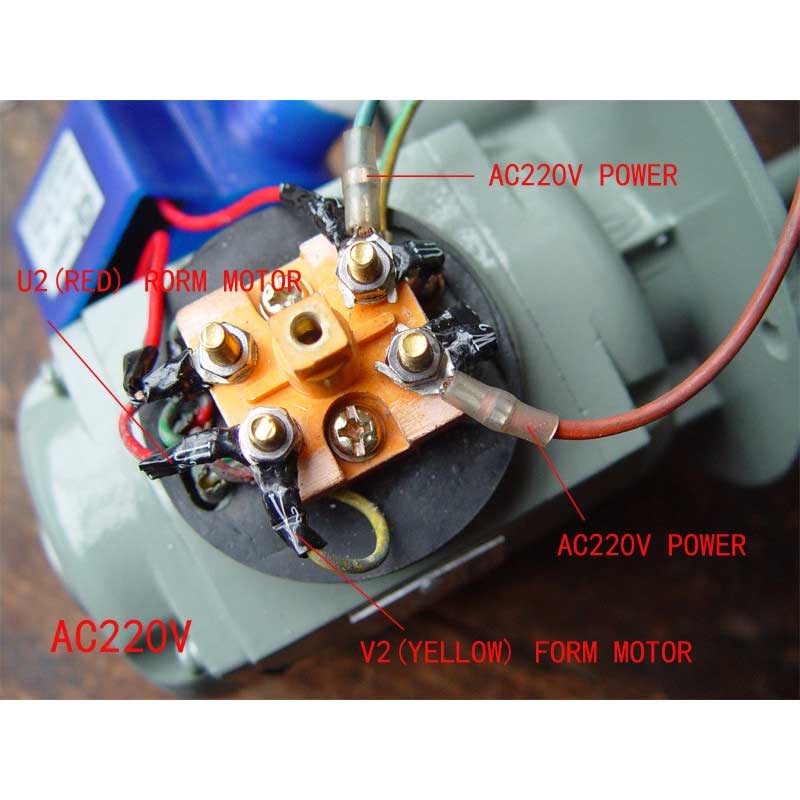

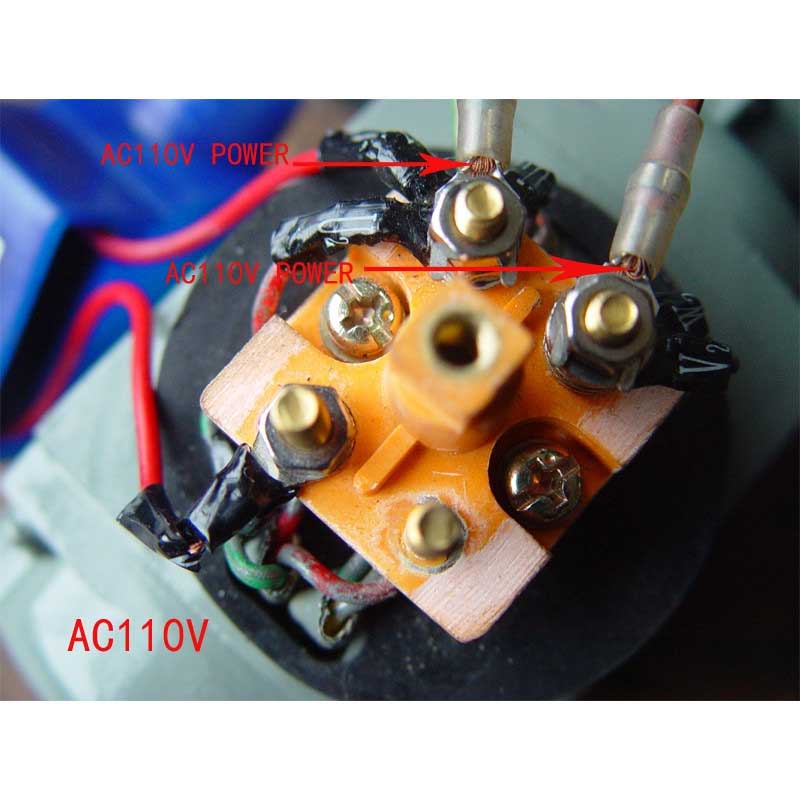

- 220 volt / 11o volt
- Shipping weight:836 lb
PRODUCT DIMENSIONS & WEIGHT:
- Approximate Net Weight: 710 lbs
- Overall Dimentions: 62" Wide x 32" Deep x 57" Tall
- Footprint: 24-3/5" Deep x 45-1/4" Wide
