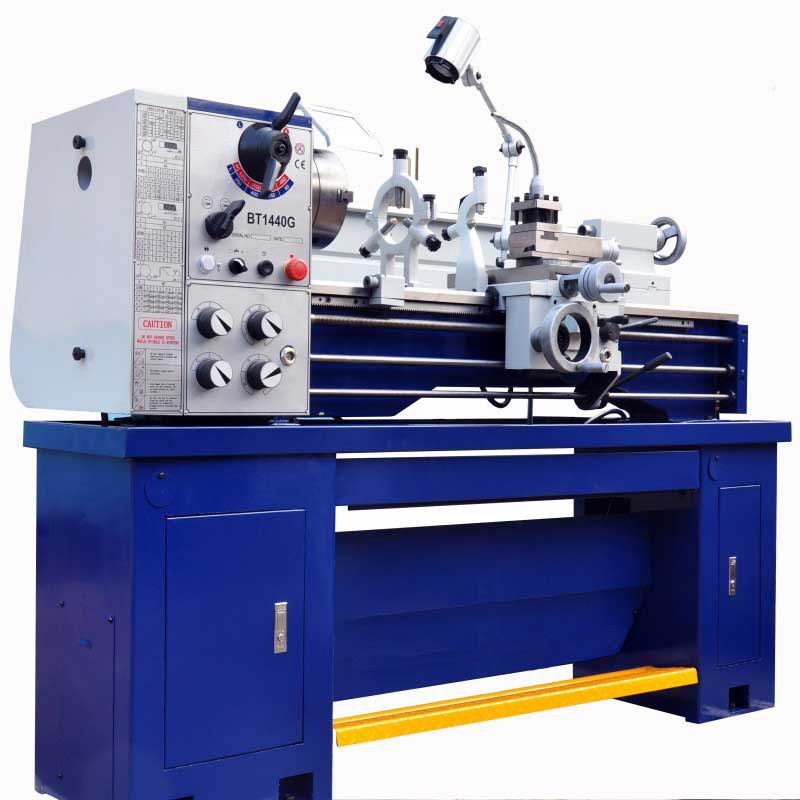

Socoje Tools 14 inch x 40 inch Gear Head Toolroom Metal Lathe with 2 inch Bore Single-Phase | BT1440G-1
from
$5,591.84
Ex Tax: $5,591.84
- Stock: In Stock
- Model: SCJ004430
- SKU: SCJ004430
Products Sold: 0
Product Views: 97
Ask a Question About This Product
- Description
About this product
Socoje Tools is known for manufacturing only top-notch metalworking machine tools including metal lathes, milling machines, CNC lathes, and more. The BT1440G by Socoje Tools is a solid Tool Room lathe with a very generous 2 inch spindle bore.
SPECIFICATIONS:
- Swing over bed: 14-3/16";
- Swing over suppot: 8-13/16";
- Swing over gap: 19-11/16";
- Center height: 7";
- Distance between centers: 40";
- Bed width: 7-3/8";
- Bed height: 11-9/16";
- Spindle bore: 2";
- Spindle Speed: 70,115,190,300,460,755,1255,2000 RPM;
- Cross slide travel: 7-1/16";
- Compound slide travel: 3-3/4";
- Leadscrew diameter: 7/8";
- Feed rod diameter: 3/4";
- Cutting tool(Max. section): 5/8" x 5/8";
- Imperial thread: 34 Nos. 4-56T.P.I;
- Metric thread: 26 Nos. 0.4-7 mmTailstock quill diameter & taper: 1-1/4" & ;
- Motor: 2 HP, 220V/60Hz/single-phase;
- Shipping weight: 1680 lbs.
- CRATE SIZE: 76X30X46
The BT1440G by Socoje Tools is a solid Tool Room lathe with a very generous 2-inch spindle bore.
Working with larger OD material is no problem for this bad boy! Included with your BT1440G is a 6" 3 Jaw chuck, 8" 4 jaw chuck, 11" face plate, 4-way turret tool post (quick change optional) steady rest, and follow rest.
Large travels, and heavy-duty castings make this lathe the perfect machine tool for your shop!
STANDARD EQUIPMENT:

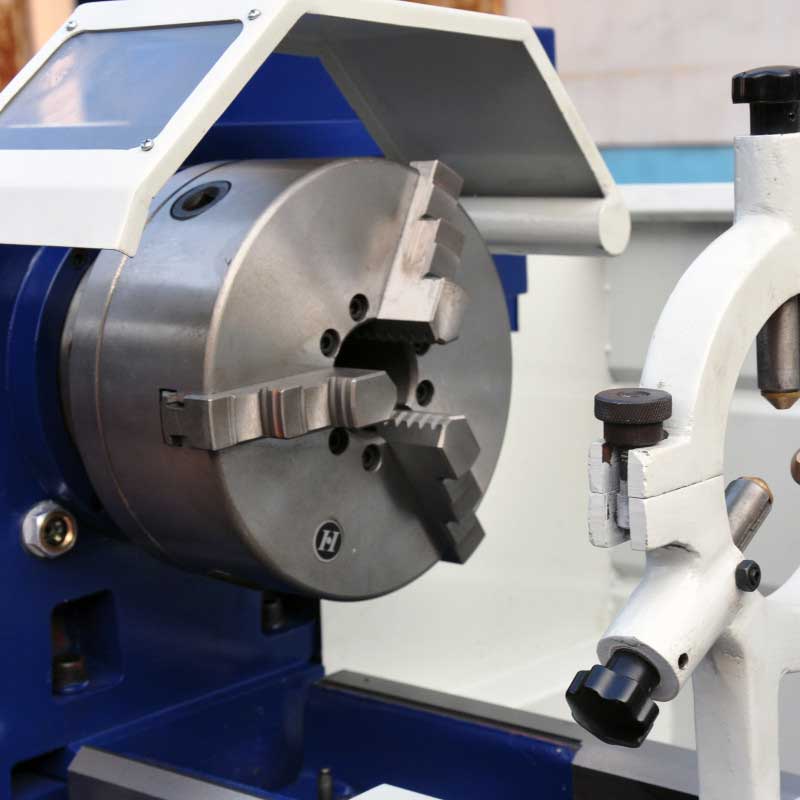

- 6" 3-Jaw chuck and 8" 4-Jaw chuck with reversible jaws;
- 11" face plate;
- Steady rest and follow rest;
- Full-length splash guard;
- 2 MT4 dead center,1 MT5-MT3 sleeve;
- Pull out chip pan;
- working light and coolant pump;
- Toolbox.
