Socoje Tools 14 inch x 40 inch Precision Tool Room Metal Lathe | BT1440-1

SPECIFICATIONS:

• swing over bed 14''
• swing over support 8.80"
• swing over gap 19.80"
• center height 7"
• distance between center 40"
• bed width    7.36"
• bed height    11.40"
• motor output 1.5kw 2HP
• voltage 220v/1PH
• Single Phase: 7 Amps
• 1 Phase
• spindle bore 1.50"
• cam lock system D1-4
• spindle tape MT#5
• Spindle Speeds: 70 - 2000 RPM
• cross slide travel 6.30"
• compound slide travel 2.68"
• leadscrew diameter 0.87"
• feed rod diameter 0.75"
• cutting tool     16mm*16mm 0.63*0.63"
• imperial thread 4-56 T.P.I
• metric thread 0.4-7mm
• longitudinal feed 0.052-1.392mm/rev 0.002-0.054"/rev
• crossfeed 0.014-0.380mm/rev 0.00055-0.015"/rev
• tailstock quill diameter & taper 32mm MT#3

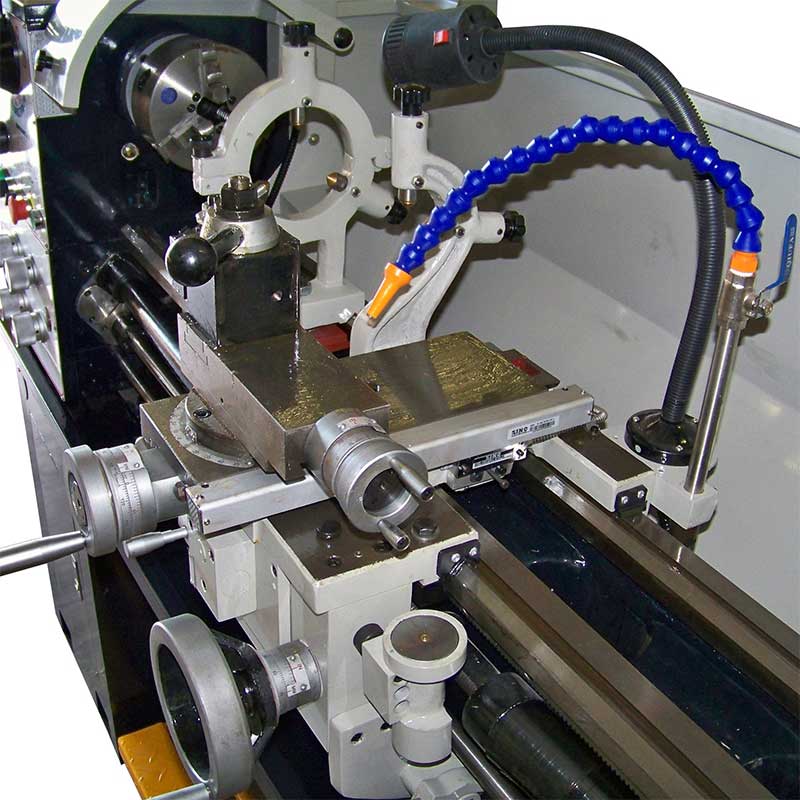

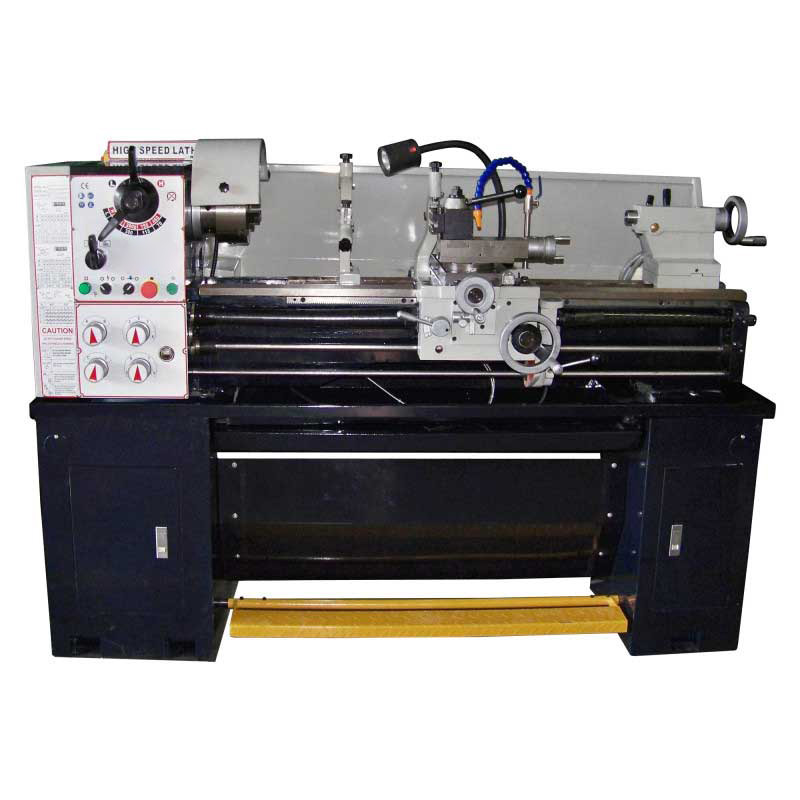

Socoje Tools BT1440 Metal Lathes are perfect for your machine shop or your garage! The 14" x 40" BT1440 comes with a generous 1.5" spindle bore and a quick change tool post already attached!

The SINO Digital Read Out option will be factory installed and save you a lot of hassle and ensure precision. The Socoje Tools BT1440 metal lathe comes in either single phase or 3 phase power.

One of our units is equipped with a foot brake and D1-4 spindle.

The included with your lathe (4 jaw chuck with reversible jaws, face plate, steady rest, and follow rest) make this lathe an unbelievable value!

Feature

• a. Full gear head
• b high precision light lathe
• c. Gap lathe 19.80"
• d. bigger swing diameter and spindle light lathe
• e. Cam locking system
• f. lower noise
• g. Install quick tool post
• h. foot breaker and coolant ,work lamp
• i. 4 jaw chuck ,face plate, steady and follow rest

STANDARD ACCESSORIES:

• 1. 3 and 4  JAW CHUCK
• 2. ARBOR
• 3 FACE PLATE 11-7/8" Diameter; 4-1/2" DTC Mounting Bolts
• 4. SCREW DRIVER
• 5 QUICK TOOL POST
• 6. DEAD CENTER
• 7 TOOL BOX
• 8. CHANG GEAR
• 9.OILING GUN
• 10. ALLEN WRENCH
• 11 DOUBLE OPEN END WRENCH
• ** 4 JAW CHUCK INCLUDED **
• CRATE SIZE: 76X30X46
• SHIPPING WEIGHT: 1300 lbs
