- Description

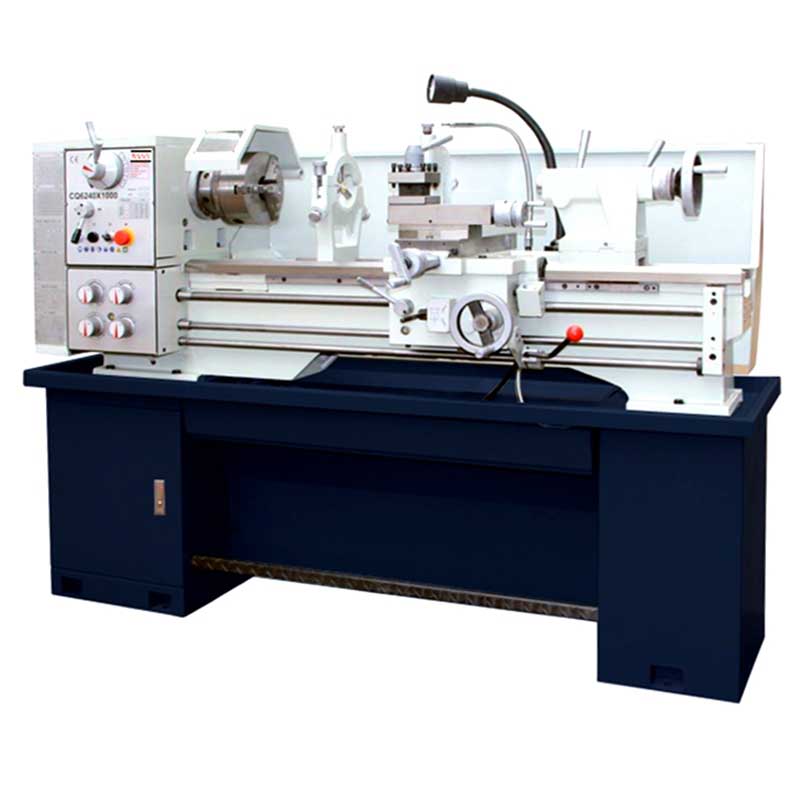

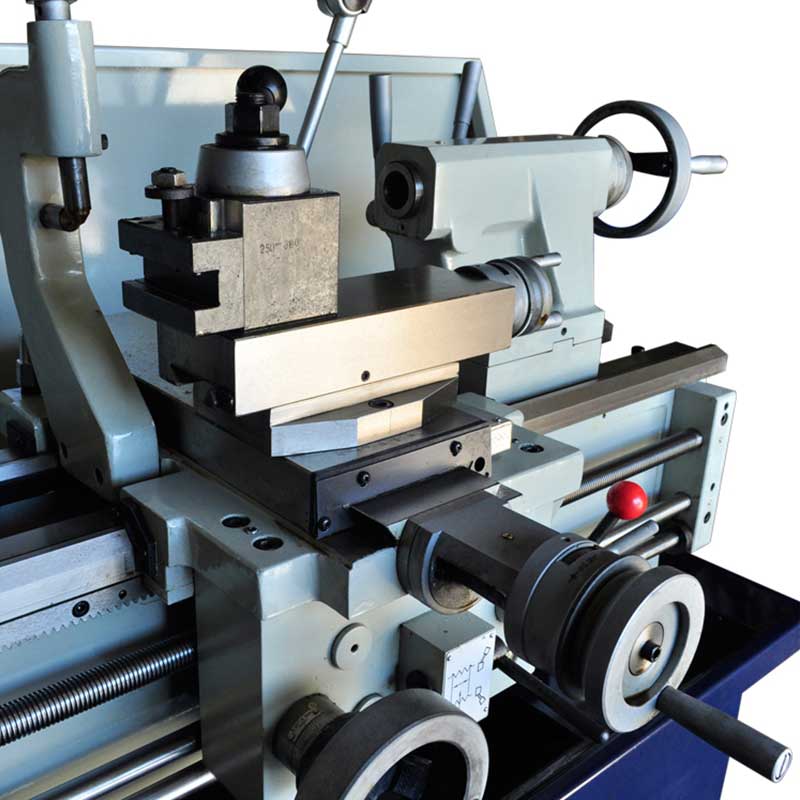

The Socoje Tools BT1640 comes equipped with a 4 way turret tool post (optional quick change tool post available), steady rest, follow rest and an optional taper attachment.
When you receive your Bolton BT1640 metal lathe, you will be surprised by the quality of this lathe in comparison to the price.
This is one of the best values available from the Socoje Tools family of metal lathes! You really get the best bang for your buck!
STAND INCLUDED!
BT1640 SPECIFICATIONS:
- Swing over bed: 16"
- Swing over cross slide: 10"
- Swing in gap: 20 1/2"
- Height of center: 7 7/8"
- Distance between centers: 40"
- Width of bed: 8-9/16"
- Max. section of cutting tool: 13/16 x 13/16"
- Total travel of cross slide: 9 1/16"
- Total travel of top slide: 4 3/4"
- Spindle bore: 2"
- Spindle nose: D1-5
- Spindle morse taper in nose,in sleeve: M.T.#6/M.T.#4
- Spindle speeds number:2×9 (18)
- Spindle speeds range: 65-1800
- Leadscrew diameter&thread: mm x T.P.I 15/16" ×4 T.P.I or pitch 1/8"
- Threads imperial pithches T.P.I: 4-60
- Threads metric pithches: 0.4-7
- Longitudinal feeds(imperial/metric): 0.0021"-0.0508" / 0.0527mm-1.2912mm
- Cross feeds(imperial/metric): 0.00043"-0.0109" / 0.011mm-0.276mm
- Total travel of tailstock quill : 4 5/16"
- Tails stock quill: 2" Taper tailstock quill: M.T.#4
- Spindle drive motor: 3 HP
- Voltage 220v Single Phase
- Coolant pump motor (40W)
- Packing dimension: Overall pkg(mm) 1940×890×1545 77" x 35" x 61"
- Split pkg (mm) 1940×890×1045
- N.W./G.W. Overall pkg(kgs): 1848 LBS
INCLUDED:
- Steady Rest
- Follow Rest
- Coolant System
- Work Light
- 8 Inch 3 Jaw Chuck
- 8 Inch 4 Jaw Chuck
- Face Plate
Weighing in at 1800 lbs. the Socoje Tools BT1640 Gunsmith Lathe is no joke! This metal lathe has "quality" written all over it! With 40" center to center, a 16" swing over bed, [swing over removable gap 20.5"] this lathe can tackle as many of your larger projects you throw at it!
