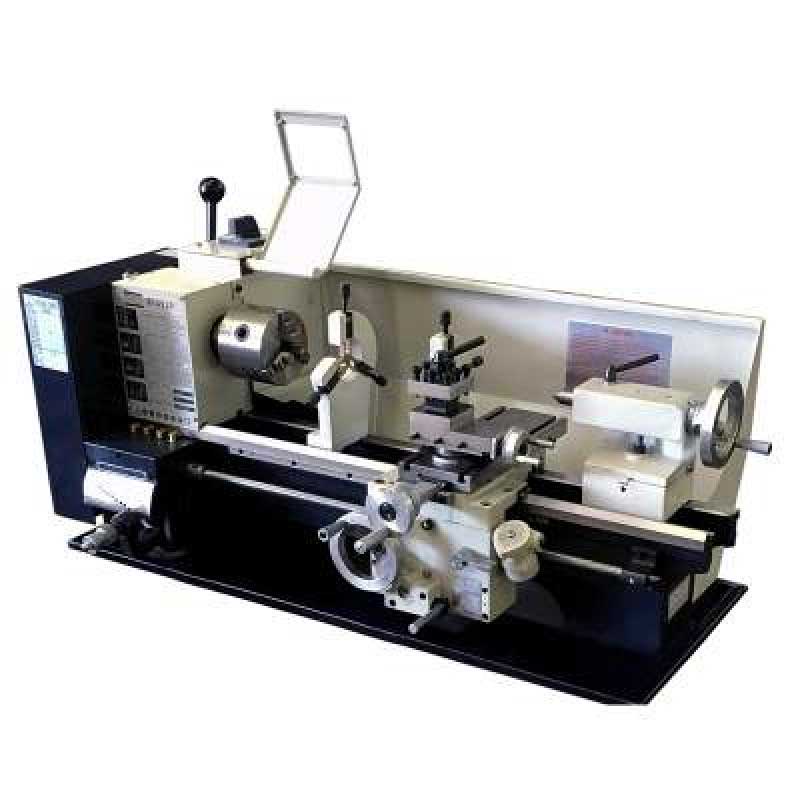

Socoje Tools 9 inch x 19 inch Bench Lathe - Metal Lathes BT0919
from
$1,323.00
Ex Tax: $1,323.00
- Stock: In Stock
- Model: SCJ004436
- SKU: SCJ004436
Products Sold: 0
Product Views: 92
Ask a Question About This Product
- Description
About this product
Socoje Tools is known for manufacturing only top-notch metalworking machine tools including metal lathes, milling machines, CNC lathes, and more. The BT0919 is a metal bench lathe used in the metalworking industries.
SPECIFICATIONS:
- A. Swing over bed: 8-3/4"
- B. Swing over cross slide: 5"
- C. Distance between centers: 19"
- D. Spindle bore: 3/4"
- E. Spindle thread: 39mm x 4mm pitch
- F. Spindle taper: MT#3
- G. Motor: 3/4 HP, 110V
- H. Number of speeds: 6
- I. Range of speeds: 130, 300, 400, 600, 1000, 2000 RPM
- J. Range of inch threads: 8-56 TPI
- K. Range of metric threads: 0.05-3.0mm
- L. Range of feeds: 0.0023-0.013
- M. Lead screw: 9/16"-16 TPI
- N. Compound travel: 1-7/8"
- O. Cross slide travel: 4-1/4"
- P. Carriage travel: 16"
- Q. Maximum tool size: 1/2" x 1/2"
- R. Tailstock barrel travel: 1-9/16"
- S. Tailstock barrel taper: MT#2
- T. Number of longitudinal feeds: 18
- U. Number of inch threads: 27
- V. Number of metric threads: 11
- W. Overall dimensions: 37"L x 20"W x 15"H
- X. Approx. shipping weight: 293 lbs.
- Y. No power cross feed

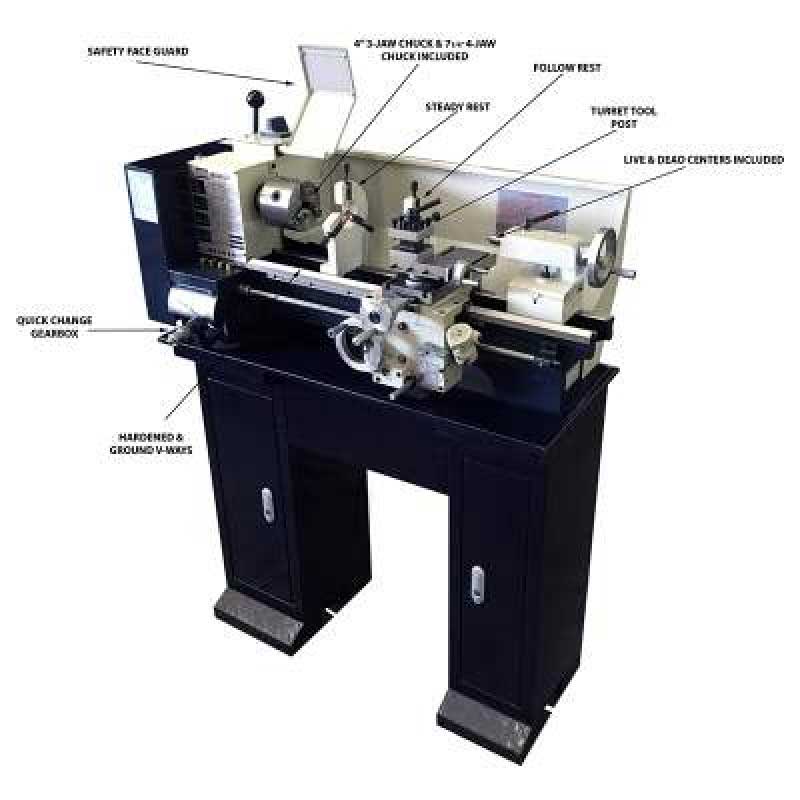

Standard Equipment:
- 1. 4" 3-jaw chuck with two sets of jaws
- 2. 7-1/4" 4-jaw chuck with reversible jaws
- 3. Steady rest
- 4. Follow rest
- 5. MT#2 Dead center
- 6. MT#3 Dead center
- 8. 4-way tool post
- 9. Faceplate
- 10. Tool Box & Tool Kit
- 12. Chuck safety guard.
