- Description
6. factory provides reliable quality, in time service and fast technical support
Model No. WBL25 0LF
· Distance between centers: 30 "
· Swing over bed: 10 "
· Swing over cross slide: 5 -1 /2 "
· Bed width: 5-1/4 "
· Spindle bore: 1"
· Spindle taper: MT#4
· Spindle speeds: 50-20 00 RPM (Variable)
· Range of cross feeds: 0.0014 -0.004 "/rev.
· Range of longitudinal feeds: 0.0025 -0.014 "/rev.
· Inch thread range: (37 ) 8–80 TPI
· Metric thread range: (2 1) 0.35 –3 mm
· Cross slide travel: 4-1/8 "
· Compound rest travel: 2-3/4"
· Tailstock taper: MT#2
· Tailstock quill travel: 2-3/4 "
· Motor type: Brushless 1.5 HP
· Power supply: 110V/1Ph/60Hz
· Rated current: 10A
· Packing size: 59 " W × 22-5/8 " D × 24 " H
· Approx. shipping weight: 370 lbs.
· 5 " A type 3-jaw chuck with two sets of jaws
· Steady rest
· Follow rest
· Faceplate
· 4-way tool post
· Chuck guard
· Splash guard & oil tray
· Chasing thread dail
· Replacement fuses
· MT#2 & MT#4 dead centers
· MT#2 living center
· Tool box with service tools
WBL250LF new features with steady rest, follow rest, face plate, MT2 living center, metal toobox & tools
Headstock
· Spindle is supported by high precision, Class 5, adjustable tapered roller bearings
· Lathe digital speed readout tachometer on face of machine
· Variable speed from 50-2000rpm
Electronic Driving System
· WBL250LF has 1.5HP POWERFUL brushless motor for lathe and 1HP brushless motor for mill with silent running
· High quality electronics used throughout machine for long term reliability
· Braking resistors increase the stability of the electrical system
· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users

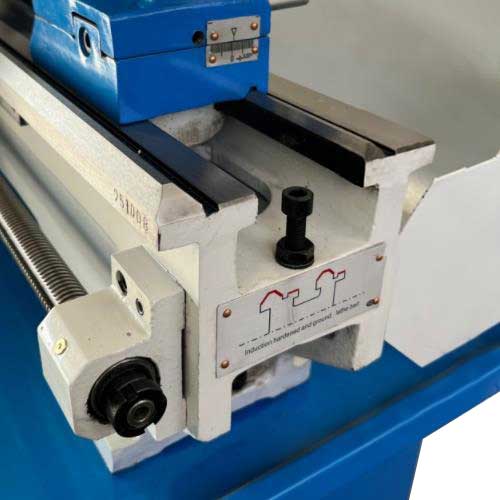

Lathe Bed
· Heavy duty bed with 5.3" width (135mm)
· Guideway induction hardened and precision ground for long life
Change Gear
· WBL250LF change gear cover is equipped with protective QKS8 door swtich
· WBL250LF change gears are all metal gears , can provides 33 kinds of inch threads and 21 kinds of metric threads cutting
· WBL250LF gearbox provides both right and left hand threads cutting
· WBL250LF gearbox provides 3 kinds of feeding speeds
Apron
· WBL250LF apron can provide power cross & longitudinal feed
· WBL250LF Cross slide with T-slot
Tailstock
· WBL250F tailstock with quick lock handle
· Tailstock lock system features a drive hub to ensure consistent draw-down alignment every time
