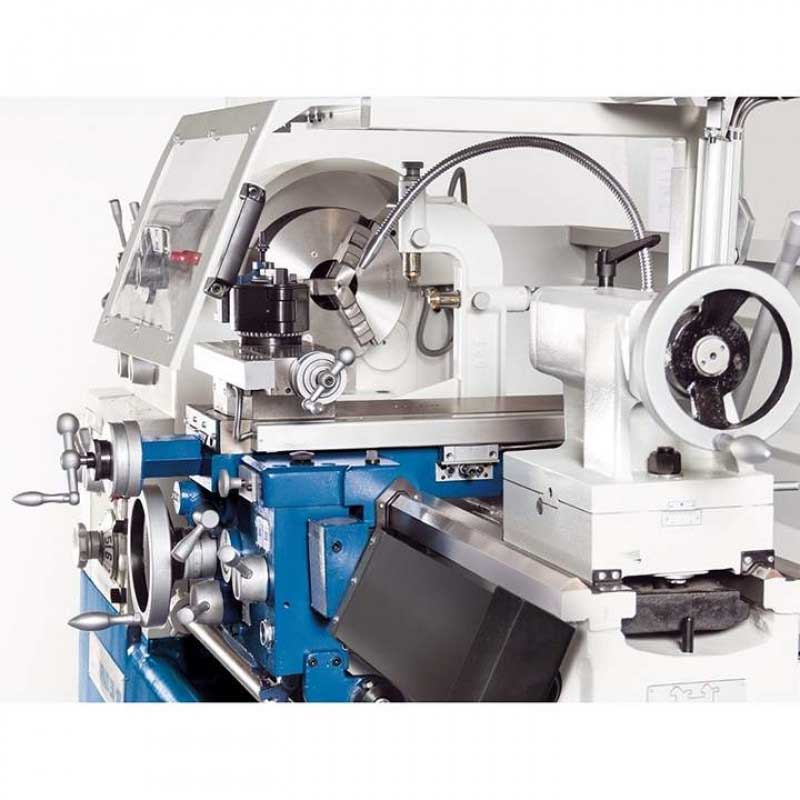

230x1500 Lead Screw and Feed Shaft Lathe with V const
from
$33,750.00
Ex Tax: $33,750.00
- Stock: In Stock
- Model: SCJ004419
- SKU: SCJ004419
Products Sold: 0
Product Views: 91
Ask a Question About This Product
- Description
About this product
3-axis position indicator
3-jaw chuck (10" diam.)
4-jaw face plate chuck (12" diam.)

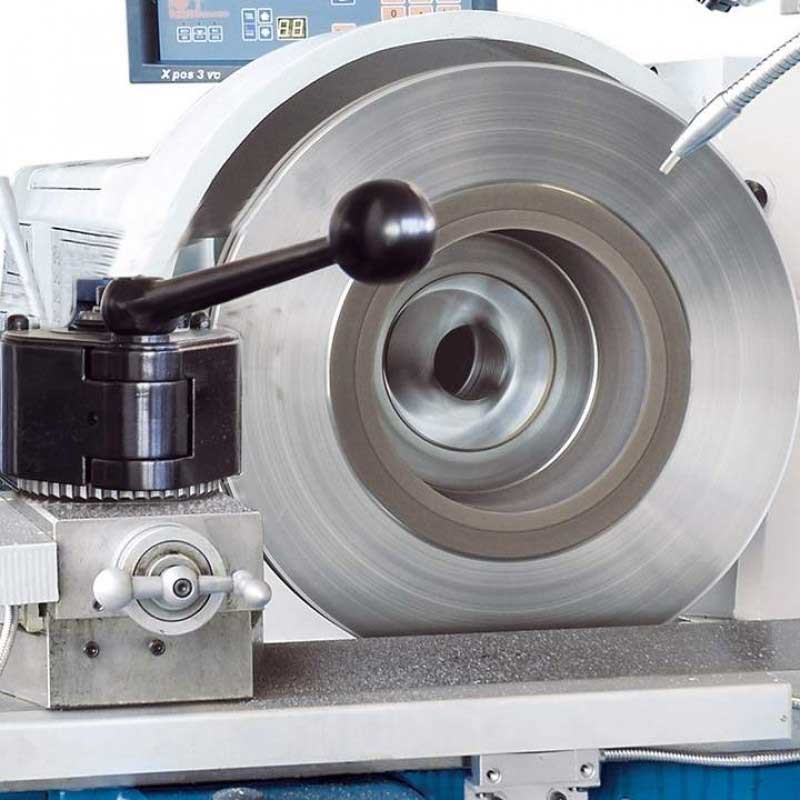

Face plate (13" diam.)

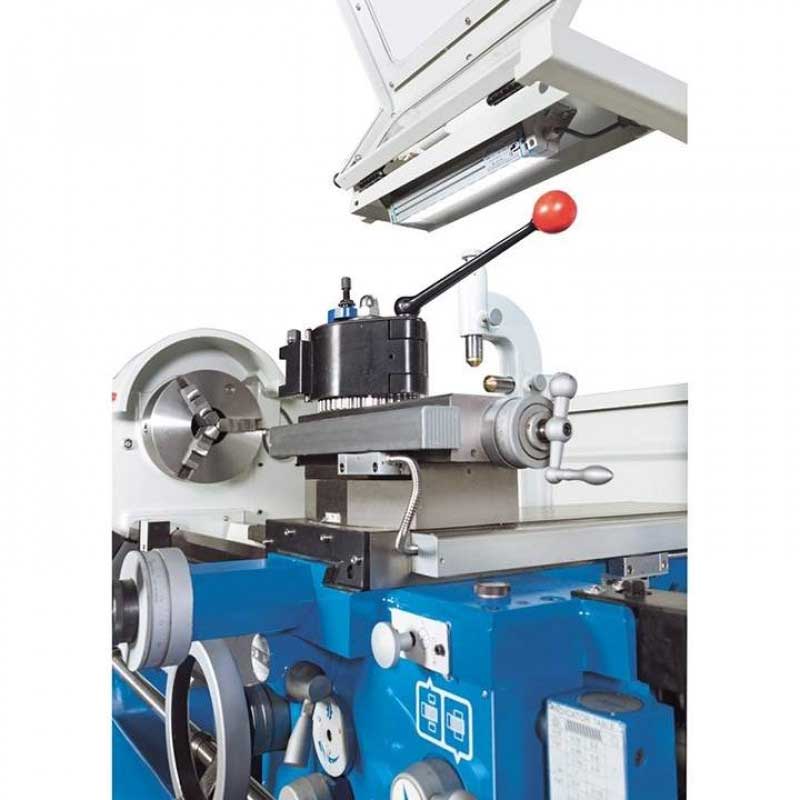

Quick change tool holder head
Quick change tool holder
- Cost-effective, lasting value
- Practically arranged control panel with ergonomic layout of selection levers
- Camlock spindle mount D1-6
- Wide bed, ground and hardened
- Offset tailstock for taper turning
- Large number of thread leads
- Removable gap bridge for machining of large diameter
- Stop spindle with adjustable travel stops
- Turnado with infinitely variable speed adjustment
- Back gearing, first-class control technology and a powerful headstock motor allow a wide range of speeds and high torque for powerful machining
3-axis position indicator
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
| Working area | |
| Workpiece length (max.) | 59 in |
| Turning diameter over bed | 18 in |
| Turning diameter over support | 9 in |
| Turning diameter over gap bridge | 27 in |
| Gap bridge length | 6 in |
| Bed width | 12 in |
| Swing range of top slide | ±52 deg |
| Travel Z1-axis | 5 in |
| Travels | |
| Travel X-axis | 11 in |
| Headstock | |
| Spindle speed | L 30-600 / H 600-3000 rpm |
| Spindle bore | 2 in |
| Spindle mount | Camlock D1-6 |
| Spindle taper | MK 6 |
| Feed | |
| Feed X-axis | 0 - 0.03 in/R |
| Feed Z-axis | 0 - 0.07 in/R |
| Tapping | |
| Tapping, metric | (47) 0, 1-14 mm in |
| Tapping, diametric | (50) 4-112 DP |
| Tapping, module | (39) 0 - 0.28 in |
| Tapping, whithworth | (60) 2-112 TPI |
| Tailstock | |
| Tailstock quill diameter | 2 in |
| Tailstock taper | MK 4 |
| Tailstock quill stroke | 5 in |
| Tailstock traverse adjustment | ± 13 in |
| Drive capacity | |
| Motor rating main drive | 10.1 Hp |
| Measures and weights | |
| Overall dimensions (length x width x height) | 108.27 x 42.52 x 52.76 in |
| Weight | 4334 lbs |
3-axis position indicator, 3-jaw chuck (10" diam.), 4-jaw face plate chuck (12" diam.), face plate (13" diam.), quick change tool holder head, quick change tool holder, coolant system, follow and steady rest, stop spindle, includes fixed splash guard (wall), chuck guard, foot brake pedal, LED work lamp, reducing sleeve, dead center, thread gauge, operating tools, operator manual
