WiFi Intelligent Circuit Breaker ON OFF Timing Photovoltaic Bidirectional Metering Energy Meter Automatic Reclosing Protector

WiFi Intelligent Circuit Breaker ON OFF Timing Photovoltaic Bidirectional Metering Energy Meter Automatic Reclosing Protector
Features:

【Automatic Reclosing】 : Intelligently identify the leakage and when it occurs overvoltage and under voltage, the protector will automatically cutoff the powersupply, if the fault has been eliminated, it will automatically reclose and turn on the power.

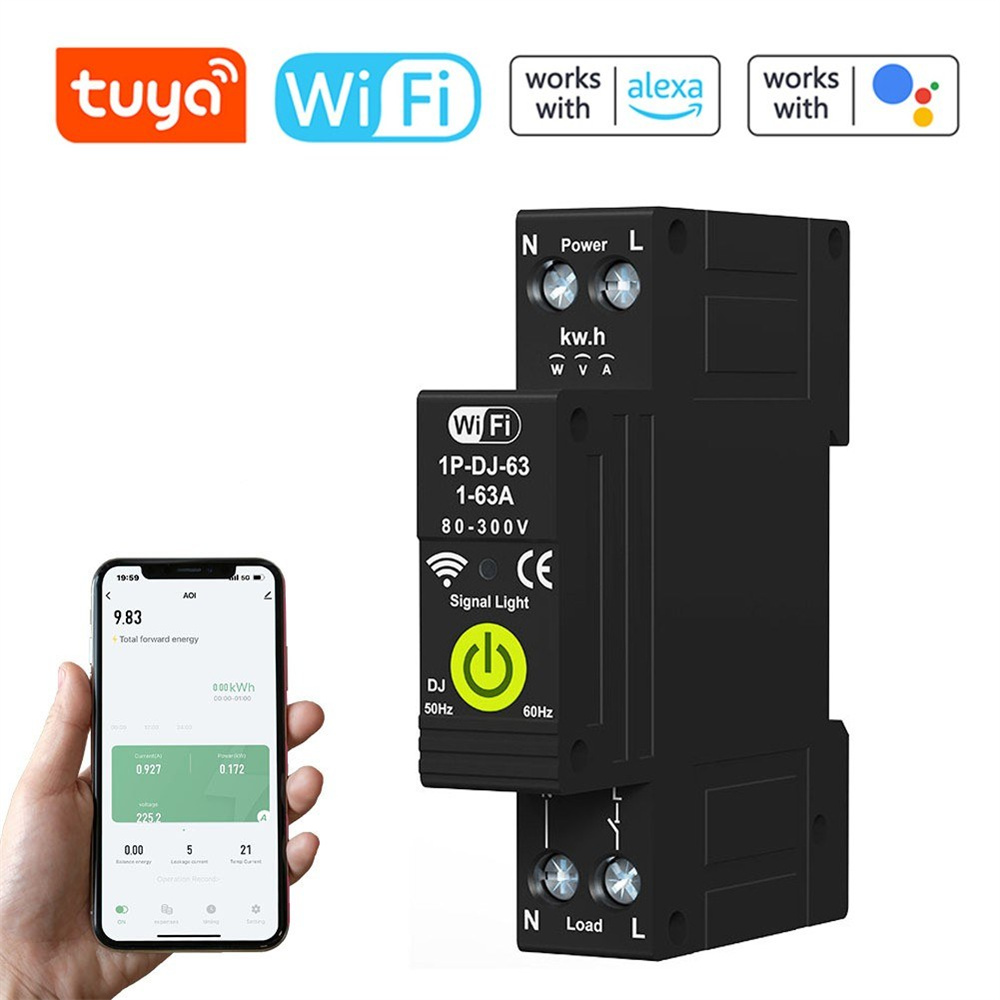

【Mobilephone APP Control】 : After downloading the mobilephone Tuya/SmartLife APPyou can remotely control and view the power on/off switching status of the device whenever and wherever you want via the mobilephone APP. Whether you are on vacation, at work or home, you can enjoy the convenience of the mobilephone APP.

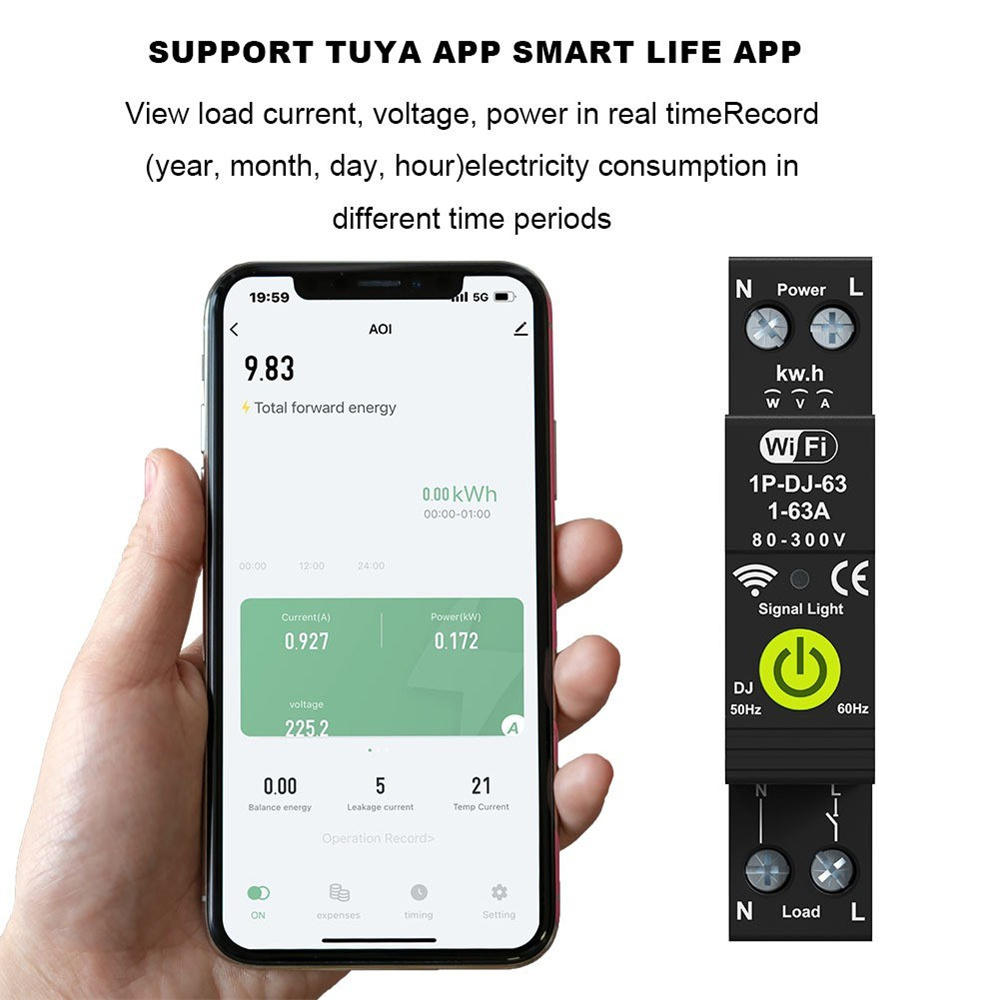

【APP Data Viewing & Electricity Metering】 : Support to view the current, power, voltage, leakage current, temperature, number of faults, total battery capacity, and recharge capacity on your cellphone. Record(year, month, day, hour) electricity consumption in different time periods.

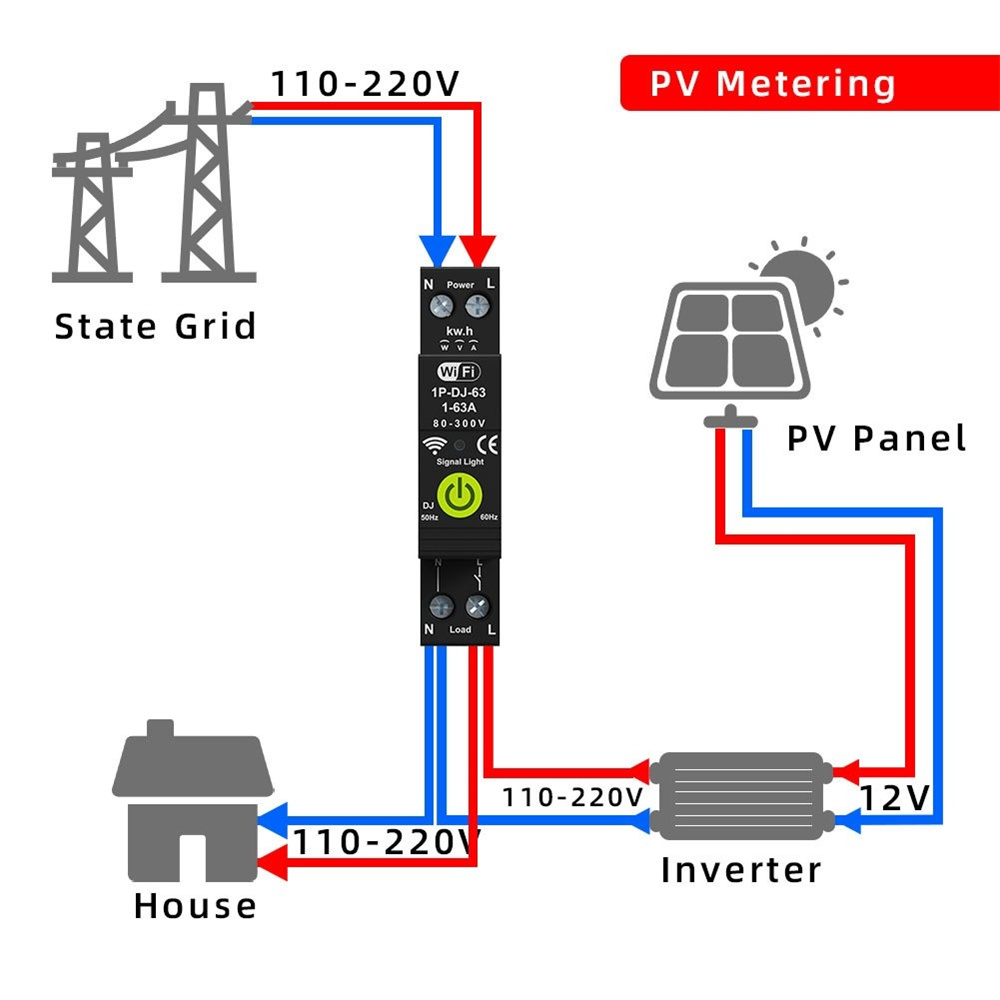

【Photovoltaic Bidirectional Metering】 : View the electricity input from photovoltaic power generations, and the APP can view the electricity generating input at the time, day, month, and year. With prepaid function.

【Timing Schedule】 : Four timing modes of timing mode, countdown mode, cycle iming, jog switch (30 sets of timing settings). And with automatic re-closer ON/OFF function.

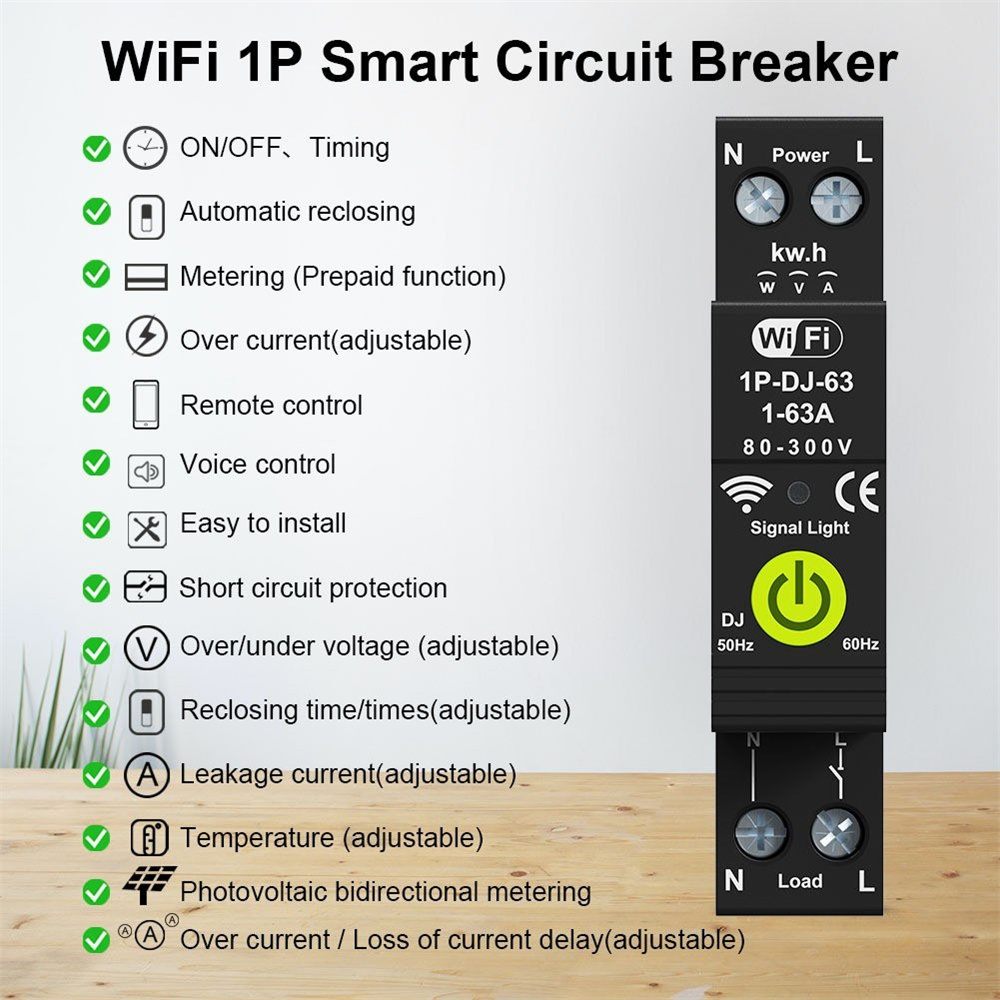

【Multiple Protections】 : Designed with leakage, short-circuit, over-current, over-voltage, under-voltage protections, etc. Safer to use.

【APP Parameter Setting】 : With the under voltage, overvoltage, overcurrent, reconnection time (delay time), overcurrent and leakage protecting time, leakage protecting current, over temperature protecting threshold, over current delay time, loss of current delay time, temperature setting functions.

【Voice Control】 : High compatibility, compatible with Alexa and Google Assistant for voice control, , freeing your hands and making it easier to control the device, maximizing the comfort and economy of your home environment, you can enjoy the convenience of technology.

【Device Share Function】 : You can share with your family for common control. Suitable for home, office, shopping mall, hotel, etc.

Specifications:

Name: Circuit Breaker

Material:

Rated vottage: 230VAC

Operation voltage: AC80V-400V(single phase)

Rated frequency: 50/60Hz

Electric current: (>A) 1-63A

Setting Ranges:

Under voltage protecting: 80V-210V adjustable

Overvoltage protecting: 120-300V adjustable

Overcurrent protecting:1.0A-63A adjustable

Reconnection time (delay time): 10s-99s adjustable

Overcurrent and leakage: 1-30 off adjustable

Leakage protecting: 10-99mA adjustable

Over temperature: 10-85 adjustable

Over current delay time: 1s-15s adjustable

Loss of current delay time: 1s-15s adjustable

Temperature: -30℃ to 70℃

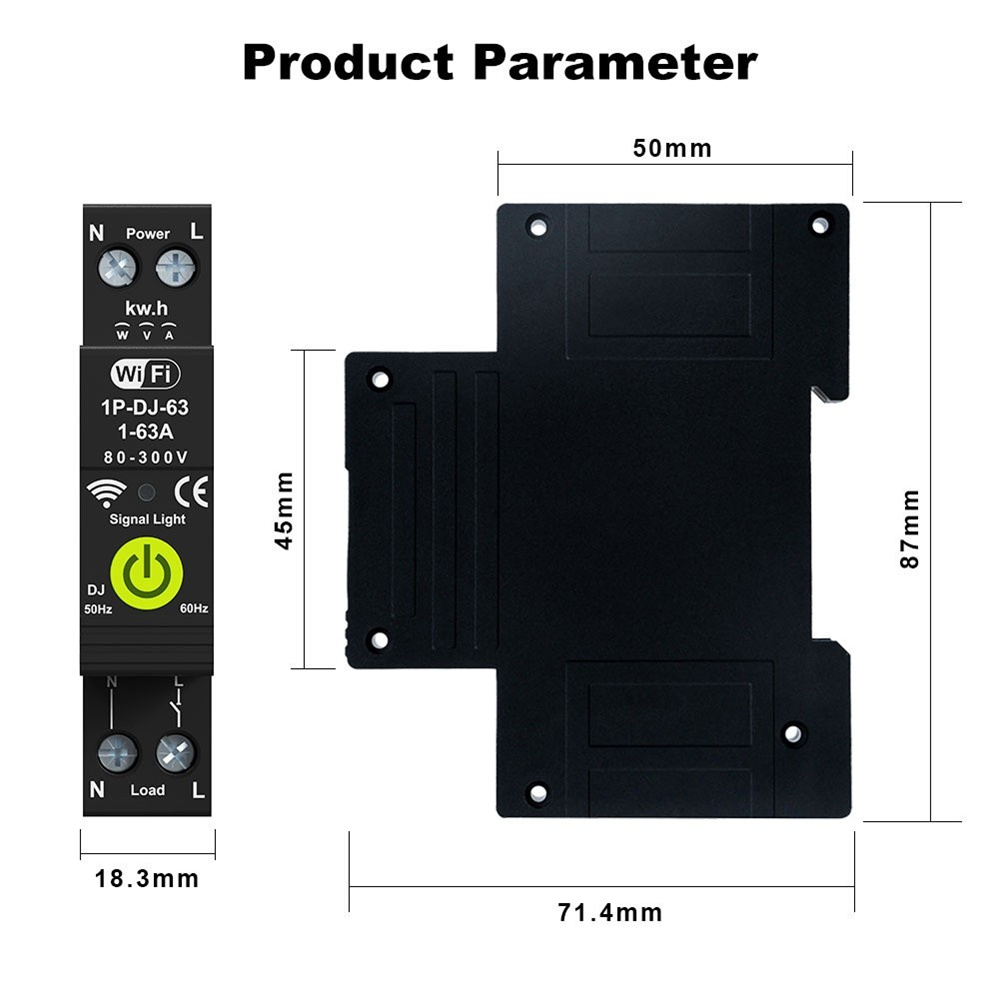

Item size: 92 * 19 * 72mm / 3.62 * 0.75 * 2.83in

Item weight: 97g / 3.42ounce

Package size: 94 * 21 * 73mm / 3.70 * 0.83 * 0.87in

Package weight: 120g / 4.23ounce

Package included:

1 x Circuit Breaker
