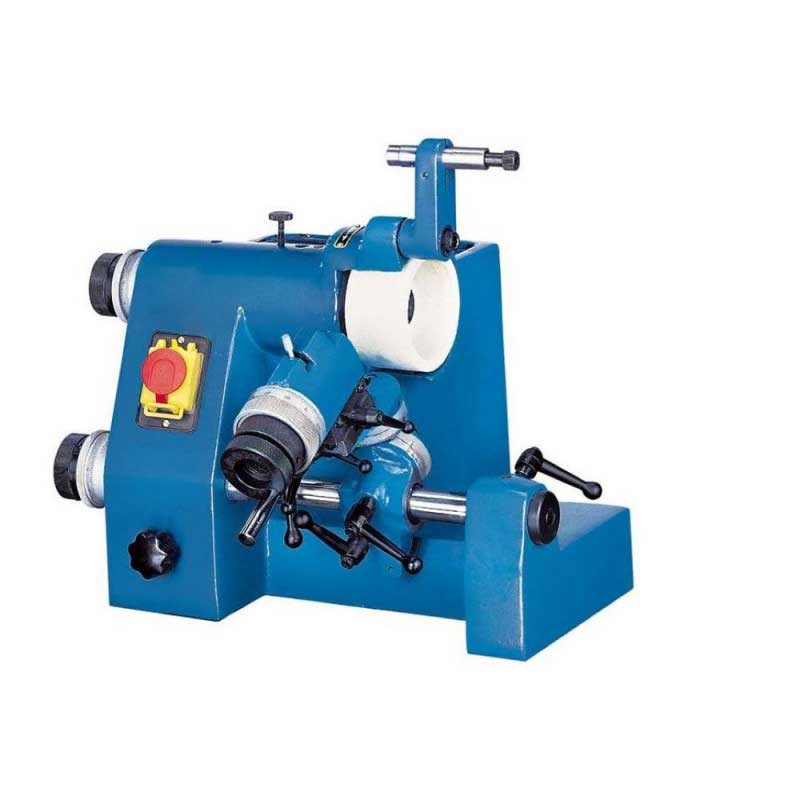

Universal Tool Grinding Machine SM 102880
from
$2,100.00
Ex Tax: $2,100.00
- Stock: In Stock
- Model: SCJ004382
- SKU: SCJ004382
Products Sold: 0
Product Views: 207
Ask a Question About This Product
- Description
About this product
-Grinding diameter 1 in
-Speed 5,200 rpm
-Grinding wheels dimensions 4x2x1 in
KNUTH is your complete source for finding the perfect CNC machine, milling machine,
lathe, drill press, or cutting machine. The SM Universal Tool Grinding Machine is

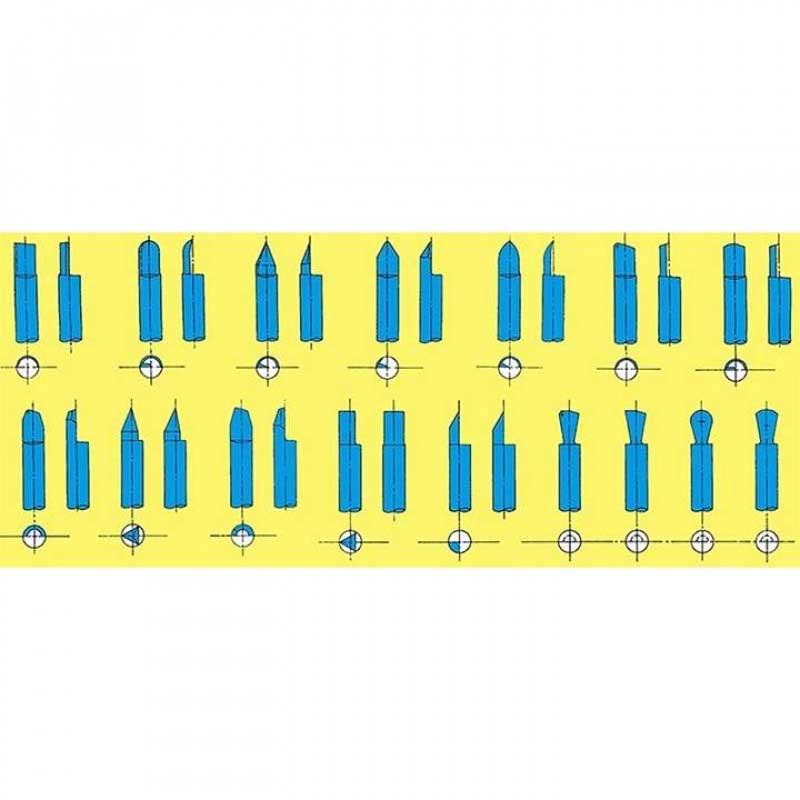

capable of grinding different profile forms used in the metalworking industries.
-Grinding diameter 1 in
-Speed 5,200 rpm
-Grinding wheels dimensions 4x2x1 in
A tool and cutter grinder is used to sharpen milling cutters and tool bits along
with a host of other cutting tools. It is an extremely versatile machine used to
perform a variety of grinding operations: surface, cylindrical, or complex shapes.
| Working Area | |
| Grinding diameter | 1 in |
| Speed | 5,200 RPM |
| Travel tool holder | 6 in |
| Collet chuck diameter | 0.7 in |
| Taper grinding | 0° ~ 180° |
| Rear angle | 0 ~ 45 deg |
| Hand-wheel rotation, spindle | 0.3 in |
| Hand-wheel rotation, tool holder | 0.7 in |
| Drive capacity | |
| Motor rating main drive | 0.2 Hp |
| Measures and Weights | |
| Grinding wheels dimensions | 4x2x1 in |
| Overall dimensions (length x width x height) | 17.72x15.75x13.78 in |
| Machine weight | 123 lbs |
| Base weight | 37 lbs |
