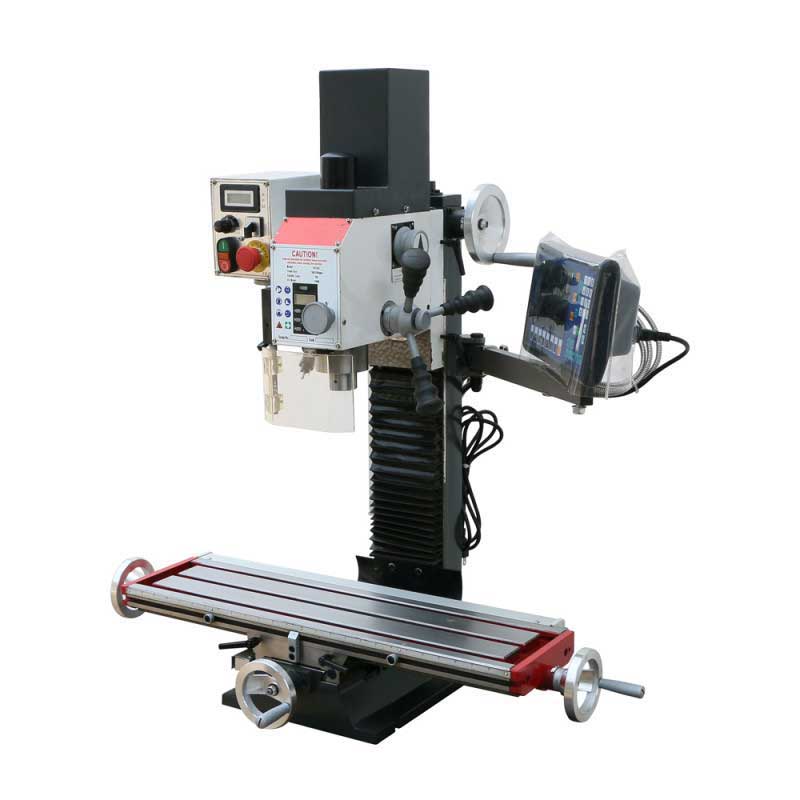

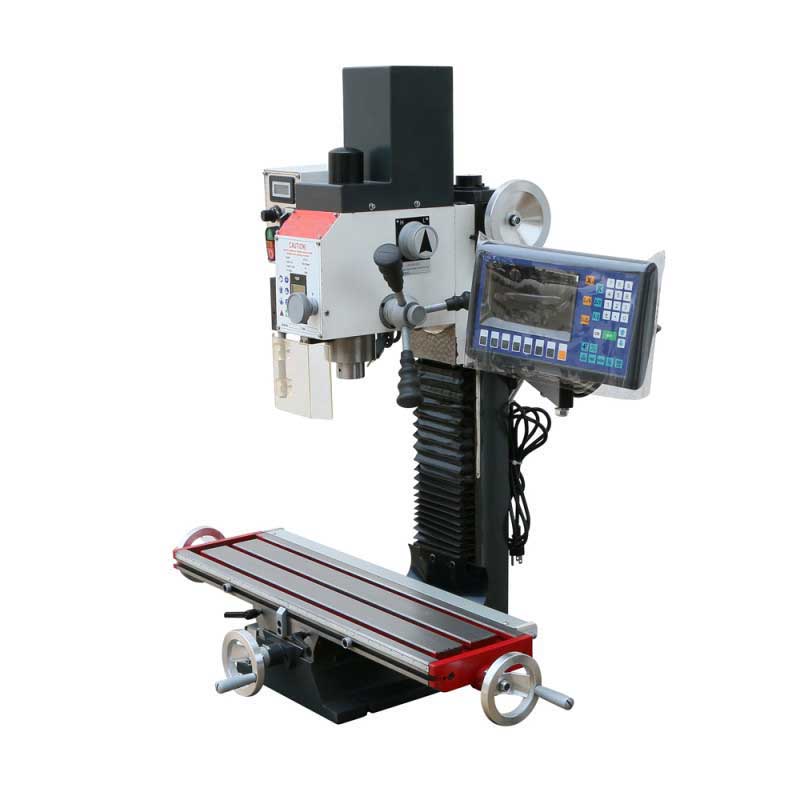

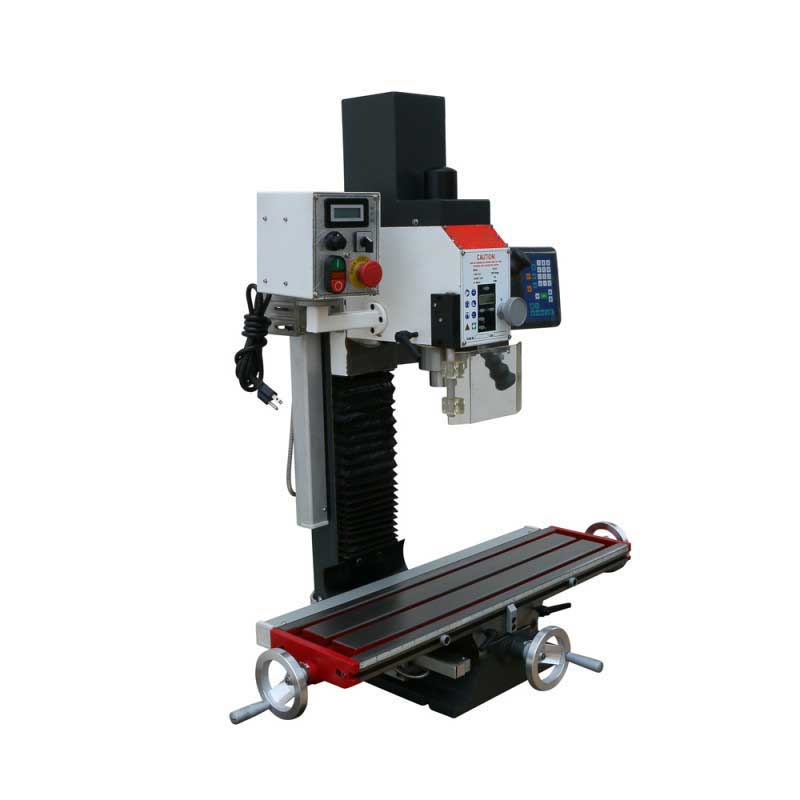

Variable Speed Benchtop 7 3/32" X 27 9/16" Milling Drilling Machine 3/4HP 3-axis DRO

Buy Now

Specifications

attribute-list
Table size:	700 × 180mm
Max End Milling Capacity	20mm
Max. Drilling Capacity	25mm
Step of Spindle Speeds	Variable speed
Spindle Taper	R8
Max. Face Milling Capacity	63 mm
Table Travel (X,Y)	480 × 175mm
T-slots:	3×12 mm
Spindle Stoke	50 mm
Angle Of Spindle Speeds	20-2250rpm
MOTOR	750W
Packing Size	710 x 710 x 890mm
Spindle Incline Angle	±90
Distance From Spindle Nose To Table	270mm
Net/Gross Weight	125/145 kg

Description

About this product

1. Max. drilling capacity: 1''

2. Table size: 27-9/16" × 7-3/32"

3. Motor: 3/4 HP, 110V, single-phase, 10A

4. Spindle taper: R8

▪ Feed spindles can be adjusted without clearance due to adjustable spindle nuts

▪ Stable dovetail guiding precision ground and scraped with adjustable V-ledges without

clearance

▪ EMC filter (to protect sensitive electronics for override mains-borne signals)

▪ Spindle is supported by high precision taper NSK bearing

▪ Drilling Milling head rotation by ±90° for milling and drilling works at different angles

▪ Height adjustable protective screen with micro switch providing maximum protection of the user against chips and parts flying off at high speed
