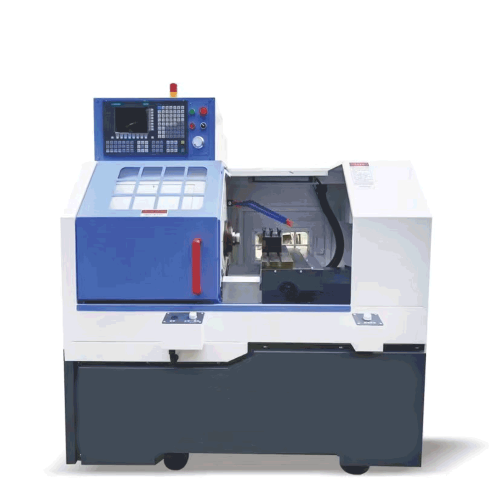

CNC Lathe Machine - GS-0640 - Horizontal - Flat Bed - Wire Rail Machine Tool - Metal - 3 Jaw Chuck
from
$12,000.00
Ex Tax: $12,000.00
5 or more $11,000.00
10 or more $10,000.00
- Stock: In Stock
- Model: SCJ000233
- SKU: SCJ000233
Products Sold: 0
Product Views: 130
Available Options
Ask a Question About This Product
- Specifications
Industry-specific attributes | |
Type | Horizontal |
Max. Length of Workpiece (mm) | 400 |
Other attributes | |
Condition | New |
Machining Capacity | Medium Duty |
CNC or Not | CNC |
Spindle Bore(mm) | 48 |
Place of Origin | Zhejiang, China |
Spindle Motor Power(kW) | 5.5 |
Weight (KG) | 1100 |
Number of Axes | 3 |
Key Selling Points | High-accuracy |
Travel (X Axis)(mm) | 300 mm |
Showroom Location | None |
Travel (Z Axis)(mm) | 350 mm |
Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Construction works , Energy & Mining |
Marketing Type | New Product 2020 |
Tool Post Stations | 4 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Core Components | Bearing, Motor, Pump, PLC, Engine |
Model Number | GS-0640 |
Voltage | 220V/380V,50HZ |
Dimension(L*W*H) | 1650*1350*1750 |
Max. Spindle Speed (r.p.m) | 5000 r.p.m |
Year | 2022 |
Max. Weight of Workpiece(kg) | 200 |
Product name: | CNC Lathe Mechine |
Width of bed (mm) | 290 mm |
Max. Turned Length (mm) | 350 |
No. of Spindles | 4 |
Precision | 0.003mm |
Type | Horizontal |
Function | Machining Metal Lathe |
Positioning Accuracy (mm) | ±0.003 |
Repeatability (X/Y/Z) (mm) | ±0.003 |
Color | Customized Color Acceptable |
CNC Control System | CUSTOMIZED |
Toolpost Brand | CUSTOMIZED |
Chuck | 3 Jaw Chuck |
Max. swing over bed | 400mm |
Controlling Mode | CNC Automatic CNC Lathe Machine |
Packaging and delivery | |
Packaging Details | Each CNC Lathe Machine is wrapped with stretch film or packed in a wooden case. |
Port | ningbo/shanghai/shenzhen |
Supply Ability | |
Supply Ability | 500 Set/Sets per Month 500sets/mon drilling machine |
- Description
CNC Lathe Machine - GS-0640 - Horizontal - Flat Bed - Wire Rail Machine Tool - Metal - 3 Jaw Chuck
Product Description
Specification
Max. Spindle Speed (r.p.m) |
5000r.p.m |
Spindle Bore(mm) |
48 |
Width of bed (mm) |
290mm |
Spindle Motor Power(kW) |
5.5 |
Travel (X Axis)(mm) |
300mm |
Travel (Z Axis)(mm) |
350mm |
Positioning Accuracy (mm) |
±0.003 |
Dimension(L*W*H) |
1650*1350*1750 |
Model Number |
GS-0640 |
Voltage |
220V/380V,50HZ |
Weight (KG) |
1100 |
Product name |
CNC Lathe Mechine |
Chuck |
3 Jaw Chuck |
Type |
Horizontal |
Function |
Machining Metal Lathe |
Max. swing over bed |
400mm |
