AB1M-A1LR Red 10mm Latching Round Push Button Switch IP40 SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Colour	Red
Contact Configuration	SPDT
Head Type	Round
Contact Material	Silver
Contact Rating	3A 250V
Current Rating	3A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Positions	2
Protection Level	IP40
Operating Temperature	-25°C to +55°C
Panel Cut Out	10mm
Panel Thickness	6mm
Product Series	A1
Terminal Type	Solder
Voltage Rating	250V

Description

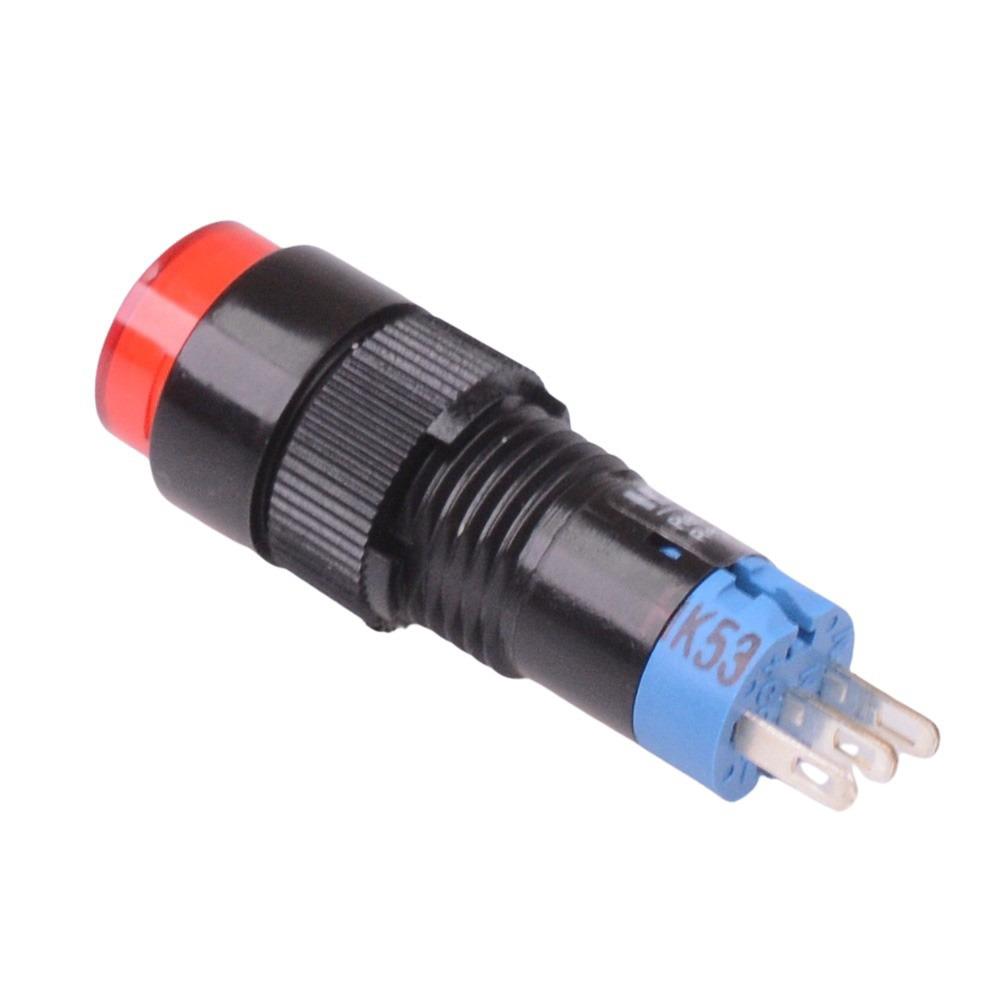

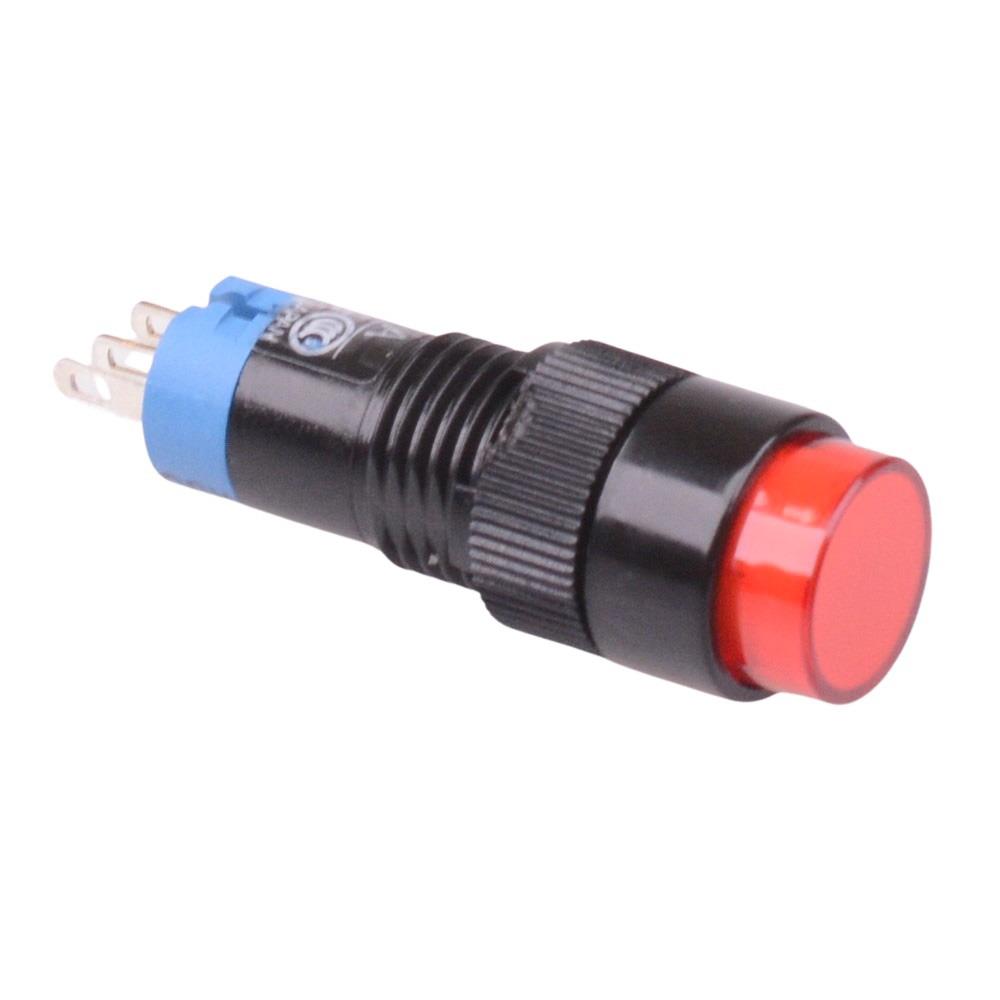

The AB1M-A1LR is a latching industrial push button switch by socoje, featuring SPDT contacts and IP40 protection rating. The switch features a red lens and is suitable for 10mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.

Latching operation

SPDT contacts

IP40 protection rating

Contact rating: 3A 250V

Panel cut-out: 10mm

Panel thickness: 0.5-6mm

Solder terminals

Dimensions: 36.5 x 12mm (length x diameter)
