AC Motor TN80A 2 Pole 0,75kW 3000RPM B14 Flange
from
$290.44
Ex Tax: $290.44
3 or more $275.92
5 or more $261.40
- Stock: In Stock
- Model: SCJ008901
- SKU: SCJ008901
Products Sold: 0
Product Views: 120
Ask a Question About This Product
- Description
AC Motor TN80A 2 Pole 0,75kW 3000RPM B14 Flange
Series of standard IEC motors with three-phase power supply, cl. F insulation and IP55 protection class (or IP54 in the larger sizes). Characterized by a high degree of reliability, they can be used in countless application solutions. Without a VFD it will run 2910rpm continuously, and with a VFD you can run from 0-2910RPM. Keep in mind that below 300RPM you have very little torque.
Component features:
- Not available from stock, leadtime 1-2 weeks after order

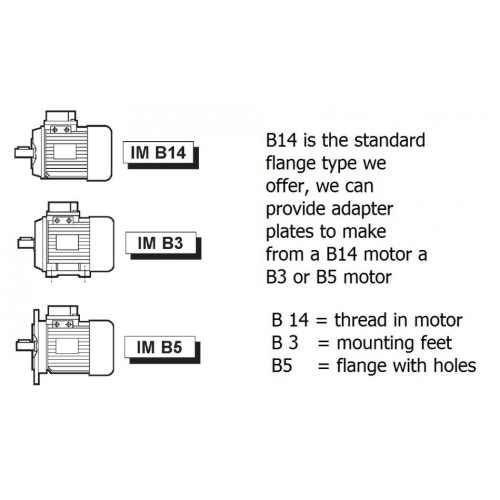

- Standard B14 Flange optional B3/B5 Adapters
- High quality product made in Italy by MT

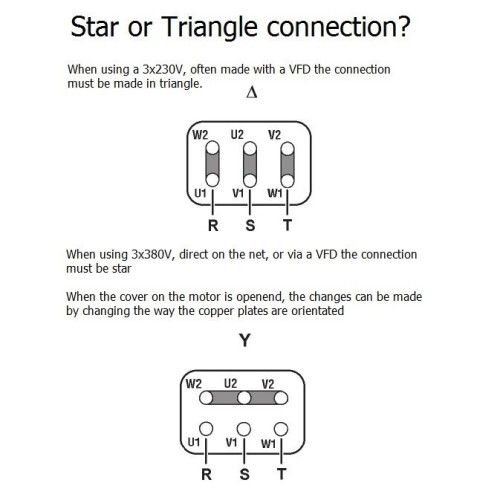

- Standard both 230V (Triangle) or 380V (Star)
- Motors are complient to IE3 norm
- Frame size: TN80B
- Nominal power: 0.75kW
- Nominal speed: 2910rpm
- Nominal current: 1.7A
- Nominal torque: 2.4Nm
- Peak torque: 10.5Nm
- Weight: 10.8kg
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 | 2180-1 AC Motor TN80A 2 Pole 0,75kW 3000RPM B14 Flange STEP214 |
| 2180-2 AC Motor TN80A 2 Pole 0,75kW 3000RPM B14 Flange STEP242 |
| 2180-3 AC Motor TN80A 2 Pole 0.75kW 3000RPM B14 Flange datasheet | |
| 2180-4 MT Motors Catalogue IE3 |
