800W Air Cooled CNC Spindle Motor 24000 rpm ER11

Brief

24000 rpm high speed spindle motor with ER11 collet, 800W power and 0.31 Nm torque, works at 3 phase 220V AC 400Hz power system. Air-cooled spindle motor is designed for wood carving CNC machine.

Description

800W CNC spindle motor, 24000 rpm speed, 0.31 Nm torque, 400Hz frequency, 3 phase 220V AC operating voltage, ER11 (φ3.175 mm - φ7 mm) collet.

Feature

Spindle motor with air cooling fan and ER11 collet ensures smooth running.
Fast response, strong overload capacity, low noise and high mechanical precision.
High quality 3 pcs bearings (7002Cx2 + 7002Cx1), runout off less than 0.01mm, tapered bore less than 0.005mm.
P4 grade ceramic ball bearings used as spindle bearing, which improves the service life under high speed revolution.
Lubricated with grease, which is resistant to 200 degrees high temperature.
Tight sealing and two-layer dustproof design.

Application

This series air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, CNC router machine, and used for high speed profiling, drilling, cutting, engraving and groove milling of wood, metal, plastics, foam, rubber and other materials.

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Specification

Model	STF65-0.8-ER11
Matched VFD Model	GK3000-2S0015 (2 hp single to three phase VFD) GK3000-4T0015G (2 hp three phase VFD)
Power	800W
Phase	Three phase
Speed	24000 rpm
Voltage	3-phase 220V±10% AC
Current	2.5A
Frequency	400Hz
Torque	0.31 Nm
Number of Pole	2 poles
Cooling Type	Air-cooled
Installation Method	Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)
Lubrication	Grease
Thermal Class	Class F
Protection Class	IP50
Certification	CE
Warranty	Bearings for half a year, other parts for one year
Joint of Nose	ER11 (φ3.175 mm - φ7 mm)
Bearings Type	7002C P42 & 7002C P41
Application	Woodworking & Plastic
Weight	3 kg
Download Attachments

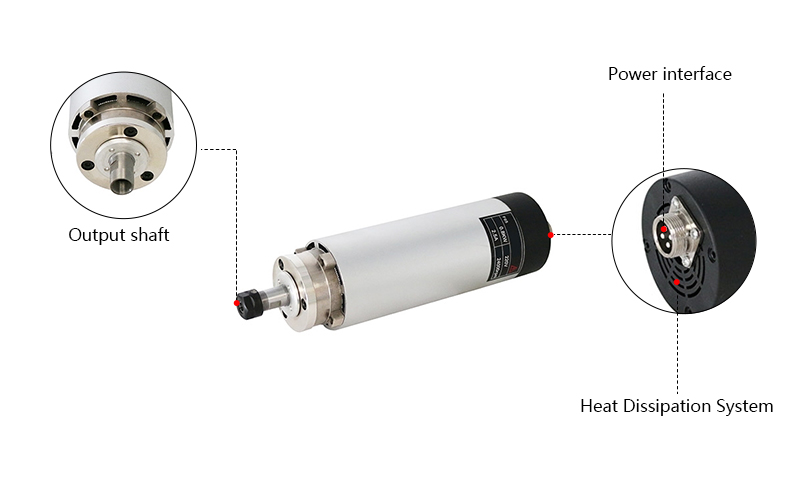

Details

Tips: What is a Spindle Motor?

Spindle motor is also called high speed motor, refers to the revolution of more than 10000 RPM AC motor. It has the advantages of fast speed, small size, light weight, low material consumption, low noise, low vibration, mainly used in wood, aluminum, stone, hardware, glass, PVC and other industries. Due to its wide application and meticulous work, fast speed and excellent processing quality, making other ordinary motor can not meet the technical requirements of spindle motor. Spindle motor plays an important role in the industrial production process, so it is particularly popular all over the world.

Safety Use

Safety Tips for Using SOCOJE CNC Spindle Motors

1. The electric spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor, and it will burn the spindle motor if the settings are not correct.

2. Before using water-cooled spindle motor, it shall ensure that cooling cycle system works normally and the running under no cooling conditions is prohibited. The volume of cooling water is calculated as per 1 liter/minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.

3. The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant temperature of 20 +/-2℃.

4. During storage and transport of the spindle motor, the status of high-speed grease inside the bearing will change. The user shall run it at a low speed first by starting from the lowest speed of the spindle motor for 30 minutes and then 20 minutes for every 3000 rounds. Otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle motor is started directly at a high speed. During long term storage, the spindle motor shall run (at low speed) for 15-30 minutes once a week at last.

5. Collet, nut and inner taper hole shall be washed clean when installing blades on the spindle motor in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.

6. For daily machining, the spindle motor shall be warmed up, run for 15-20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle motor for two hours every day in order to recover its mechanical fatigue and prolong its life time.

7. No knocking the end cover of the spindle motor. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially the end of the spindle motor.

8. The spindle motor shall run in designated direction.

9. The spindle motor shall be installed and fixed according to the relevant drawings and instructions.

10. The temperature shall be within 22-25℃ if water cooling machine is used.

11. The spindle motor adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25Mpa and the filtering precision is 5μm, otherwise there will cause damages to the bearing.
