Green LED Momentary 22mm Tactile Vandal Push Button Switch NO AV03C7L3D2403E

Green LED Momentary 22mm Tactile Vandal Push Button Switch NO AV03C7L3D2403E
Green LED Momentary 22mm Tactile Vandal Push Button Switch NO AV03C7L3D2403E
Green LED Momentary 22mm Tactile Vandal Push Button Switch NO AV03C7L3D2403E
Green LED Momentary 22mm Tactile Vandal Push Button Switch NO AV03C7L3D2403E
Green LED Momentary 22mm Tactile Vandal Push Button Switch NO AV03C7L3D2403E
from
$43.81
Ex Tax: $43.81
10 or more $39.00
25 or more $36.80
50 or more $34.61
100 or more $32.85
  • Stock: In Stock
  • Model: SCJ013894
  • SKU: SCJ013894
Products Sold: 0
Product Views: 73
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourGreen
Contact ConfigurationSPST
Contact MaterialStainless Steel
Contact Rating50mA 24VDC
Current Rating0.05A
IlluminatedYes
Illumination ColourGreen
Illumination Voltage4V
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Temperature-30°C to +70°C
Panel Cut Out22.2mm
Panel Thickness1-6mm
Product SeriesAV
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating24VDC
  • Description

Green LED Momentary 22mm Tactile Vandal Push Button Switch NO AV03C7L3D2403E

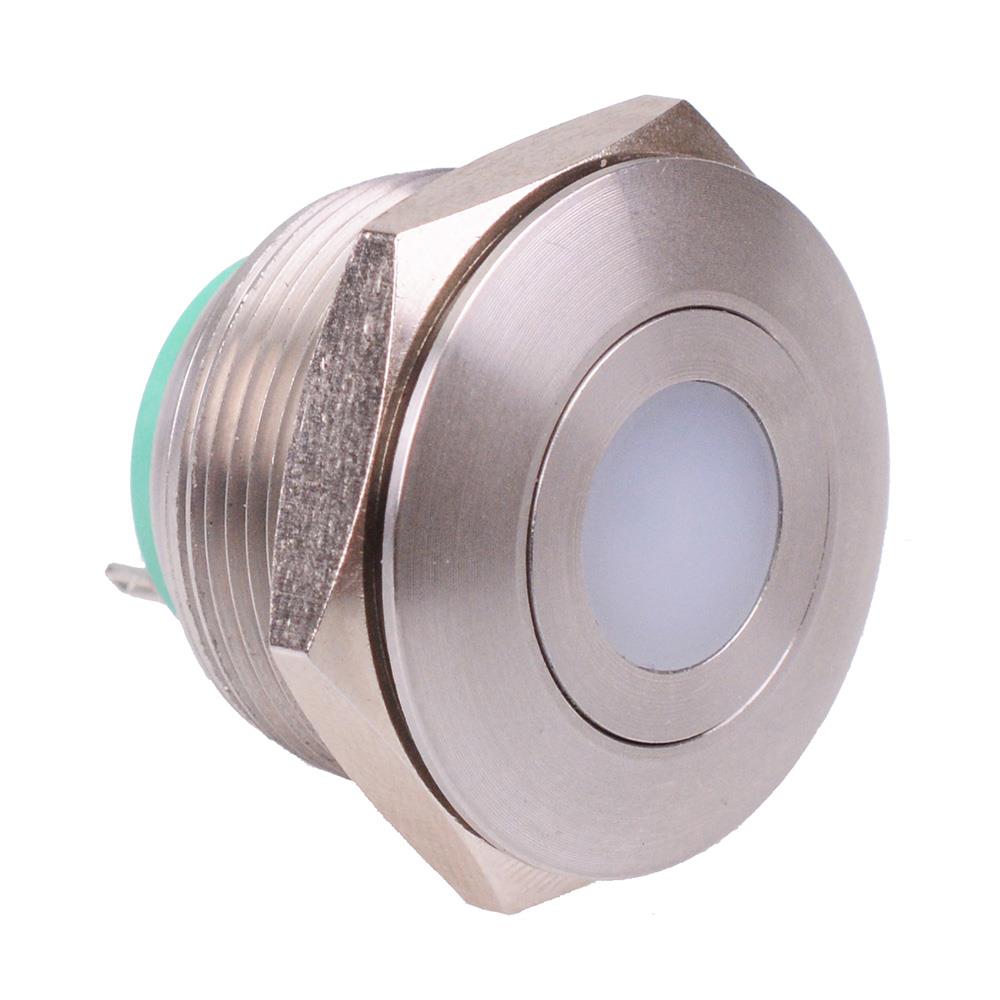

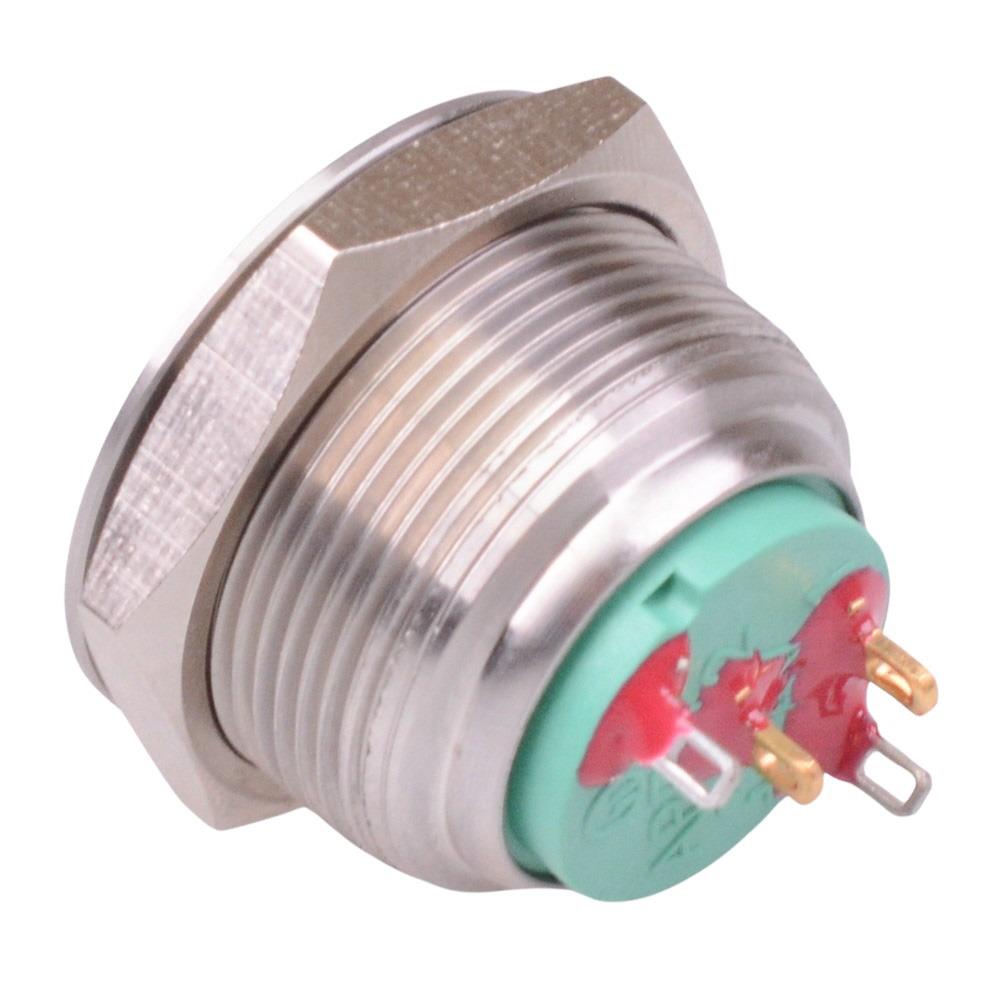

The AV03C7L3D2403E is a green illuminated 22mm momentary anti vandal push button switch featuring SPST-NO contacts and solder terminals. The switch features a stainless steel body and is suitable for a wide range of applications.

  • Green LED
  • LED voltage: 4V
  • Off-(On) momentary function
  • SPST contacts
  • Stainless steel body
  • Tactile feedback
  • Panel cut-out: 22.2mm
  • Panel thickness: 1-6mm
  • Screw terminals
  • Rating: 50mA 24VDC
  • AV03C7L3D2403E Green LED Momentary 22mm Tactile Vandal Push Button Switch NO

    AV03C7L3D2403E Green LED Momentary 22mm Tactile Vandal Push Button Switch NO
