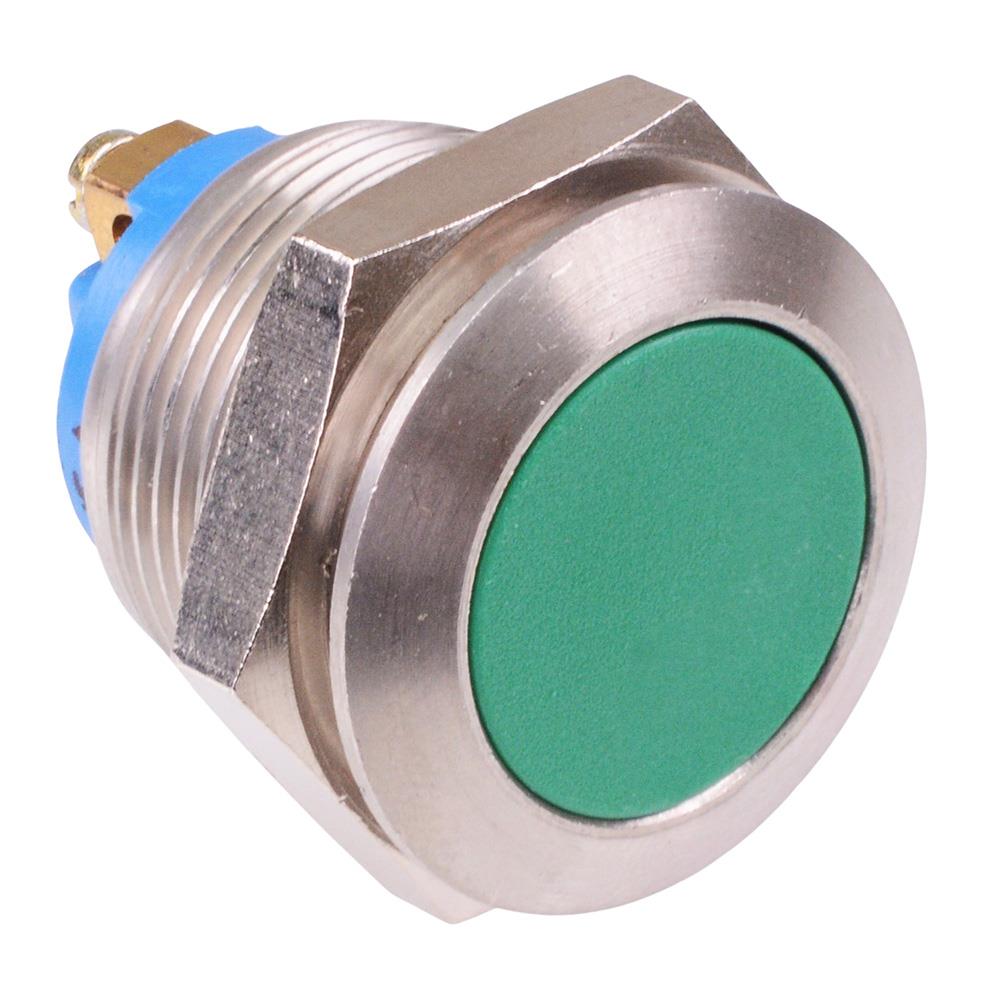

AV091003A943 Off-(On) Momentary 19mm Flat Anti Vandal Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Green
Contact Configuration	SPST
Contact Rating	4A 12VDC
Current Rating	4A
Illuminated	No
Electrical Life	500,000 Cycles
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 70°C
Panel Cut Out	19.2mm
Panel Thickness	1-11mm
Product Series	AV
Switch Operation	Off-(On)
Terminal Type	Screw
Voltage Rating	12VDC

Description

The AV091003A943 is a 19mm anti vandal push button switch with momentary SPST-NO contacts and green flat actuator. The switch features a stainless steel body and screw terminals making it suitable for applications requiring a reliable long-lasting switch including security.

SPST-NO contacts

Off-(On) momentary function

Panel cut-out: 19.2mm

Screw terminals

Rating: 4A 12VDC

Panel thickness: 1-11mm

Material: stainless steel
