AV09C703D940KX2542-1 Yellow Call 19mm Momentary NO Vandal Push Button Switch SPST

AV09C703D940KX2542-1 Yellow Call 19mm Momentary NO Vandal Push Button Switch SPST
AV09C703D940KX2542-1 Yellow Call 19mm Momentary NO Vandal Push Button Switch SPST
AV09C703D940KX2542-1 Yellow Call 19mm Momentary NO Vandal Push Button Switch SPST
AV09C703D940KX2542-1 Yellow Call 19mm Momentary NO Vandal Push Button Switch SPST
AV09C703D940KX2542-1 Yellow Call 19mm Momentary NO Vandal Push Button Switch SPST
0 reviews - Write a review
from
$69.48
Ex Tax: $69.48
5 or more $61.83
10 or more $57.66
25 or more $54.19
50 or more $51.41
  • Stock: In Stock
  • Model: SCJ013881
  • SKU: SCJ013881
Products Sold: 0
Product Views: 25
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourYellow
Contact ConfigurationSPST
Contact MaterialGold Plated Brass
Contact Rating50mA 24VDC
Current Rating0.05A
IlluminatedNo
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Temperature-30°C to +70°C
Panel Cut Out19.2mm
Panel Thickness1-6mm
Product SeriesAV
Switch OperationOff-(On)
Terminal TypeScrew
Voltage Rating24VDC
  • Description

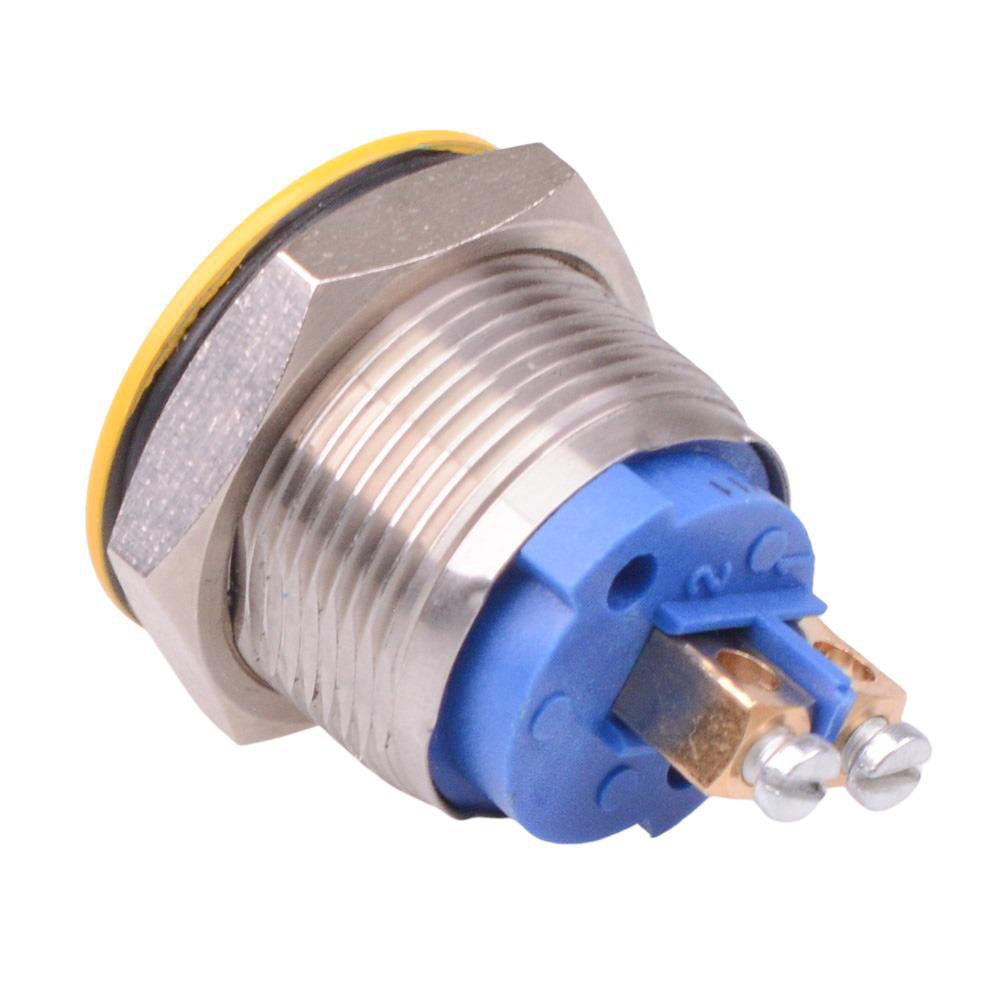

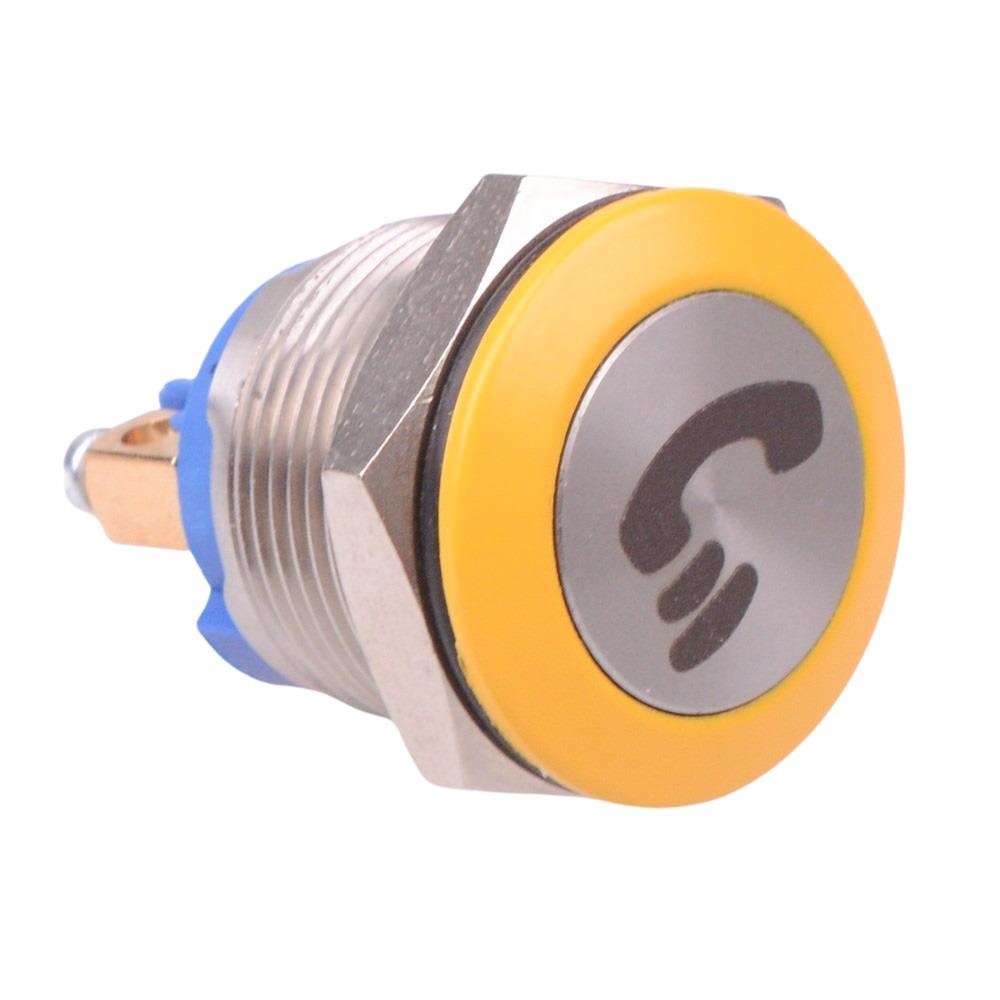

The AV09C703D940KX2542-1 is a yellow 19mm momentary anti vandal push button switch featuring SPST contacts and screw terminals. The switch features a stainless steel body and is suitable for a wide range of applications.

  • Call symbol
  • Off-(On) momentary function
  • SPST contacts
  • Stainless steel body
  • Tactile feedback
  • Panel cut-out: 19.2mm
  • Panel thickness: 1-6mm
  • Screw terminals
  • Rating: 50mA 24VDC
  • IP65 front panel sealing
