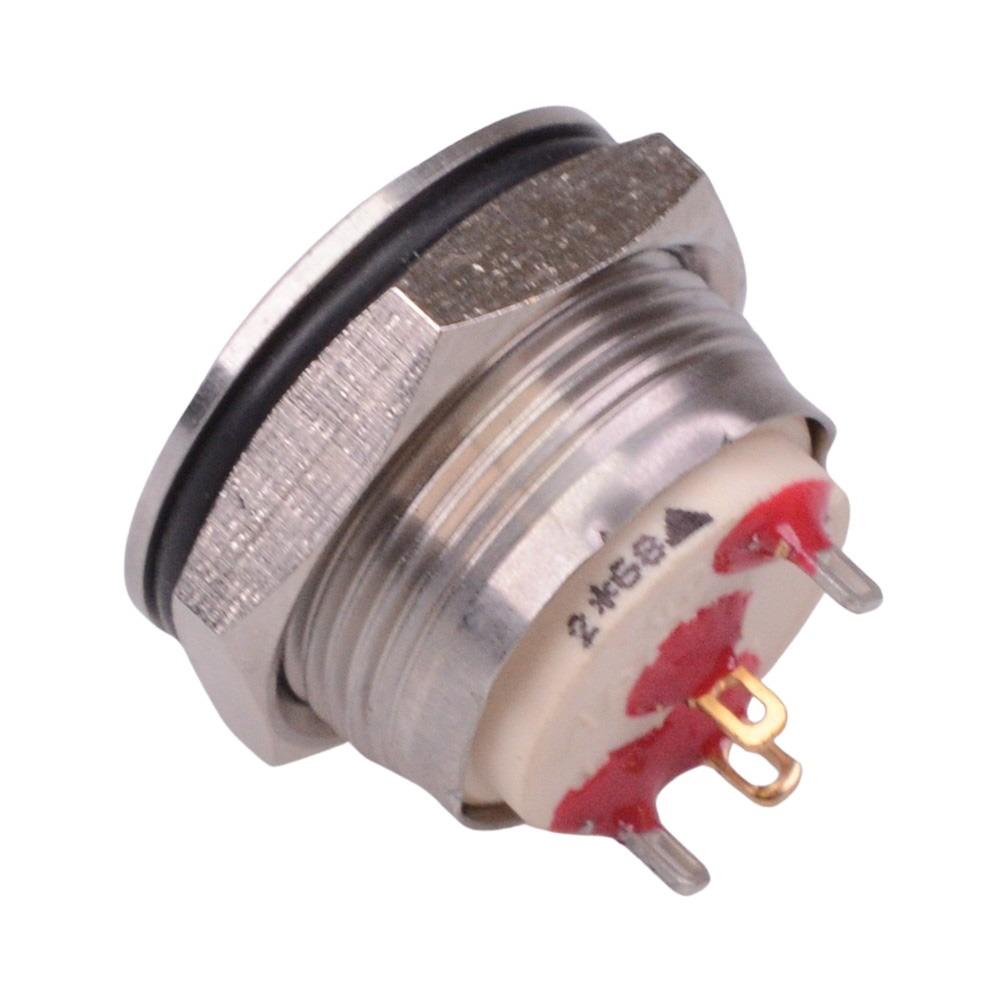

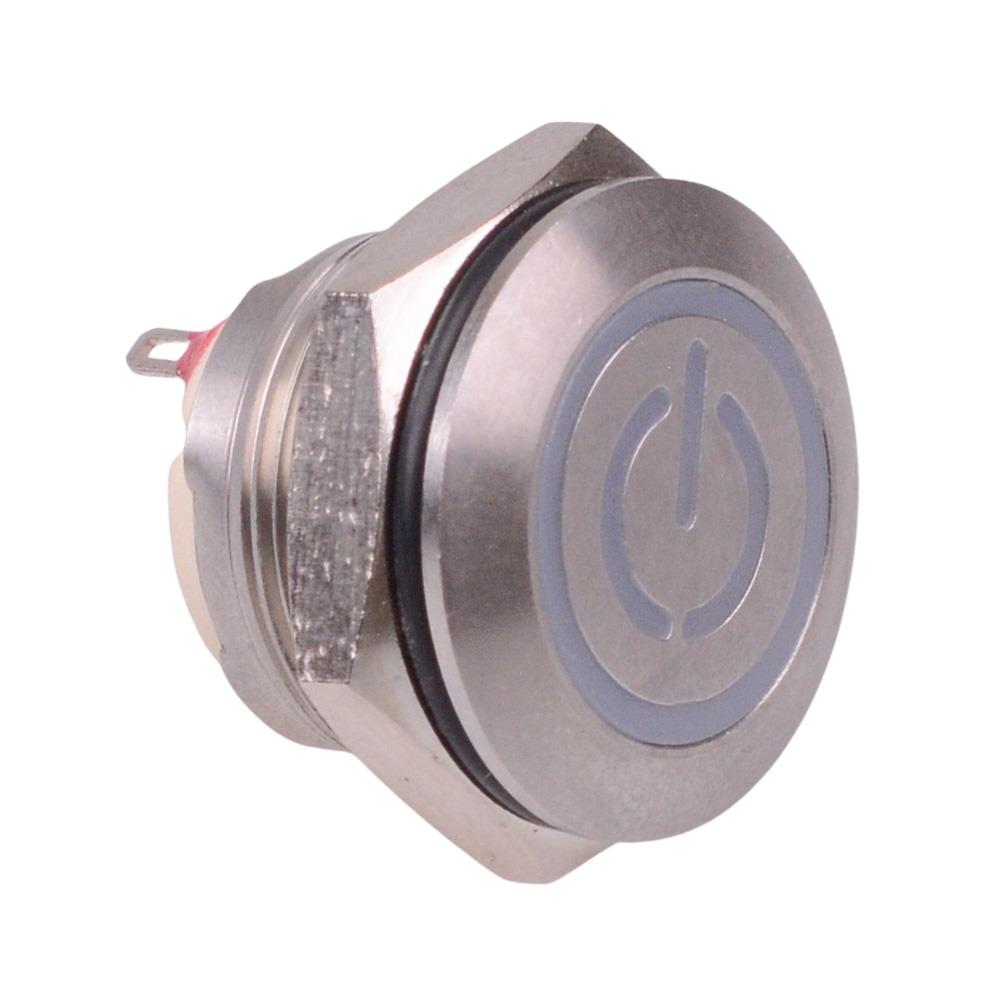

AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67

AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67
AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67
AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67
AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67
AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67
0 reviews - Write a review
from
$29.93
Ex Tax: $29.93
5 or more $26.64
10 or more $24.83
25 or more $23.34
50 or more $22.14
  • Stock: In Stock
  • Model: SCJ013892
  • SKU: SCJ013892
Products Sold: 0
Product Views: 20
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourWhite
Contact ConfigurationSPST
Contact MaterialGold Plated
Contact Rating50mA 24VDC
Current Rating0.05A
IlluminatedYes
Electrical Life1,000,000 Cycles
Illumination ColourWhite
Illumination Voltage3.3V
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Temperature-30°C to +70°C
Panel Cut Out19.2mm
Panel Thickness1-6mm
Product SeriesAV
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating24VDC
  • Description
The AV9SLD2487011K is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • Momentary NO/NC contacts
  • White LED illumination
  • LED voltage: 3.3V
  • Flat actuator with power symbol
  • Long life
  • Solder terminals
  • Gold plated contacts
  • Stainless steel brushing
  • IP67 protection level
  • Panel cut-out: 19.2mm
  • Rating: 50mA 24VDC
  • Panel thickness: 1-6mm
  • Dimensions: 18.0 x 22.0mm (length x diameter)

    • AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67

    AV9SLD2487011K Momentary 19mm White Power LED illuminated Vandal Push Button Switch IP67
