Auto Analysis Tools BA101 12V Digital Lead Acid Battery Tester Car Battery Analyzer
from
$17.50
Ex Tax: $17.50
100 or more $17.00
500 or more $16.80
1000 or more $16.50
- Stock: In Stock
- Model: SCJ007405
- Dimensions: 115.00mm x 72.00mm x 18.00mm
- SKU: SCJ007405
Products Sold: 0
Product Views: 173
Ask a Question About This Product
- Description
Specification
Brand Name | Socoje |
Test Voltage | 12V |
Application | Check & Analyze 12V Lead-acid Battery |
Test Range | 100-2000CCA |
Battery Standards Supported | AH, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB |
Test Cranking System | Cranking time, voltage and status |
Test Charging System | Load voltage, unloaded voltage, ripple status, charging system status |
Real-time Voltage Waveform | Features "Quick Test" with AH value |
Product function | Print data |
Certification | CE, FCC, ROHS, ISO9001 |
Weight | 200g |
Size | 115*72*18mm |
Working Temperature | -10 to 60°C (14 to 140 F°) |
Input voltage range | 9V~15V |
Suitable for | DIY users；Battery service station；Garage/workshop；Tool store；Vehicle/Battery manufacturer. |
Multiple Battery Standards Support.
* It can test by AH and CCA values but also applies to other test standards such as BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
* If your battery standard is AH standard, you can input the AH value to test in the "Quick Test" menu.
* If your battery is CCA or another standard, please input the CCA or other value to test in the "Battery in Vehicle" or "Battery out of vehicle" test menu.
* If your battery standard is AH standard, you can input the AH value to test in the "Quick Test" menu.
* If your battery is CCA or another standard, please input the CCA or other value to test in the "Battery in Vehicle" or "Battery out of vehicle" test menu.
Print Data Steps.
1. Before using the print data function, it is necessary to connect the tool to a computer via the USB cable. Once ready, please insert the CD to the computer.
2. Install the USB driver first.
3. Open the print software, and choose the COM Port NO.
4. Then choose the function of print data to start printing.
2. Install the USB driver first.
3. Open the print software, and choose the COM Port NO.
4. Then choose the function of print data to start printing.
Product Description
About BA101：
It tests the battery's CCA (or AH) value, charge (%), voltage (v), internal resistance (Ω), rated, and battery health (%), etc. After a comprehensive analysis of the data, it provides an accurate assessment of whether a battery is good or needs to be replaced. The test result is shown directly by text prompt, giving an accurate display of the battery with percentage and numerical values.
2.Much wider test range (100-2000 CCA) and more accurate than its competitors. Test results are based on JIS, EN, DIN, SAE, CCA, BCI, GB, CA, MCA and IEC standards.
3.Provides an opportunity to check the charging status of the alternator and the starter. Vehicle charging system test is also available, including load voltage, unloaded voltage, ripple status and charging system status.
4.The BA101 Battery Tester is well built and features a large LCD display with white backlighting and adjustable contrast that shows test results directly. No internal batteries are required and power is drawn directly from the 12V battery.
5.It comes with a cable and is made of a very thick, flexible insulator that is much safer than others on the market. There are 4 buttons on the BA101. The up/down button is used to scroll through the menu. The Enter and Exit buttons are used to navigate back and enter the menu.
6.Our product supports four versions of customization, and each version corresponds to a different language：
Asian version.：English , Chinese, Japanese, Korean
Western European ： English, French, German, Spanish, Italian, Polish
Northern Europe.：English, Finnish, Swedish, Danish, Norwegian, Dutch
Russian version： English, Russia
Northern Europe.：English, Finnish, Swedish, Danish, Norwegian, Dutch
Russian version： English, Russia
The BA101 Functions:
1.Test Results: Good or Replace
2.Internal resistance value (m)
3.Life in percentage (%)
4.Cranking system
5.Charging system
6.Operating Parameters
7.System voltage: 12 Volts
8.Input voltage range: 9V~15V
9.Power requirements: No internal batteries required
10.Capacity: Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating
The BA101 Advantages:
1.Simple and easy to use
2.Tests batteries on and off the vehicle
3.Accurate results in milliseconds
4.Battery life analysis
5.Analysis results: Good or Replace
6.Large easy to read LCD screen
7.Test results based on JIS, EN, DIN, SAE and IEC Standards
8.Quick test - inputs battery volume (AH), then shows battery status
9.Vehicle cranking system test - cranking time, voltage and status
10.Store the testing result and the print function
11.Vehicle charging system test—load voltage, unloaded voltage, ripple status, and charging system status
Working Environment Requirement:
Working Temperature.: -10 to 60°C (14 to 140 F°)
Storage Temperature:-20 to 70°C (-4 to 158 F°)
It is applicable for automotive manufacturers, automotive maintenance and repair workshops, automotive battery factories, automotive battery distributors, and educational organizations, etc.

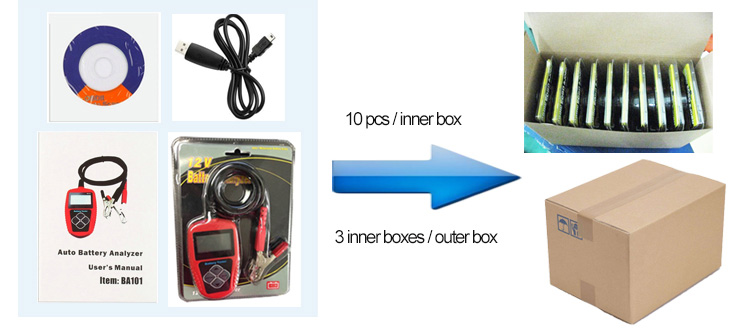

Blister packing, color box, or as per customer requests：
Product: 11*7*1.5CM ； Weight: 0.2kg
Blister package
Dimensions: Length: 240mm * Width: 170mm * Height: 40mm
Weight: 350g10pcs/inner box
Inner box dimensions: Length: 395mm * Width: 175mm * Height: 240mm
Weight: 4kg30pcs/ctn
Inner box dimensions: Length: 550mm * Width: 400mm * Height: 265mm
Net Weight: 12 KG
Gross Weight: 13 KG20FCL: 15000pcs 40GP: 32640pcs 40HC: 41100 pcs
