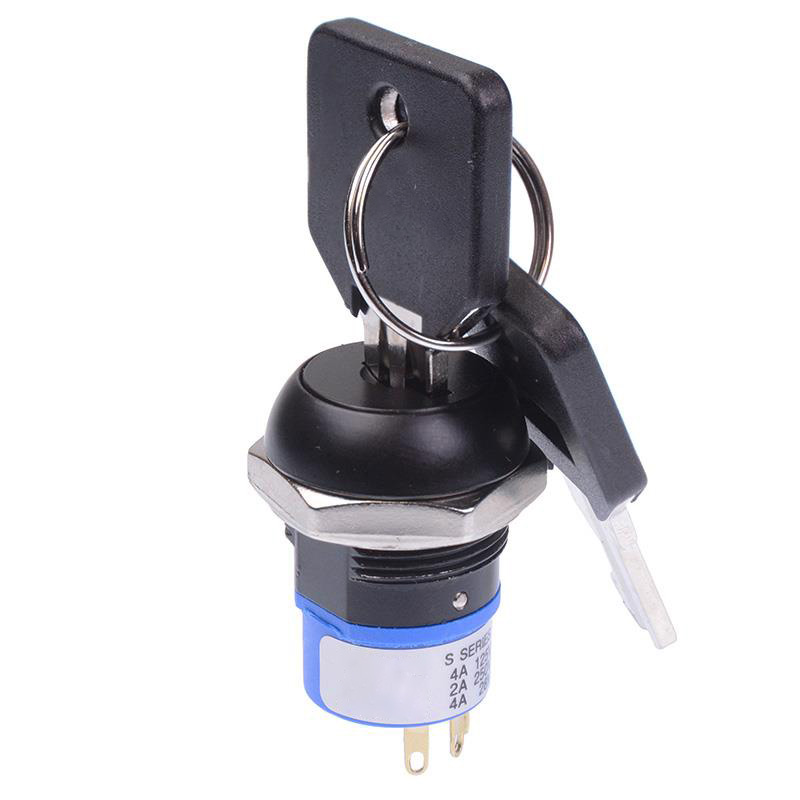

Black On-On 2 Way 19mm Key Switch SPDT 4A LK6NGB126M3

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPDT
Contact Material	Gold Plated Copper Alloy
Contact Rating	4A 125VAC / 28VDC, 2A 250VAC
Current Rating	4A @ 125VAC / 28VDC
Electrical Life	6000 Cycles
Key Index Angle	90°
Key Withdrawal Position	1
Mounting Style	Panel Mount
Number of Positions	2
Protection Level	Gold Plated Copper Alloy
Operating Temperature	-30°C to +85°C
Panel Cut Out	19mm
Product Series	LK
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

The LK6NGB126M3 is a high quality key operated switch from the LK series manufactured by socoje. The switch features SPDT contacts and 2 maintained positions with key withdrawal in position 1. The switch has a black finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

2 positions

Maintained switching

SPDT contacts

Black finish

Key withdrawal in position 1

Panel cut-out: 19mm

Indexing: 90°

Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC

Mechanical and electrical life: 6000 cycles at full load

Dimensions: 28.8 x 22mm (length x diameter)
