Sell ​​high-quality, high-quality ER32 chucks of various sizes (7/32", 17/64''), if you can't find the size you want, please contact us directly  Email: sales@socoje.com .

Feature：

1. Made of special 65Mn alloy steel and hardened to HRC 46-50.

2. It can be widely used for boring,milling,drilling and tapping operation.

3. All critical collet surfaces are precision ground for accurate fit.

4. Runout tolerance within 0.0003" at 4xd position.

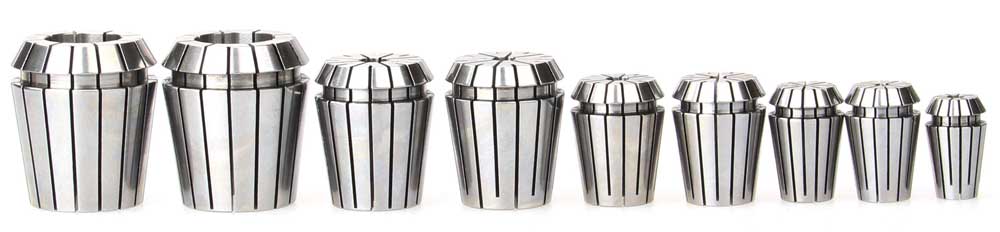

The following schematic diagrams and product pictures are only for reference.

ER32 7/32



◆ Made from 65Mn alloy steel and hardened to HRC 46-50

◆ All fractional size is true imperial size, not a metric conversion size



ER32 7/32



◆ All collets are checked its runout individually on 4 contact points by a high tolerance bench marked testing rod

◆ On size 1/8" and larger the runout is .0003"; under size 1/8 the runout is .00059"

◆ The size of the collet is the largest size it can hold and able to hold anything smaller within the collapsing range



ER32 7/32



This collet size is true fractional size, not a metric converting size and the surface on this collet has been

specially treated to increase its tool life.  Runout is .0003".

ER32 7/32

Condition Brand-New
Brand  Socoje
SKU SCJ005624
Collet Series ER32
Collet Grip Range 0.2187"-0.1787"
Size 7/32"
Diameter(D1)  1.29"
Overall Length (L) 1.58"
Runout ≤0.0003"
Net Weight 4.50 oz
Gross Weight

5.00 oz
