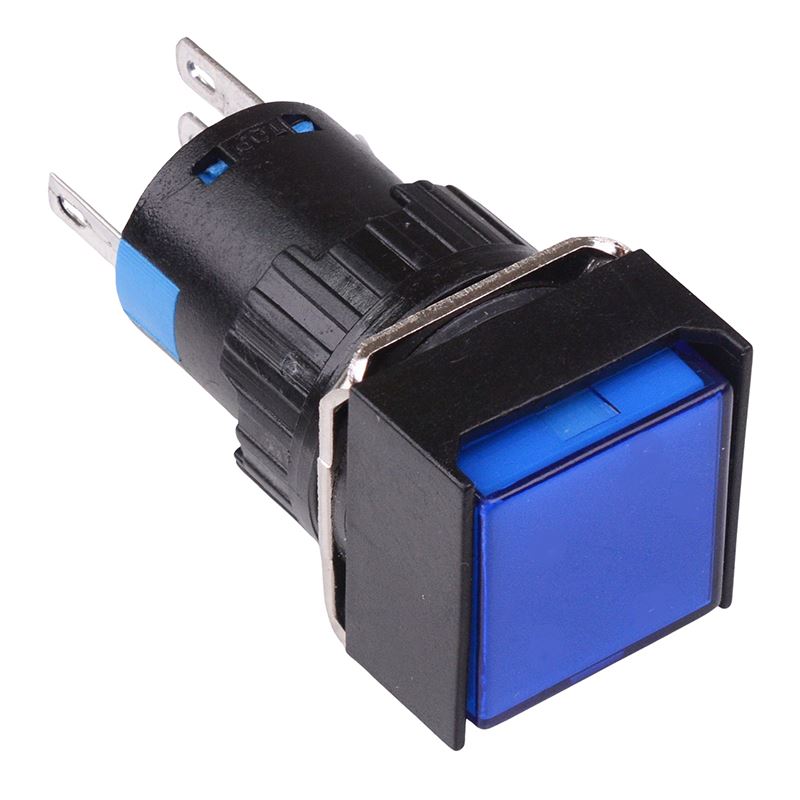

Blue Square Momentary 16mm Push Button Switch NO/NC 12V

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Blue
Contact Configuration	SPST
Contact Material	Silver Plated
Contact Rating	5A 250VAC/DC
Current Rating	5A
Illuminated	Yes
Electrical Life	100,000 Cycles
Illumination Colour	Blue
Illumination Voltage	12VDC
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +55°C
Panel Cut Out	16mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Blue momentary push button switch featuring a square illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, automotive etc.

Blue 12V illumination

NO/NC contacts

Solder terminals

Maximum voltage: 250VAC/DC

Maximum current: 5A

Panel cut-out: 16mm

Protection level: IP65

Button size: 15.4 x 15.4mm

Dimensions: 40.5 x 18 x 18mm
