Chamfering Machine with Chamfer Mill, 45 Degree
from
$977.85
Ex Tax: $977.85
- Stock: In Stock
- Model: SCJ009834
- SKU: SCJ009834
Products Sold: 0
Product Views: 209
Ask a Question About This Product
- Description
Brief
Cost-effective chamfering machine with optional chamfering range 0~3 mm/ R1-R4 angle/C3 angle, chamfering angle 15°~45°, power supply 380V, motor power 550W. The deburring and chamfering machine is suitable for workpieces without heat treatment, such as the chamfering of various molds and mechanical parts.
Description
The deburring/chamfering machine uses a side chamfer mill for working, with the corresponding speed 2800rpm/3000~6000rpm adjustable. The chamfering machine has the advantages of simple operation, easy adjustment, economic reliability and high efficiency.
Features
- Deburring/chamfering machine is suitable for batch processing of unheated workpieces, such as various molds and mechanical parts. Precise chamfering and good surface roughness.
- No clamping, simple operation, regular chamfering, economical and reliable, and greatly improve efficiency.
- The deburring/chamfering machine model SCJ009834D can chamfer the R angle and C angle.
Specification
| Model | SCJ009834 | SCJ009834D |
| Speed | 2800rpm | 3000~6000rpm |
| Chamfering Range | 0~3 mm | R1-R4/C3 |
| Dimension | 53.5*38.5*30cm | 40*30*22cm |
| Weight | 38 kg | 27 kg |
| Chamfering Angle | 15°~45° | |
| Rated Voltage | 380V | |
| Motor Power | 550W | |
| Accessories | Blade*9 Cutting Head*1 Allen Wrench*3 | |
| Warranty | 1 year | |
Structure Diagram

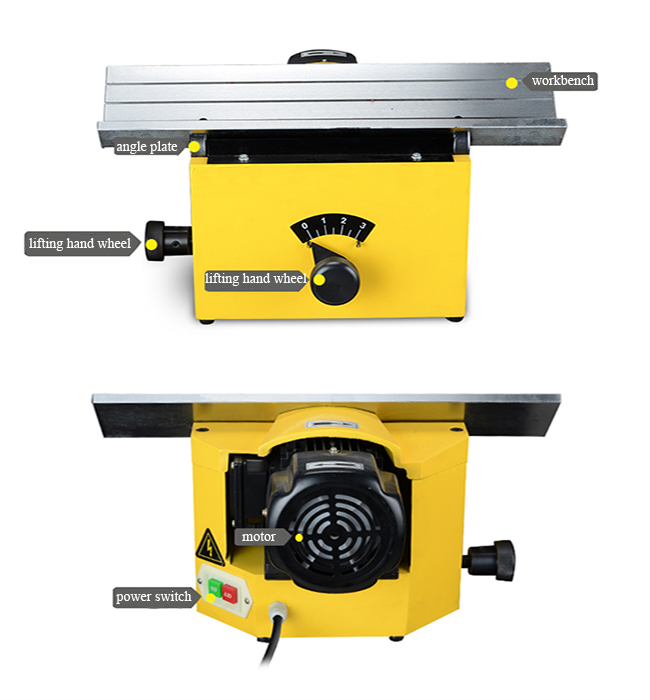

R300

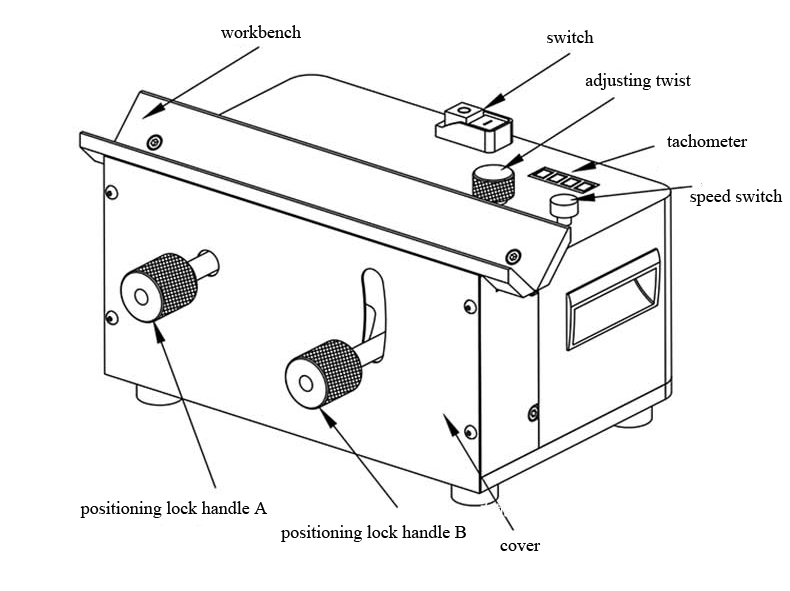

R300D
Applications
The deburring/chamfering machine is suitable for large workpieces of any length, unheated and not easily moved, such as chamfering in the manufacturing process of various molds and mechanical parts. In addition, it is also suitable for batch processing of small workpieces, deburring for metal pipes, metal plates, molds, and mold frames, and manufacturing of mechanical equipment and hardware parts, etc.
Tips: How to maintain the chamfering machine?
- After each shift, clean up the iron filings left on the machine tool to keep the machine tool clean.
- Observe the tightness of the belt and adjust it if necessary.
- Frequently check whether the fastening screws of each part are loose.
- If the blade is worn or damaged, adjust the blade to use other cutting edges to rotate an angle until it is firm. If the 4 cutting edges of the blade are worn, just replace them.
